Owner's manual

7

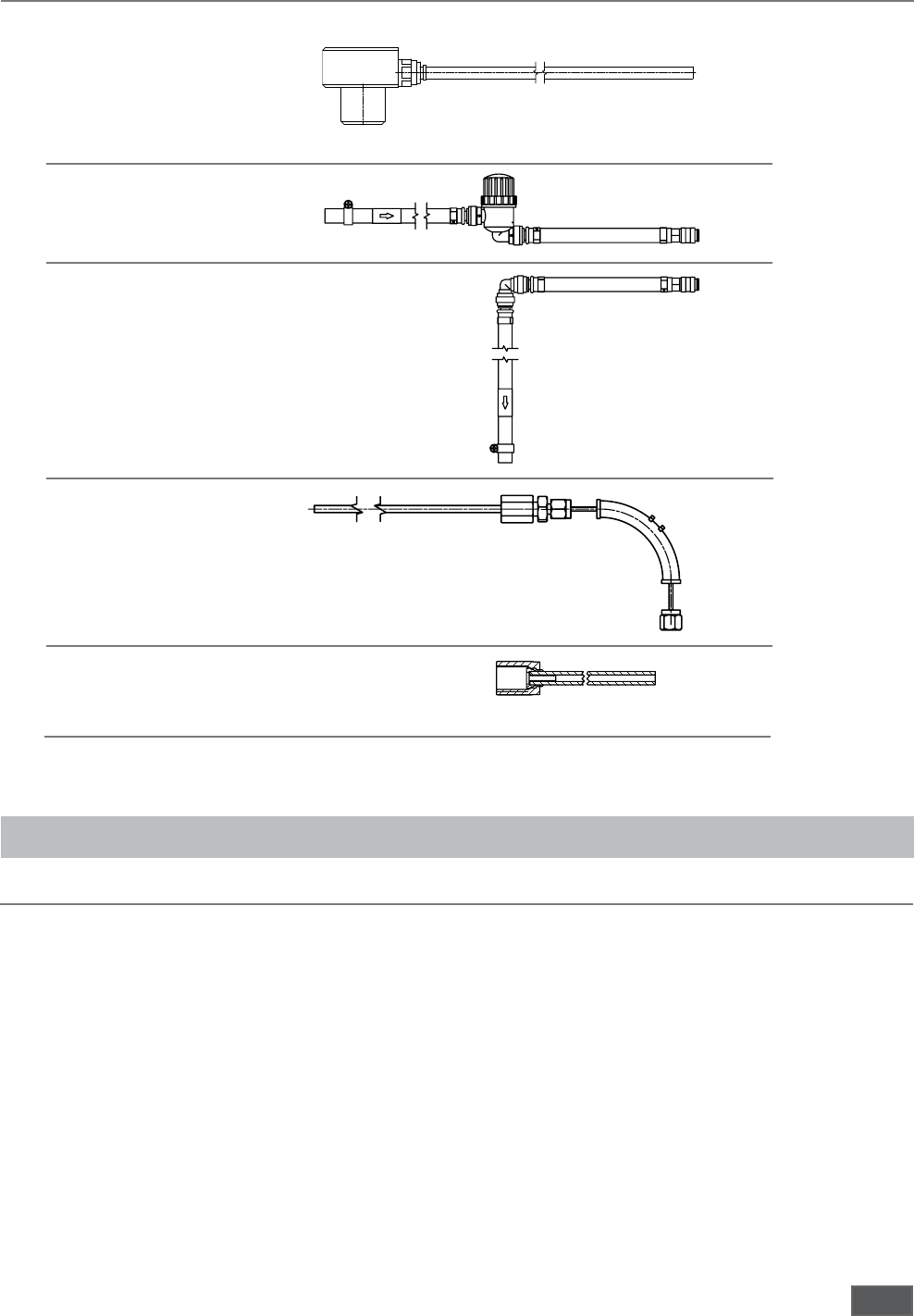

Hoses
 • Discharge hose
 • Inflow conduit
 • Return conduit
 • Venting hose
 • Connection tube
SW8
Cooler
C1
C1
Cooler
C1
C1
(O)
C1
(degas)
(water in)
(water out)
(overflow)
Filtersieb 10m
Cooler
Exhaust
air
Pressure reducer C29
Adapter
SW10
Commissioning
Place of installation
A constant ambient temperature is an important requirement
for ensuring the high measuring accuracy of the system. The
following conditions must therefore be fulfi lled at the place of
installation:
• Nodirectsolarradiation
• Nodraughts(e.g.besidewindows,doors,airconditioning)
• Sufficientdistancetoradiatorsandotherheatsources
• Theminimumdistancebetweenthewallandtherearside
of the device must be at least 25 cm.
• Thesystemmustnothavelaboratoryhardwaresuchas
shelves, wire ducts, ring lines, etc. installed above it.
• The(constant)roomtemperatureshouldbearound
20 °C ... 25 °C.
• Thesystemmustbesetuponahorizontalsurface.
For operation of the system the following must be available at the
place of installation:
- A power supply corresponding to the nameplates on the system
components,
- An oxygen supply (99.95 % pure oxygen, quality 3.5; pressure
30 bar) with pressure gauge.
A shut-off valve for the oxygen supply must be installed. Observe
the instructions on handling oxygen given in the chapter „Safety
instructions“.
Observe the instructions on handling oxygen given in the chapter
„Safety instructions“. Please read these operating instructions
carefully. IKA
®
consider themselves responsible for the safety,
reliability and performance of the appliance only when
• thedevicehasbeenoperatedinaccordancewiththe
operating instructions
• thespecificationsfortheplaceofinstallationhavebeenmet.
max. 1,5 bar
C1 092014
