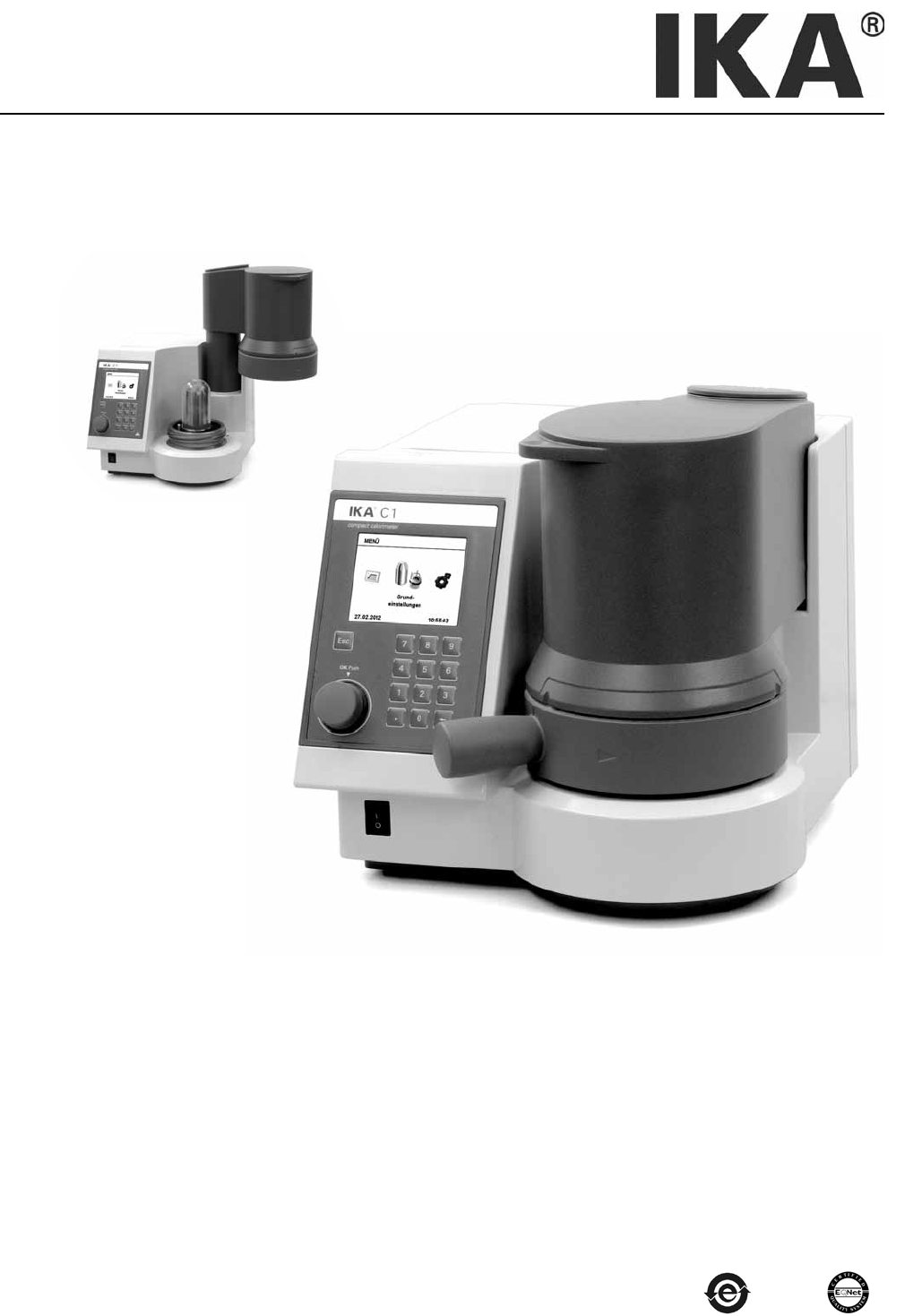

20000004725 C1_092014 IKA® Calorimeter C1 Operating instructions EN Reg.-No.
CE - Declaration of Conformity EN We declare under our sole responsibility that this product is in compliance with the regulations 2006/95/EG; 2004/108/EG; 97/23//EG (Article3, 3) and 2011/65/EU and conforms to the standards or standardized documents: EN 61010-1:2010 and EN 61326-1:2006. Explication of warning symbols General hazard. DANGER This symbol indicates information which is essential for the safety of your health. Failure to observe this information can cause damage to health and injuries.
Contents Page Page CE - Declaration of Conformity Explication of warning symbols User notes Contents Safety instructions Correct use 02 02 02 03 04 05 Measurements 25 Transportation, Storage 06 Scope of delivery Description of the system components 06 06 Commissioning 07 Default settings Settings 30 30 System properties Transport and Storage conditions Unpacking Hoses Place of installation Cooler connection Venting hose connection Drain hose connection Oxygen supply connection Powe
Safety instructions Read the operating instructions in full before starting up and follow the safety instructions. Keep the operating instructions in a place where they can be accessed by everyone. Ensure that only trained staff work with the appliance. The calorimeter C1 may only be used for the determination of calorific value of solid and liquid materials according to national and international standards (eg DIN 51900, BS 1016 T5, ISO 1928, ASTM 5468, ASTM 5865 and ASTM 4809).
We recommend that you send the C1 calorimeter system to our factory for inspection, and if necessary, repair after 1000 tests or after one year or sooner depending on use. For the purposes of these operating instructions a technical expert is someone 1. who guarantees to conduct the tests properly on the basis of his training, knowledge and experience gained through practical work, 2. who is suffi ciently reliable, 3. who is not subject to any instructions in terms of the test activity, 4.
Transportation, Storage Transport and Storage conditions The system must be protected against mechanical impact, vibrations, dust deposits and corrosive ambient air during transportation and storage. It is also important to ensure that the relative humidity does not exceed 80%. The appliance must be completely emptied before storing and transportation. In case of repair the device has to be cleaned and free from any materials which may constitute a health hazard.
Hoses C1 • Discharge hose (overflow) Cooler • Inflow conduit Filtersieb 10μm (water in) C1 Cooler max. 1,5 bar • Return conduit C1 (water out) Cooler • Venting hose Exhaust air C1 (degas) SW8 • Connection tube Pressure reducer C29 Adapter SW10 C1 (O2) Commissioning Place of installation A constant ambient temperature is an important requirement for ensuring the high measuring accuracy of the system.
Cooler connection 1. Connect the inflow pipe to the quick coupling to the „water in“ (on the calorimeter) port. Connect the other end of the radiator side of „water out“ and tighten the hose clamp. 2. Connect the return pipe to the quick coupling to the „water out“ (on the calorimeter) port. Connect the other end to „water in“ (on the cooler) and tighten the hose clamp. Inflow pipe Return pipe Venting hose connection 1.
Power supply unit connection The desktop power supply (scope of delivery) must not be placed flat on the laboratory table. It must be protected against moisture and water penetration and must not be wet. 1. Connect the power supply connecting cable (24V) NOTE: Note the correct insertion position (flat side of the connector pointing to the right). 2. Tape the supplied rubber feet to the power supply. Place the power supply on the rubber feet.
3. Removing the inner vessel base 2. Removing the inner vessel Inserting the inner vessel takes place in the reverse order h h Q 4. Switch on the device Open the device and switch the device on and off with the front power switch.
Dialog box The dialog boxes are equipped with the following elements: Menu-heading Selected menu item (blue) Editable input field (yellow) Scrollbar Status field Menu options resp. user notification Menu-heading: The name of the currently displayed window • ‚Back‘: Closing a info window without information input values and return to the parent menu. Also possible using [ESC]. • ‚Accept‘: Closing a window. Changes made are saved by the system. • ‚Start‘: Starting a measurement.
System start Switching on the system (in the open state) After switching on the calorimeter, first the initial screen with the IKA ® logo, the calorimeter-type and the software and firmware version. INFO: Upon initial system start, the menu language must be selected.
Pressure test A pressure test must be performed after a decomposition vessel has reached or exceeded the recommended number of ignition cycles. Once the pressure test has been performed a release code can be entered to enable the unit to be used for further measurements. The warning message will then disappear. The enable code can be in the following screen, by pressing the „Next button“ to be entered. INFO: Using the unit may be further worked.
Heating detected If the use of heating selected C1.20 (accessories) in the Setting menu, but this is not recognized, the following user information is displayed. NOTE: Check that the heater is correctly connected and turned on.. Factory settings As delivered, the C1 calorimeter system is configured as follows: Settings: • • • • • • Menu: Color palette: Key tones: Date device: Time device: Units: animated white on 01.01.
Corrections Fuel sample Heat quantity from: External energy Burning aid Igniter Formation of Formation of sulphuric acid nitric acid As determined by the system, during a combustion experiment, not only is heat generated from the combustion of the sample, but heat also occurs in the form of extraneous energy. This may fl uctuate considerably in proportion to the heat energy of the fuel sample.
• Under the conditions that prevail during calorimetric measurements, sulfur and nitrogen un-dergo combustion and form SO2, SO3 and NOX. Sulfuric and nitric acid arise in combination with the water resulting form combustion. Heat of solution is also generated. This heat of solution is taken into consideration in calculating the gross calorific value.
Overview Main menu The user has two display modes are available. Animated view List view Measurements The following submenus are available: • • • • • • New measuerement Last result System test Measurement archive Calibration archive Memory overview Default settings The following submenus are available: • • • • • • • • • • • • C-value IB1 ID IB1 C-value IB2 ID IB2 Ref. cal. value Ho Comb. cruc. Start temperature QExtern 1 QExtern 2 O2 rinse Cool Down Extend.
Maintenance The following submenus are available: • Change seal • Test stirrer • O2 System blow • Servo up • Servo down INFO: When performing maintenance programs, the system must be open ! Information The following informations are available: • • • • • • • • Software Firmware Serial number Service Pressure test Ignitions Next test Support Preparing and performing measurements The term „measurements“ below refers to both the measurements to calibrate the calorimeter system (calibration measurements) and
Input window NEW MEASUREMENT Select and confirm the menu item „Sample weight“. Enter the sample weight with numeric keypad and confirm. INFO: A distinction is made between the use and non disposable cup. Use of disposable crucible can be selected in Settings " Accessories. INFO: For automatic input of the weight may be a connected scale can be used INFO: The inputted weight values are checked for permissibility.
To increase the service life of wearing parts (O-rings, seals, etc.) it is advisable to always work with a water template. Generally, the test sample must be selected so that the temperature elevation during the measurement is below 10 K and the temperature increase of the calibration comes close (max. energy input: 40.000 J). Such exposure may damage the calorimeter. To determine the potential energy initially very small sample weights (approx. 0.2g) must be chosen when working with unknown substances.
Measurement procedure During a measurement, different phases are passed through. These phases are described below • Phase 1: Filling the calorimeter with water NOTE: After switching on the calorimeter C1 or after a break of 2 hours during the filling of the calorimeter C1 is still carried out an intermediate emptying (H2O - purge). Once the water sensor detects water, the stirrer is switched on. After a short waiting period begins phase 2.
• Phase 3: Filling with oxygen • Phase 4: Stabilizing the temperature and preliminary • Phase 5: The system ignites and thereby starts the main test INFO: An ongoing measurement can be stopped by selecting „Cancel“ at any stage • Phase 6: Post test • Phase 7: Venting, result is displayed • Phase 8: Cooling (if option under the main menu " Basic Settings " cooling is enabled) and water emptying NOTE: With the „cooling“ option, the energy is absorbed (by the combustion in the calorimeter entered).
• Result Display Phase 9: The system is completely emptied, and can be opened. The inner vessel can be taken down. Through a visual check is necessary to ensure that the sample in the crucible was combusted completely. Cleaning the inner vessel After each combustion are all parts of the inner vessel that come in contact with the combustion products to clean condensate. It is sufficient to parts with an absorbent, lint-free cloth to wipe off.
Using a scale About Settings " accessories can be selected using a scale. If this option is selected, the displayed on the scale weight is automatically transmitted to the selected weight input field. Depending on type of balance this function may need to be be activated on the scale or the Transfer button must be pressed. This applies both to the initial sample weight of the sample and the weight of the disposable crucible.
Cancel a measurement An ongoing measurement can be canceld at any time. After ignition, the system waits for 1 minute with the emptying, as otherwise there is a risk that the sample is not completely burned. After confirm the cancellation, the system automatically emptied and bring it to a safe state. The calorimeter can be opened and you can return to the main menu.
System test Functional testing of the system Use for the system test one or two benzoic acid tablets. Alternatively, however, for example, an appropriate amount of sugar or an alternative fuel to be used. The system test is used to test the functionality of the overall system. For this purpose all switching operations are carried out, which take place in a normal measurement. If the system test performed without error, the functionality is guaranteed.
Measurement archive: Edit By clicking on the „EDIT“ button in the list view another screen for selecting the edit mode. Print: • Measurements can be selected and printed Delete: • Measurements can be selected and deleted Delete all: • All measurements are deleted By selecting one of these menu items to the list view is displayed again. As a heading of the screen active editing is displayed. The „EDIT“ button is replaced with an „OK“ button.
Measurement archive: Delete all By clicking the „OK“ button, the following dialog appears: By confirming with „OK“, all measurements will be deleted. Calibration archive After selecting the appropriate archive is displayed. INFO: In each calibration archive up to 15 calibrations can be stored. A calibration performed is automatically added to the appropriate archive Displays the line number, the name of the calibration and the result (C value).
Calibration archive: C-Value selection Click on the individual calibrations they are selected and marked with a green tick. By clicking again the selection is canceled and the new C-value (mean value) is displayed below the list view directly. By clicking the „OK“ button, the following user message appears: By clicking the „OK“ button, the new value is accepted. INFO: For RSD calculation of at least two C-values must be selected. Otherwise, the result is Infinite and it is „Inf“ is displayed as RSD.
Default settings • C-value IB1; C-value IB2: C value for the corresponding inner vessel • ID IB1; ID IB2: Identification number of the inner vessel • Ref Energy: Calorific reference value of benzoic acid • HO Combustible crucible: Calorific value of the combustible crucible • Start temperature: Changing the mode of operation between 22 ° C and 30 ° C.
Display / Keypad The user can access this menu • select and change the background color of the display.
Accessories Selection of accessories • Heating: Use of heating during the measurement C1.2 • Combustible crucible: yes / no Weight input of the combustible crucible in the submenu „New measurement“ can be done manually or by data transfer from the balance. • Printer: Using a serial printer.
Change seal: 1 2 3 4 5 6 38 III In the Menu Maintenance press „change seal“ button. This requires oxygen pressure be present at C1. Unscrew the piston (Pos. 38 III) with screwdriver counterclockwise Remove the O-ring (Pos. 38 VI) Put new O-ring on piston (Pos. 38 VI) Screw in piston and tighten securely „Change seal“ button again actuate pistons move to the home position 38 VI (8,0x2,5) O-ring (Water inlet valve seal) Stirrer test The stirrer is switched on and off for a visual check.
User information: Memory Prior to input a new measurement Information about the available space when you select the menu item „New Measurement“ This information is displayed when there is a value in the critical region is located, that is, from 95 out of 100 possible measurements in memory or from 13 of 15 calibrations in store for IB1, IB2 at 22 ° C or 30 ° C operating temperature.
Change ignition wire 1 To release the ignition wire (Pos. 24) on the ignition electrodes (Pos. 23) are both 6- hexagon nuts (Pos. 13) using spanner SW 5.5 2 Turn down the upper nut (Pos. 13I1) 3 To release the ignition wire to the ground electrode (Pos. 22) crucible holders hold hex nut (Pos. 13/3) and solve with spanner SW 5.5 4 Screw (Pos.25) and remove while holding the crucible holder 5 Remove old ignition wire iand attach new ignition wire 6 Ignition wire (Pos.
Change ground electrode 1 Loosen ignition wire as described above on the ground electrode 2 Unscrew the ground electrode (Pos.22) with spanner SW 7 3 Remove and replace O-ring (Pos.17) to mount the O-ring on the new ground electrodes 4 Screw in the new ground electrode 5 Install the new O-rings (Pos. 14) to the ground electrode 17 (6,0x2,0) 22 (3,1x1,6) 14 Leak test with the system test Run a full system test to check for leaks: • „Measurement“ menu " menu „System test“.
E02 COMMUNICATION If no internal communication between the software and firmware are prepared COMMUNICATION ALARM appears.. E03 DRIFT ALARM Drift Alarm In preliminary experiment or or post-experiment the temperature drift criterion is not met. Check the stirring function. E04 MINTEMPDIFF If 30 seconds is no temperature increase of 0.5 ° C takes place after ignition, the alarm is displayed.
E06 EMPTYWATER Occurs when the lower water sensor during the emptying of system after 60 seconds still detects water. Possible causes for this problem are: • the drain hose for sucking the air is in the water. Check the hose laying on the cooler (see page 8). • the pump is defective. Switch the device off and back on and then run a system test. Disconnect the return flow line and let the water drain into a lower lying container..
E13 HEATER When using the heater C1.20 this is not detected. The most common cause for this problem is a switched off or unplugged heating during measurement. Check the contact of the heating C1.20. E16 MAXTEMPDIFF Temperature increase > = 10°C detected. Accessories and Consumables C 6040 KV 600 d C 1.12 C 1.50 C 1.1012 C 1.30 C 1.20 C 21 C 29 C4 C6 C5 C 710.2 C 15 C 16 C 17 C9 C 10 C 12 A C 12 C 723 C 723 C 710.4 C 1.103 C 1.
Maintenance The device is subject only to the natural wear and tear of components and their statistical failure rate. According to the IKA manufacturer specifications we recommend an annual maintenance with security check and pressure test according to Pressure Equipment Directive! Cleaning For cleaning, disconnect the main plug! Only use cleaning agents recommended by IKA®.
IKA®- Werke GmbH & Co.KG Janke & Kunkel-Str. 10 D-79219 Staufen Tel. +49 7633 831-0 Fax +49 7633 831-98 sales@ika.de www.ika.
