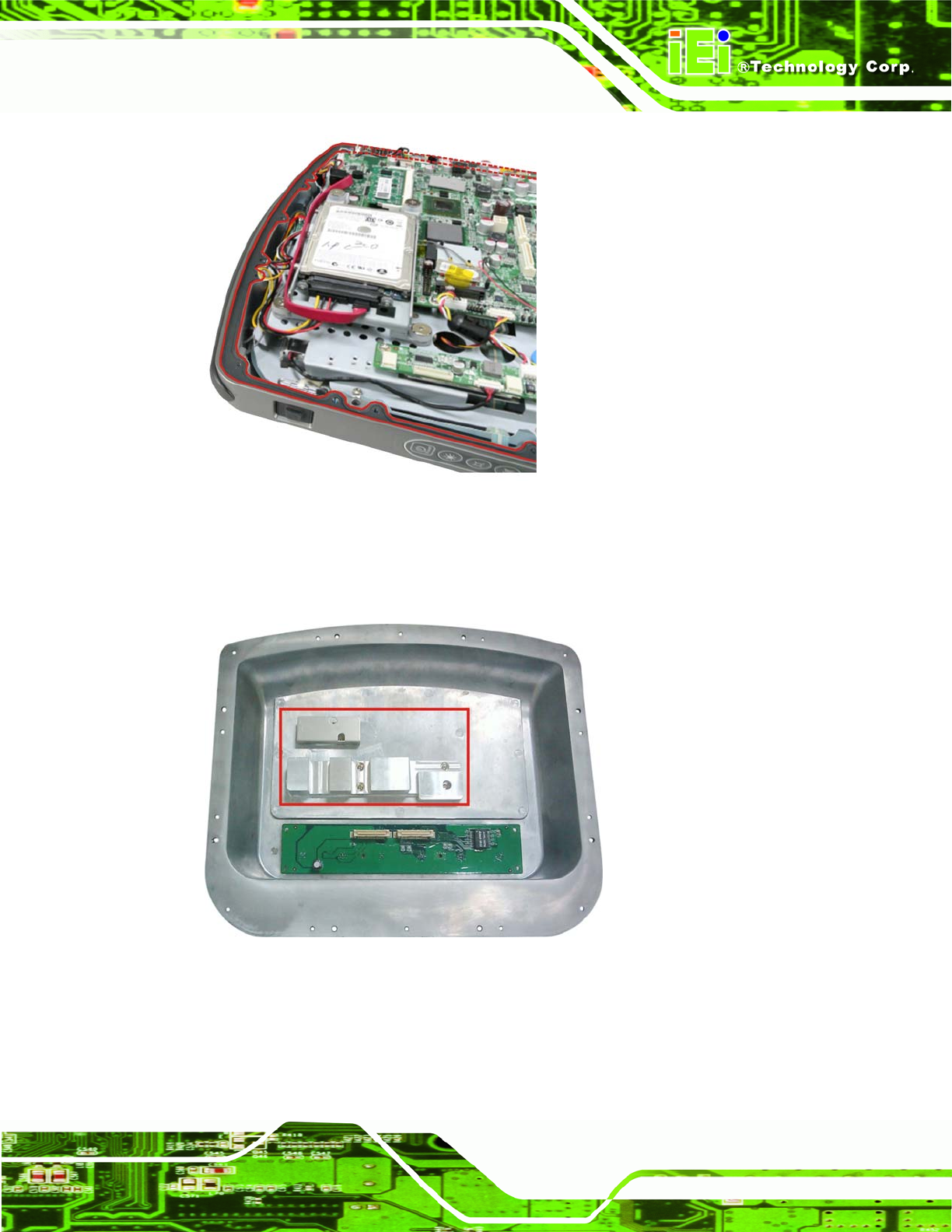

Figure 6-3: Rubber Seal
Step 2: Check that the thermal pads are correctly placed on the back cover. The thermal
pads transfer the heat from the system chipset to the external casing.
Figure 6-4: Thermal Pads
