SAILORPC-12A Panel PC
Page 81

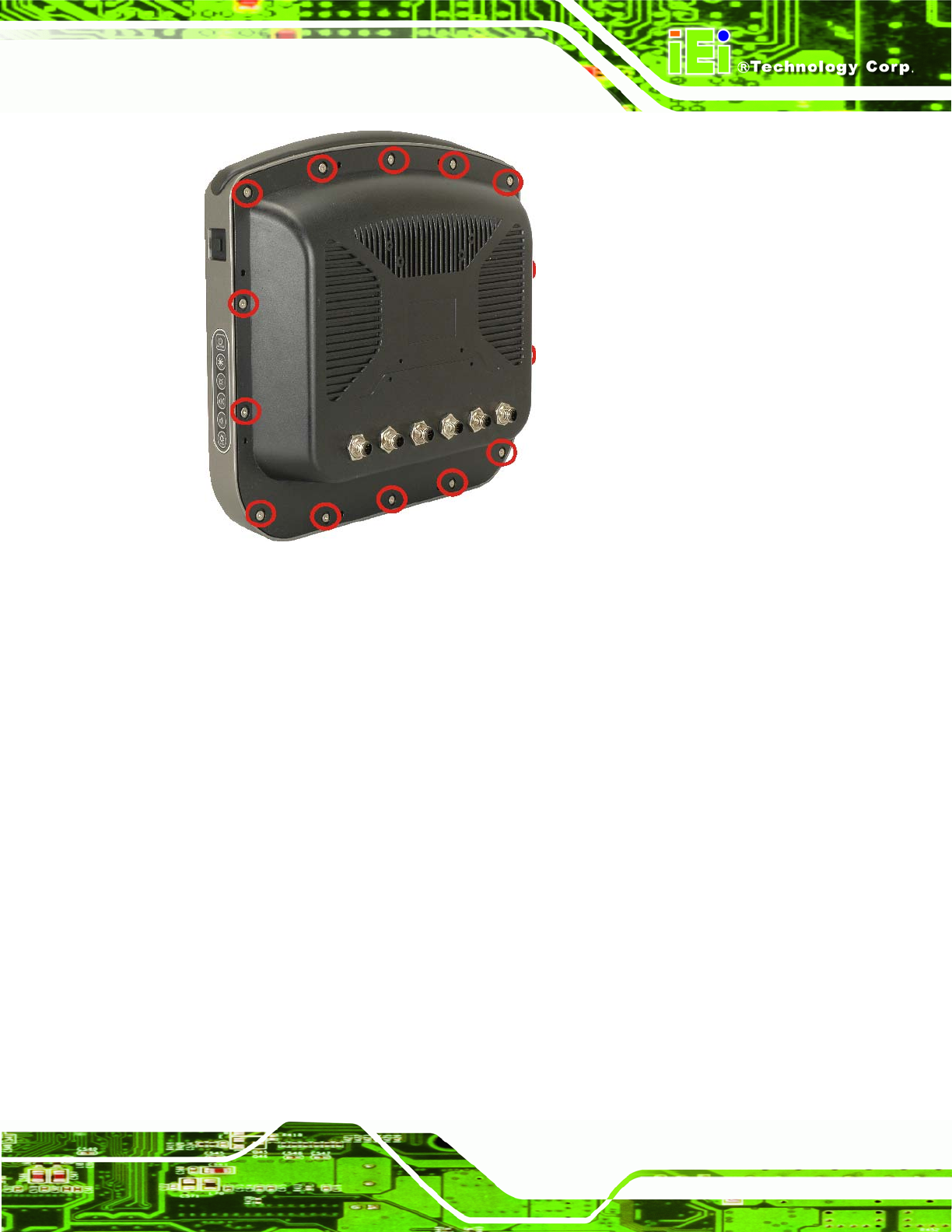

Figure 6-1: Back Cover Retention Screws
6.4 Memory Module Replacement
The flat panel PC has a preinstalled memory module. If the memory module fails, take the
steps below to replace it.
Step 1: Remove the back cover. See Section
6.3 above.
Step 2: Locate the memory module on the motherboard of the flat panel PC
Step 3: Remove the memory module by pulling both the spring retainer clips outward
from the socket.
Step 4: Grasp the memory module by the edges and carefully pull it out of the socket.
Step 5: Install the new memory module by inserting it at an angle, then pushing down
until the clips snap into place (
Figure 6-2).Step 0:
