SAILORPC-12A Panel PC
Page 34
4.2 OSD Software
The OSD options can be controlled through software. A description of the options is
shown below.

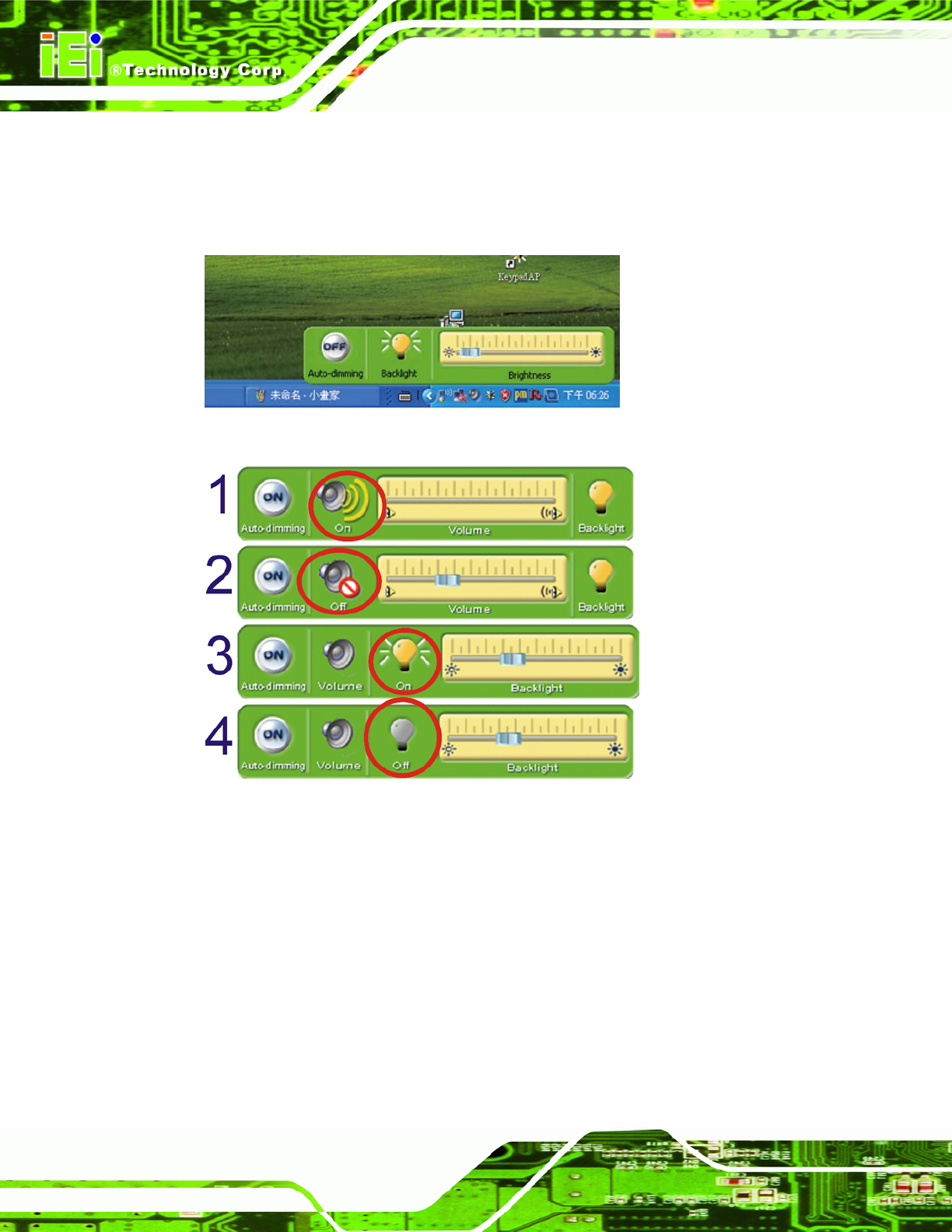

Figure 4-2: OSD Software
Figure 4-3: OSD Software
1. Volume On: Sound can be heard and is adjusted using the slider to the right
2. Volume Off: The sound is muted
3. Backlight On: The screen is on and the brightness is set by using the slider
to the right
4. Backlight Off: The screen is turned off
