SAILORPC-12A Panel PC
Page 26
Pin Description Pin Description
1 Power 2 Power
3 Data1- 4 Data1+
5 Ground 6 Data2+
7 Data2- 8 Ground
Table 3-11: USB Port Pinouts
3.5.5 Power Connector
Connects to a power source.

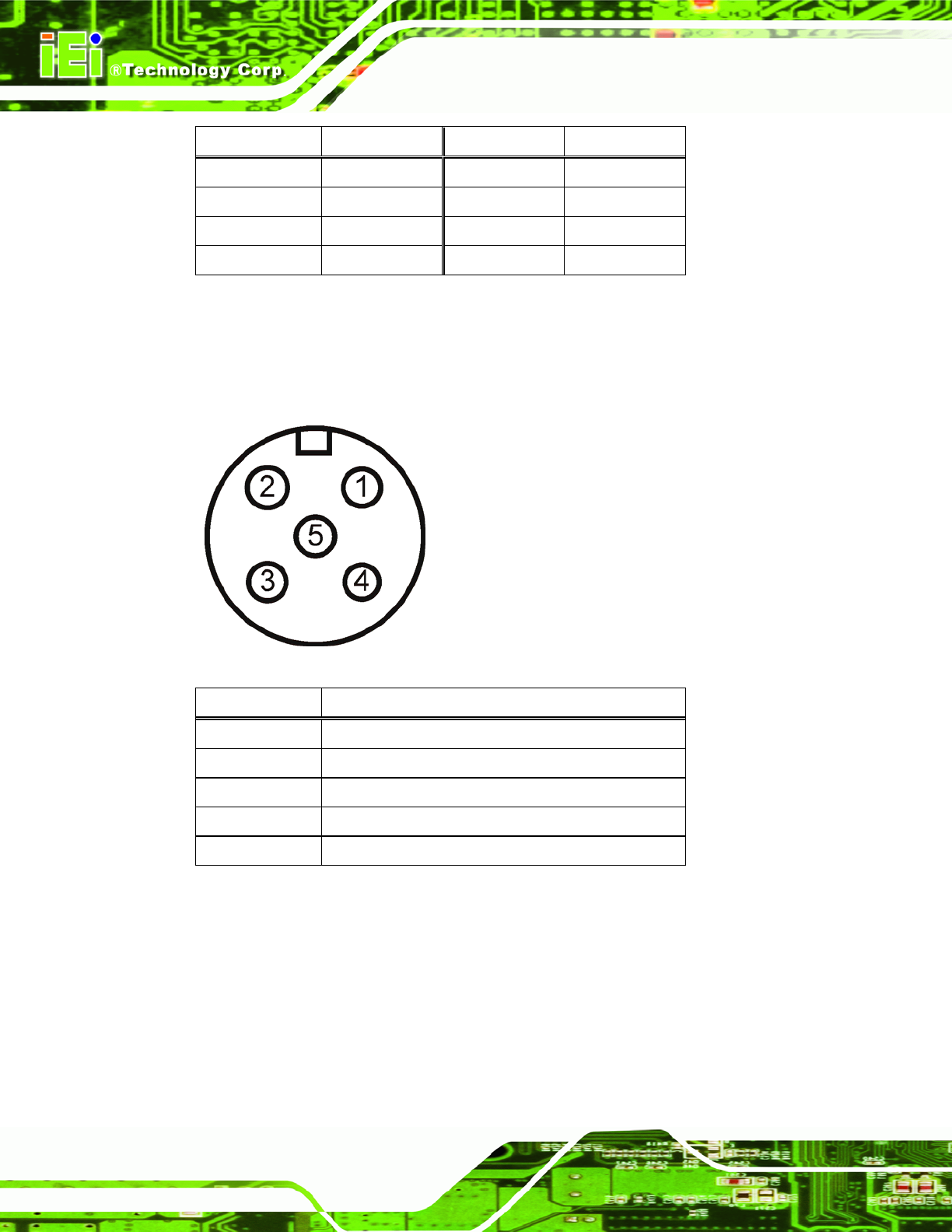

Figure 3-15: Power Connector
Pin Description
1 Power
2 Power
3 Ground
4 Ground
5 Ground
Table 3-12: Power Connector Pinouts
