SAILORPC-12A Panel PC
Page 25

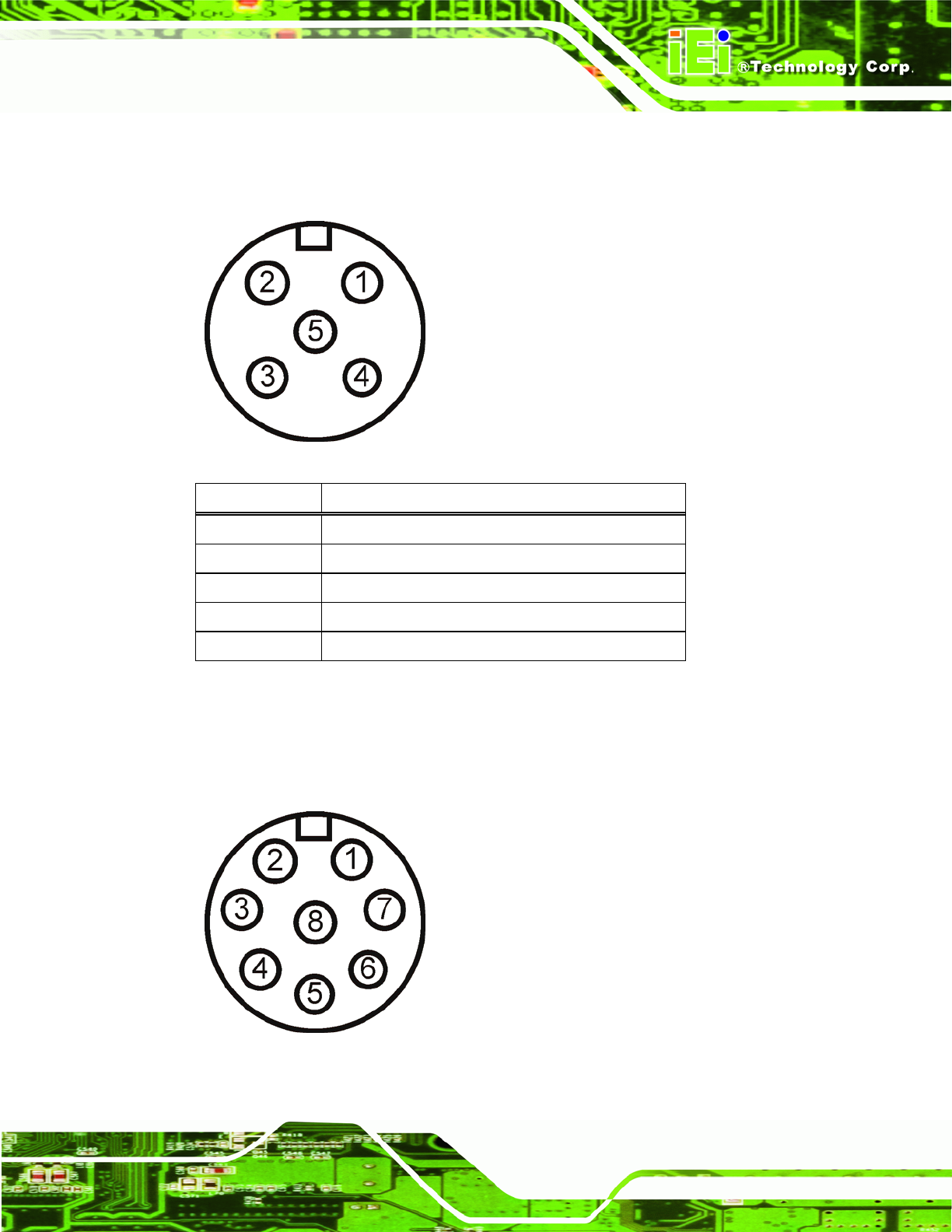

3.5.3 CAN-bus & Audio Connector
Connects to a CAN-bus network and audio device.
Figure 3-13: CAN-bus & Audio Connector
Pin Description
1 Speaker right
2 CAN+
3 CAN-
4 Speaker left
5 Speaker ground
Table 3-10: CAN-bus & Audio Connector Pinouts
3.5.4 USB Port Connector
Connects to USB devices.
Figure 3-14: USB Port
