SAILORPC-12A Panel PC
Page 24
Pin Description Pin Description
3 LAN-MDI2+ 4 LAN-MDI3-
5 LAN-MDI1- 6 LAN-MDI3+
7 LAN-MDI0- 8 LAN-MDI1+
Table 3-8: LAN Port Pinouts
3.5.2 Serial Port Connector
Allows serial communication.

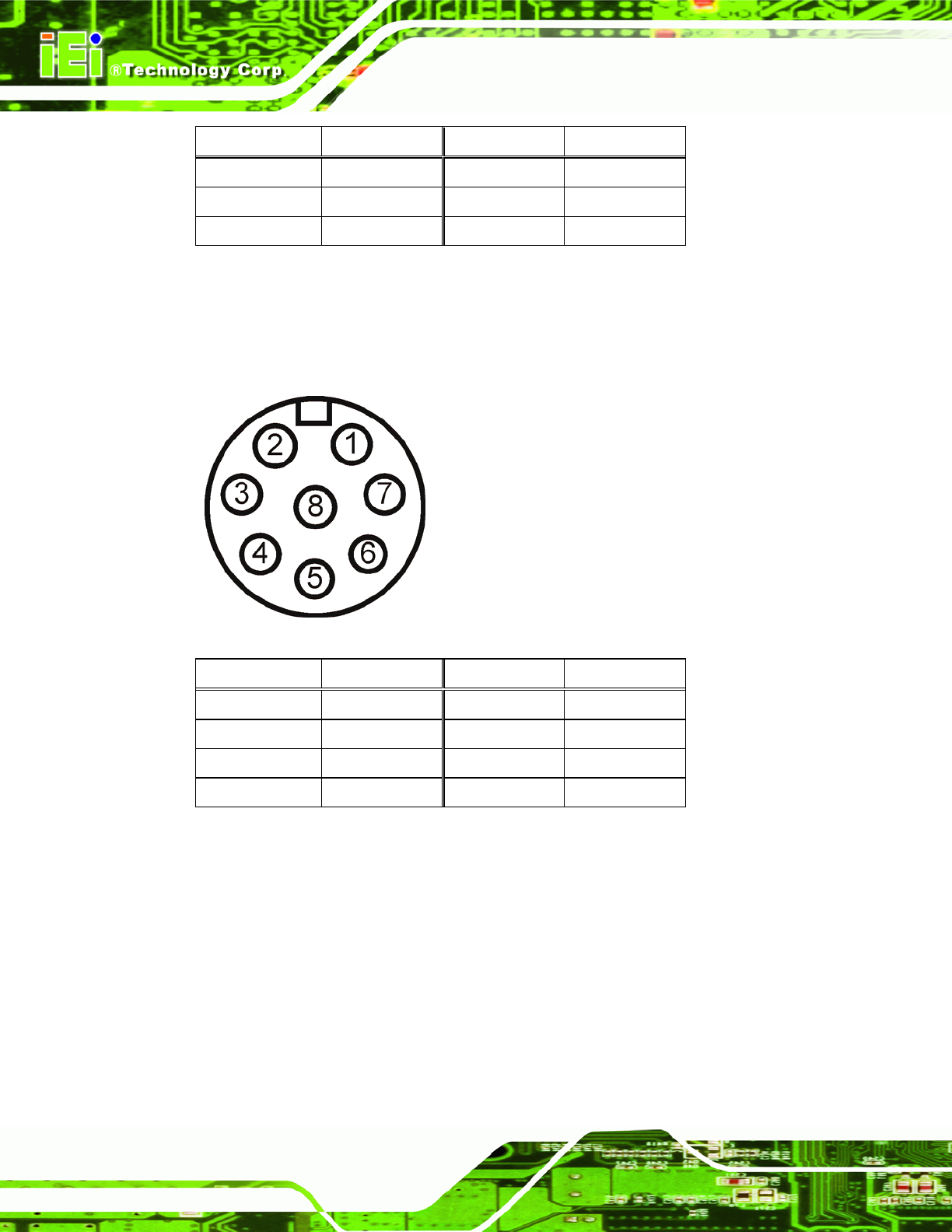

Figure 3-12: Serial Port
Pin Description Pin Description
1 DCD 2 RX
3 TX 4 DTR
5 GND 6 DSR
7 RTS 8 CTS
Table 3-9: Serial Port Pinouts
