SAILORPC-12A Panel PC
Page 22
Jumper Type:
8-pin header
Jumper Settings:
See
Table 3-7
Jumper Location:
See
Figure 3-9
This jumper selects the resolution of the display.
Pin Description
Open 640 x 480, 18-bit
1-2 800 x 480, 18-bit
3-4 800 x 600, 18-bit
1-2, 3-4 1024 x 768, 18-bit (Default)
5-6 1280 x 1024, 36-bit
1-2, 5-6 1400 x 1050, 36-bit
3-4, 5-6 1400 x 900, 36-bit
Table 3-7: Panel Resolution Selection

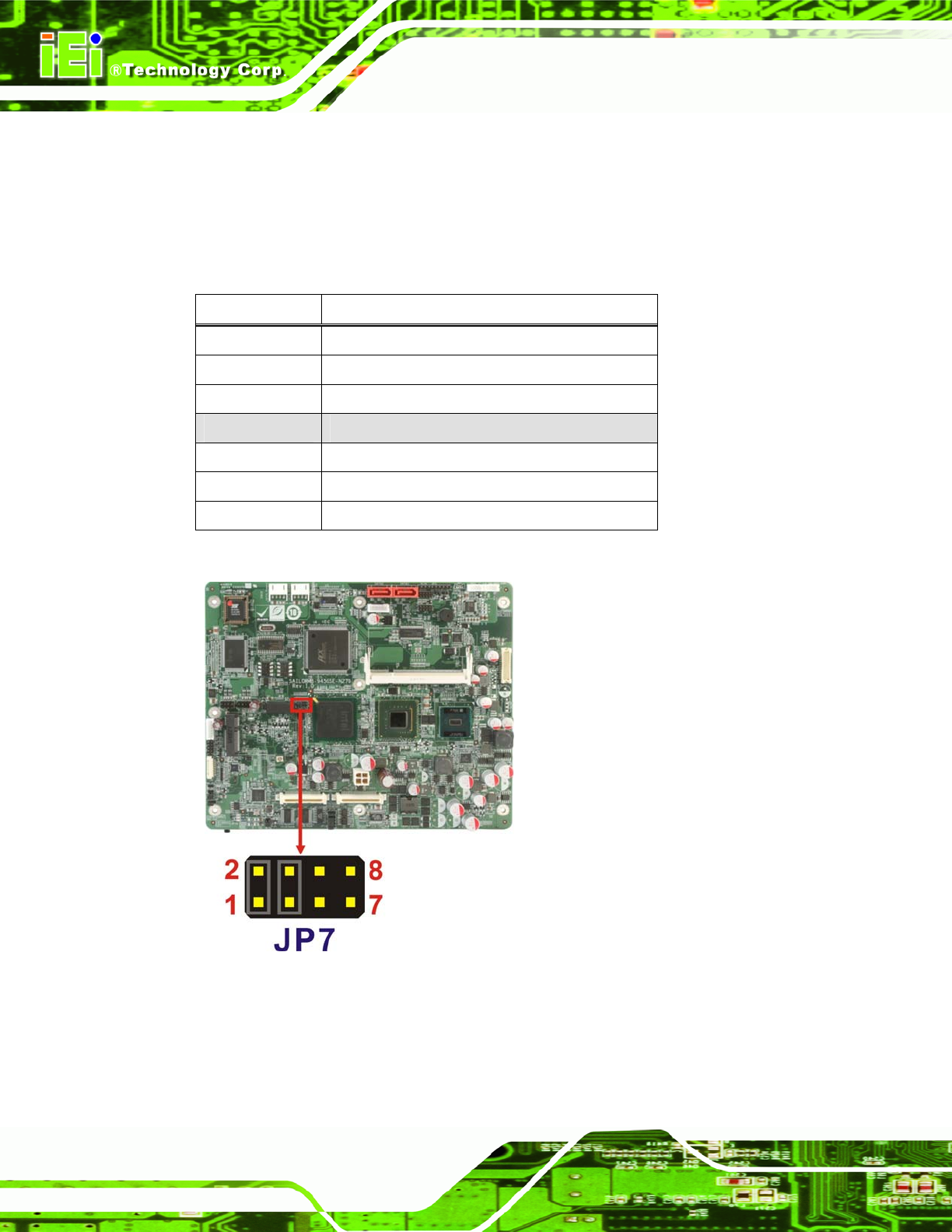

Figure 3-9: Panel Resolution Selection Jumper Location
