SAILORPC-12A Panel PC
Page 19

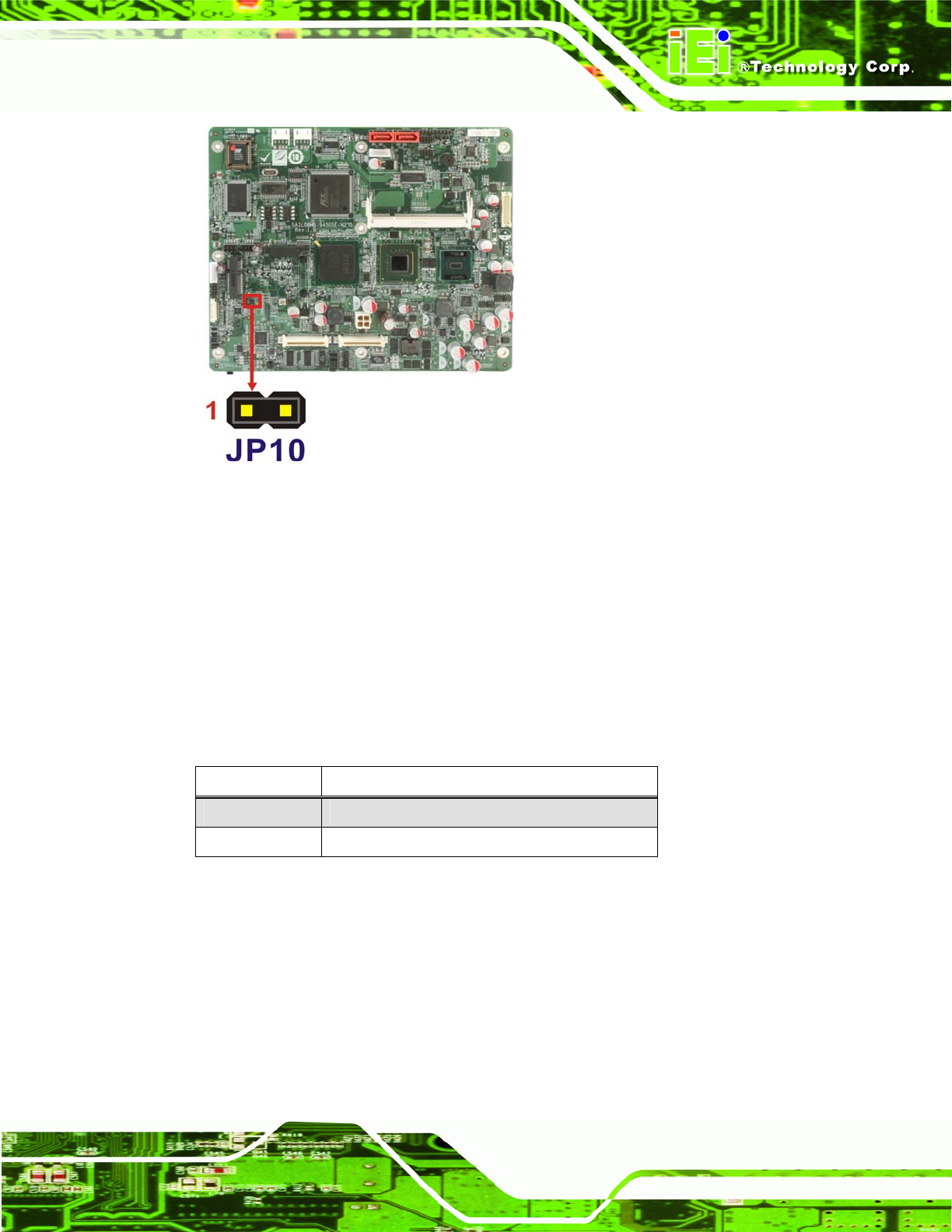

Figure 3-6: AT/ATX Power Selection Jumper Location
3.4.3 CF Mode Selection
Jumper Label: JP15
Jumper Type:
2-pin header
Jumper Settings:
See
Table 3-3
Jumper Location:
See
Figure 3-7
This jumper sets the CF mode to master or slave.
Pin Description
Closed Master (Default)
Open Slave
Table 3-3: CF Mode Selection
