SAILORPC-12A Panel PC
Page 18

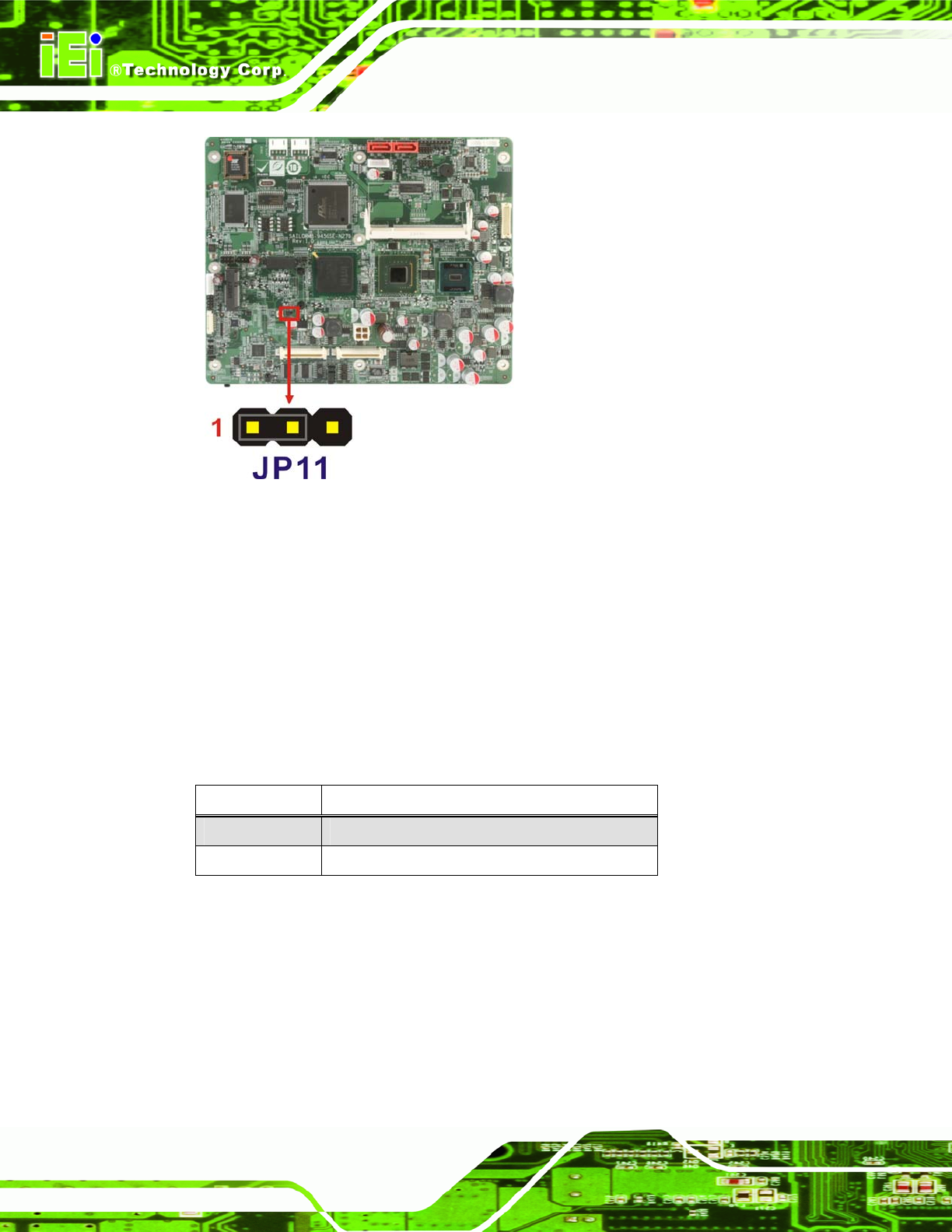

Figure 3-5: Reset CMOS Jumper Location
3.4.2 AT/ATX Power Selection
Jumper Label: JP10
Jumper Type:
2-pin header
Jumper Settings:
See
Table 3-2
Jumper Location:
See
Figure 3-6
This jumper sets the power mode to AT or ATX.
Pin Description
Closed ATX (Default)
Open AT
Table 3-2: AT/ATX Power Selection
