SAILORPC-12A Panel PC
Page 16
3.3 CompactFlash® Card Installation
This section covers the installation of the CompactFlash® card.
Step 1: Remove the back cover as shown in the hard drive installation above.
Step 2: Install the CompactFlash® card in the slot indicated below.

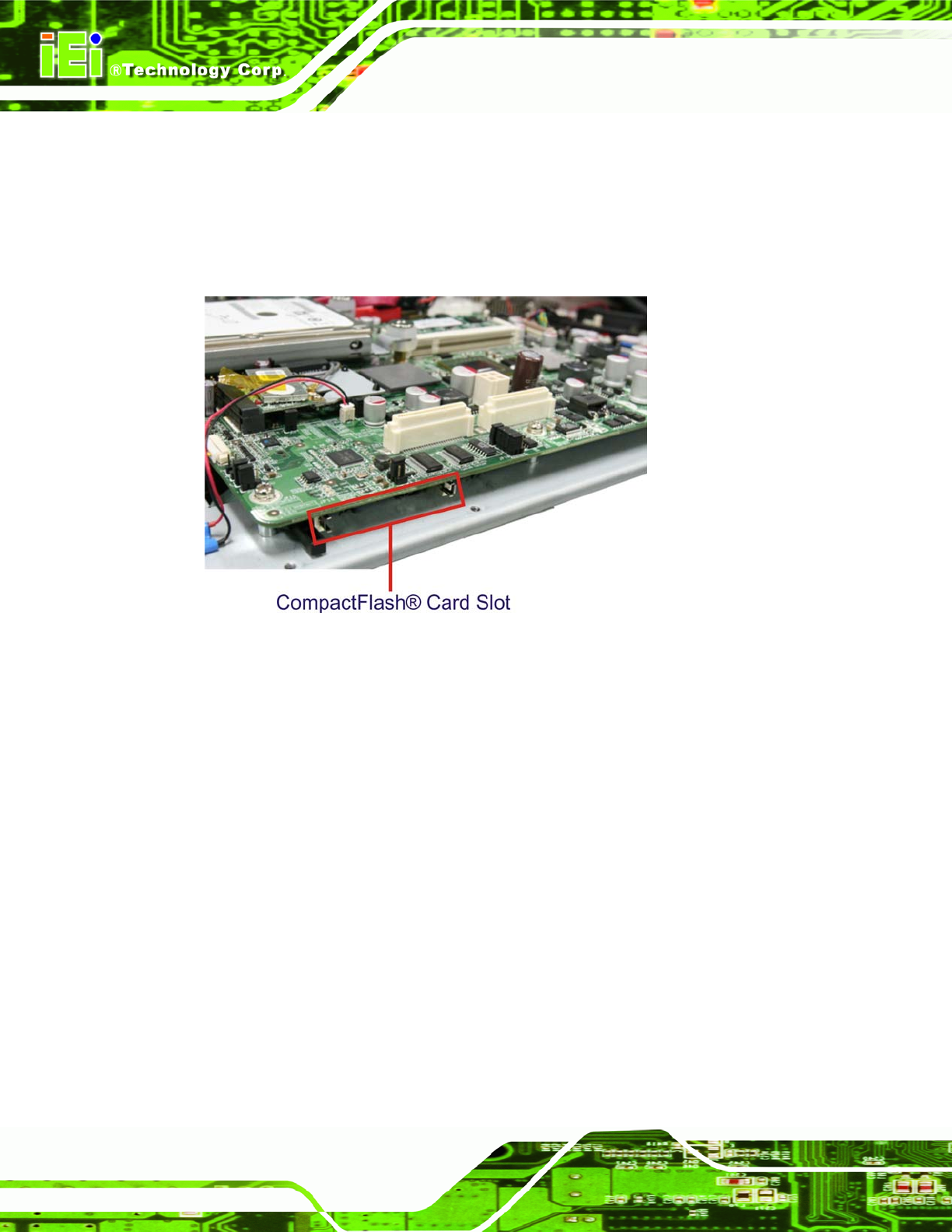

Figure 3-4: CompactFlash® Card Installation
Step 3: Replace the cover and fasten the screws.
Step 4: Make sure the outer seal is seated properly, then replace the cover.Step 0:
