SAILORPC-12A Panel PC
Page 5

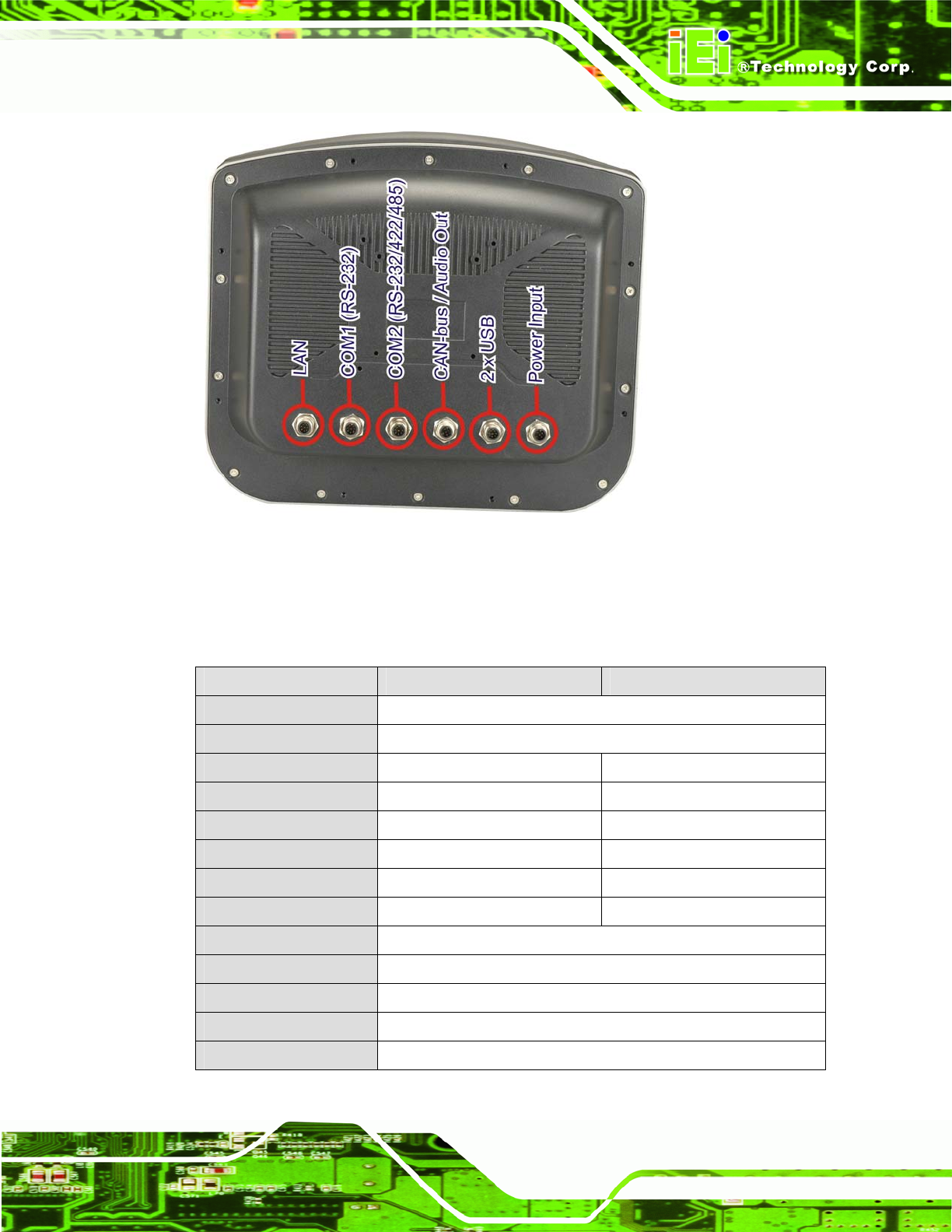

Figure 1-4: Connectors
1.6 Technical Specifications
The technical specifications for the SAILORPC-12A systems are listed in Table 1-1.
SPECIFICATION SAILORPC-12ASR SAILORPC-12A
LCD Size 12.1”
Max. Resolution 1024 x 768
Brightness (cd/m
2
) 1000 500
Contrast Ratio 600:1 700:1
LCD Color 16.7 M 16.2 M
Pixel Pitch (H x V) (mm) 0.24 x 0.24 0.3075 x 0.3075
Viewing Angle (H/V) 160º/140º 160º/160º
Backlight MTBF (hrs) 6000 5000
Motherboard SAILORMB-ATOM-R10
CPU 1.6 GHz Intel® Atom™ N270
Chipset Intel® 945GSE + ICH7M
Memory Supports one 400/533 MHz DDR2 SO-DIMM (system max. 2GB)
Expansion 1 x Wireless LAN module (802.11b/g/n)
