PM-945GSE-N270 User Manual
Page 61

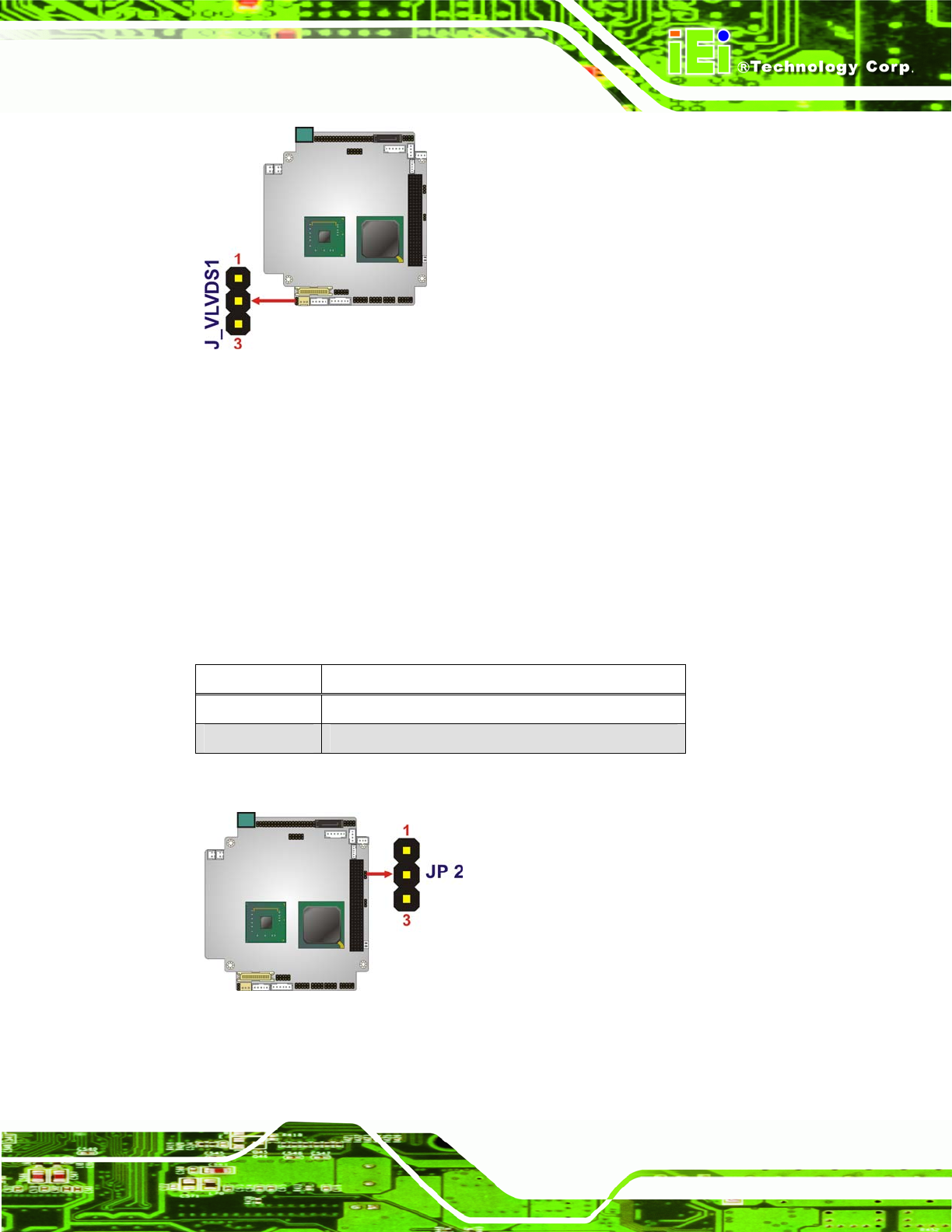

Figure 4-5: LVDS Voltage Select Jumper Location
4.5.4 PCI-104 Voltage Setup
Jumper Label: JP2
Jumper Type:
3-pin header
Jumper Settings:
See Table 4-4
Jumper Loc
ation:
See Figure 4-6
This jum
per selects the voltage supplied to the PCI-104 expansion module.
Setting Description
1-2 +5.0 V
2-3 +3.3 V
Table 4-4: PCI-104 Voltage Jumper Settings
Figure 4-6: PCI-104 Voltage Jumper Location
