PM-945GSE-N270 User Manual
Page 32

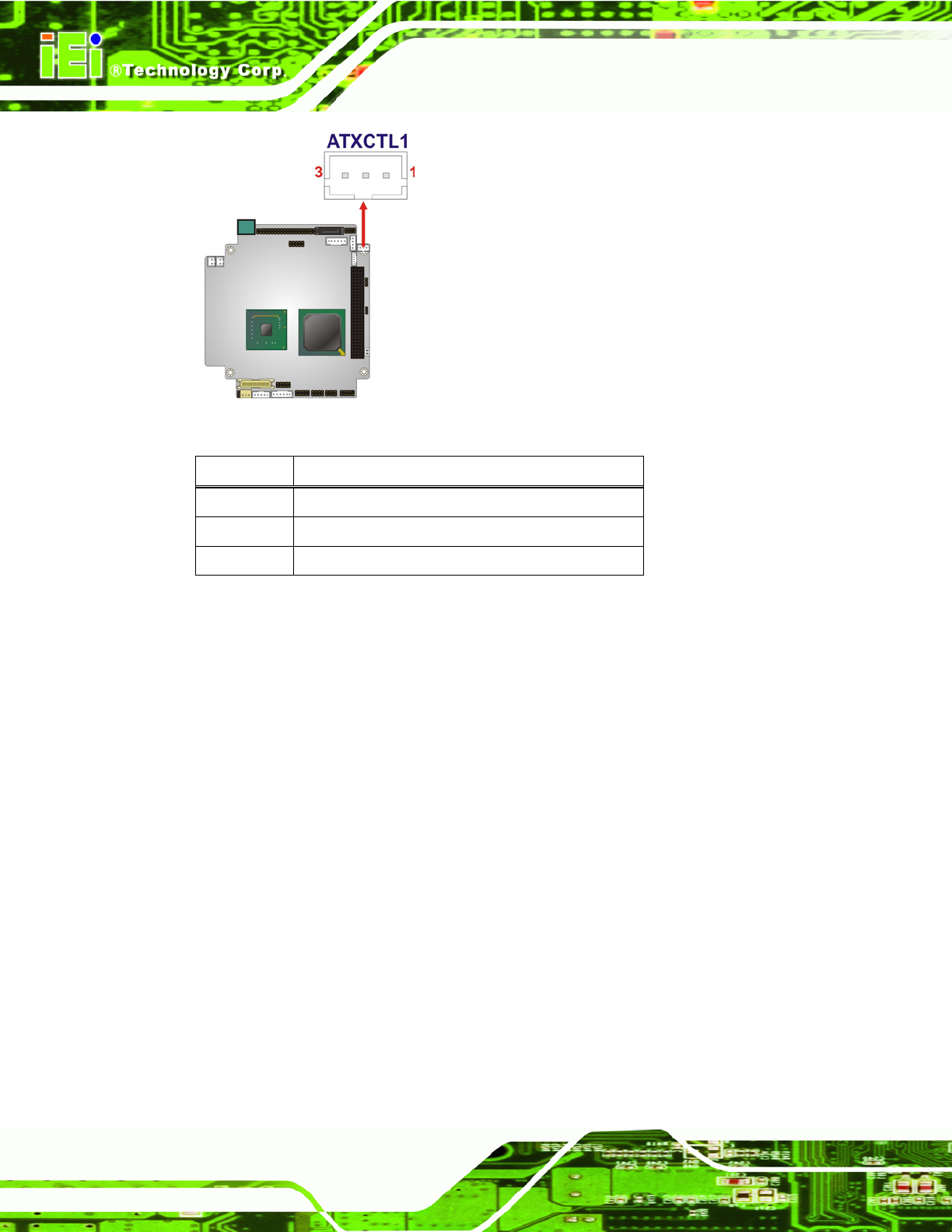

Figure 3-4: ATX Power Supply Enable Connector Location
Pin Description
1 +5 V Standby
2 GND
3 PS-ON#
Table 3-3: ATX Power Supply Enable Connector Pinouts
3.2.3 Audio Kit Connector
CN Label: CN7
CN Type:
9-pin header
CN Location:
See Figure 3-5
CN Pinou
ts:
See Table 3-4
This
connector connects to an external audio kit.
