PM-945GSE-N270 User Manual
Page 28
3.1 Peripheral Interface Connectors
The locations of the peripheral interface connectors are shown in Section 3.1.1. A
complete list of all the peripheral interface connectors can be seen in Section 3.1.2.
3.1.1 PM-945GSE-N270 Motherboard Layout
Figure 3-1 shows the on-board peripheral connectors and jumpers on the front side of the
board.

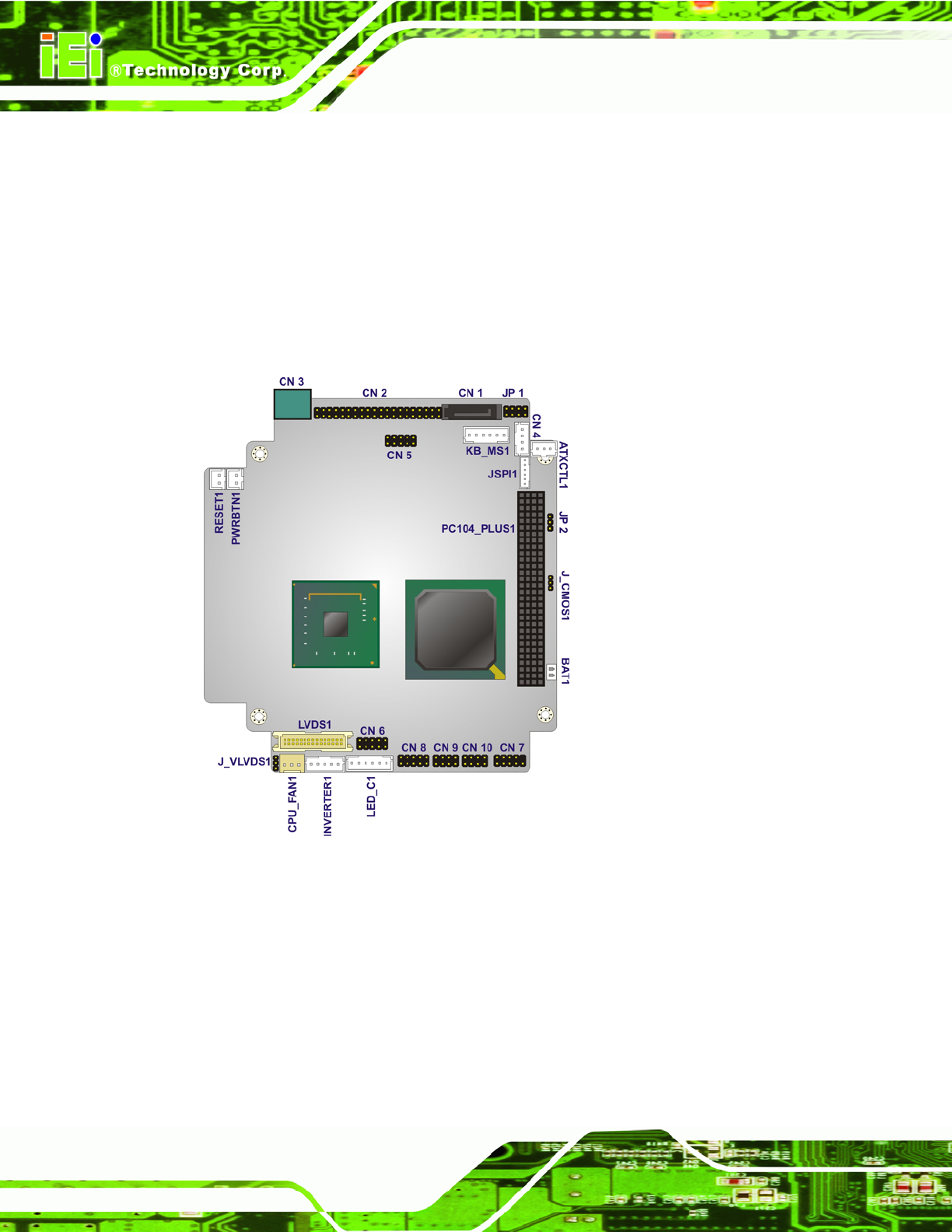

Figure 3-1: Connector and Jumper Locations (Front Side)
Figure 3-2 sh
ows the onboard peripheral connectors on the solder side of the board.
