LCD-KIT
Page 80

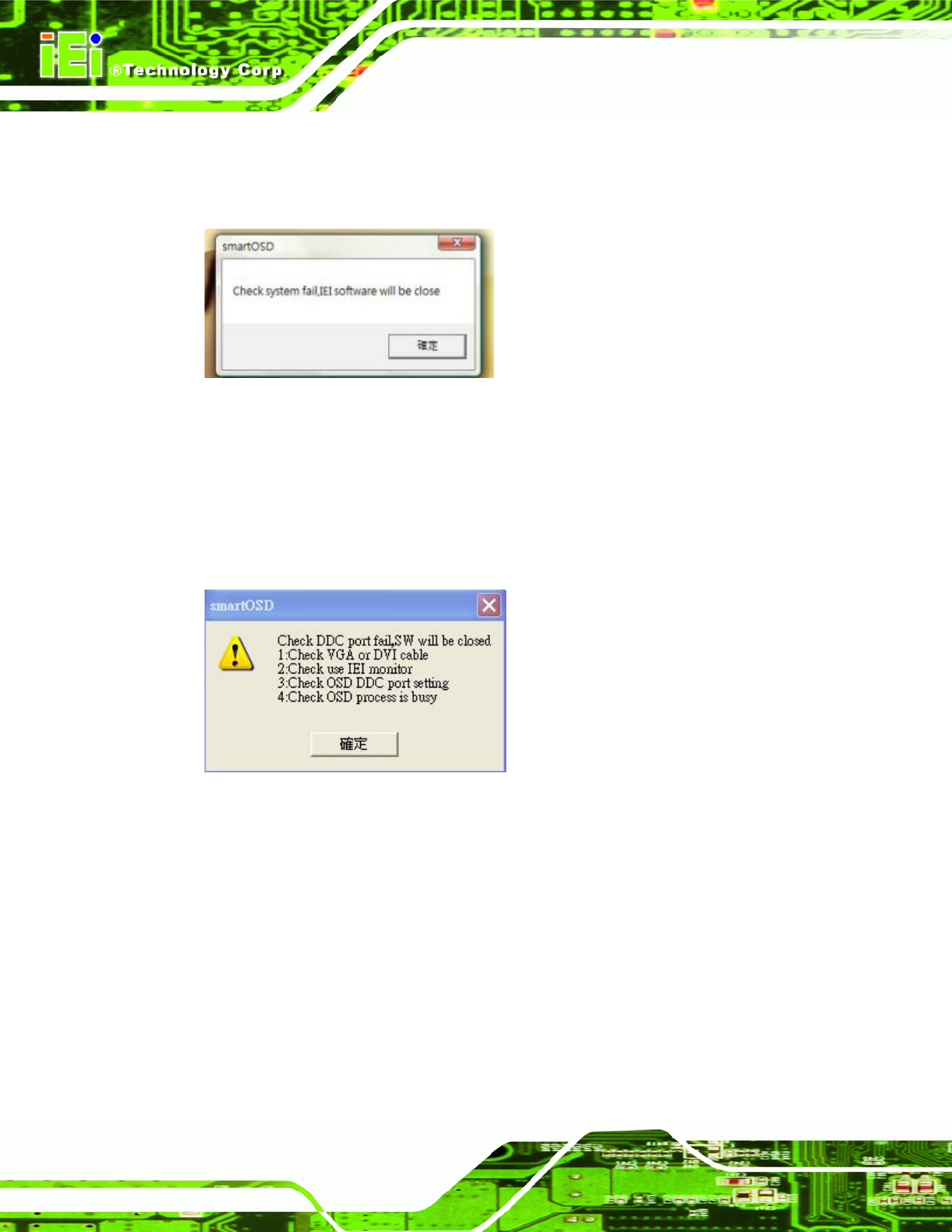

C.5.3 Model Failure
The Model Fail error message shown below appears.
Figure C-19: Firmware Incompatibility
Solution: SmartOSD only supports firmware version 2.0 and following versions.
C.5.4 DCC Port Failure
The DDC port fail error message shown below appears.
Figure C-20: DCC Port Failure
Solutions:
Check VGA or DVI cable
Check an IEI monitor is being used
Make sure the version is version 2.3 for the AFOLUX/MLCD-KIT series and
version 1.5 for the LCD-KIT/ISLCD-KIT/TLCD-KIT/SRM/LCD-KIT series that
have the SmartOSD functions
Check if the OSD control status is busy. A busy signal may cause the signal
message for a short time.
