6.1 User Mode OSD Structure
6.1.1 OSD Buttons
There are several on-screen-display (OSD) control buttons oriented either vertically along
the right hand side or horizontally along the bottom of the monitor front panel. Refer to
Section
2.2 for availability and orientation of the OSD controls on specific LCD-KIT series
monitors.
Figure 6-1 shows a typical arrangement of OSD controls for all models except the 6.5"
model.

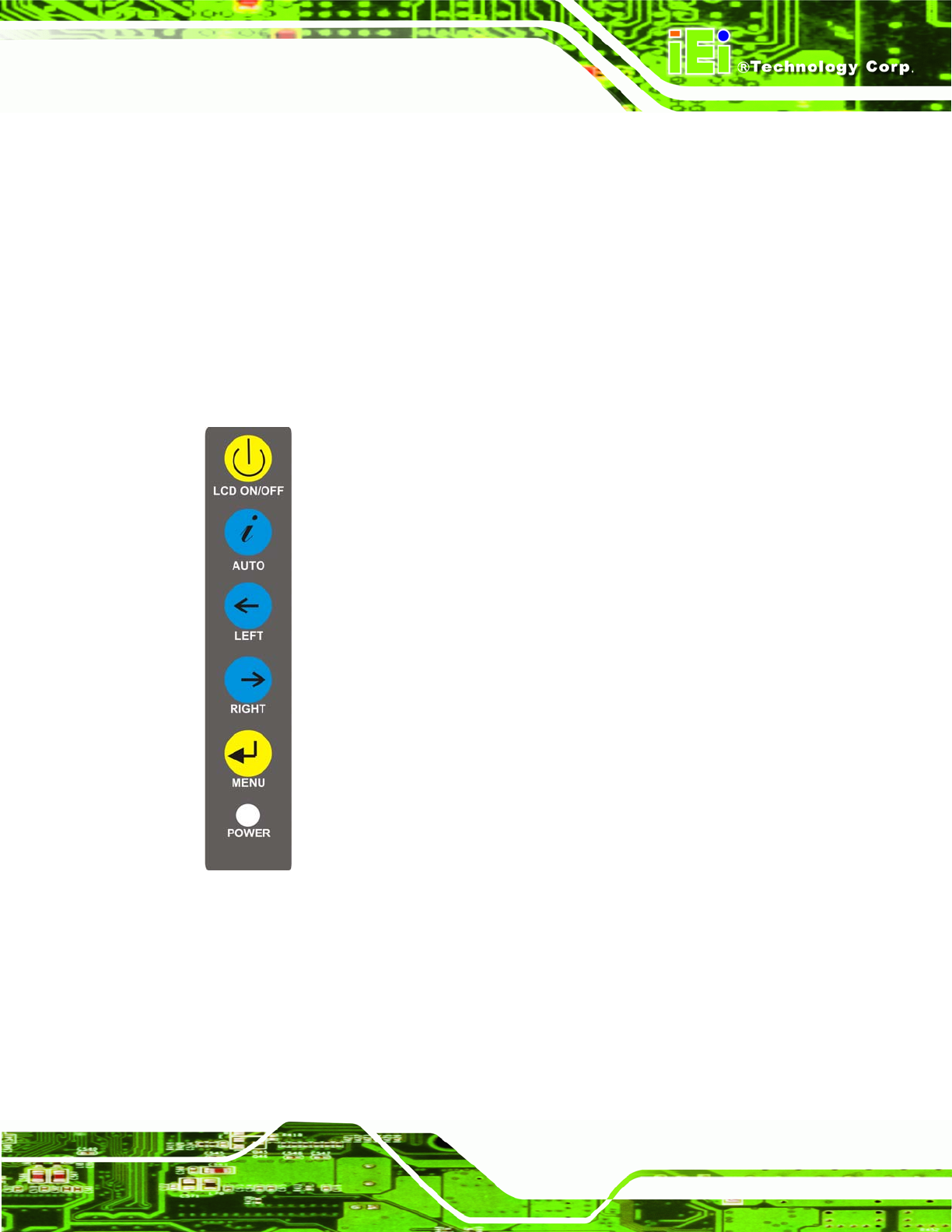

Figure 6-1: OSD Control Buttons (Except 6.5")
Figure 6-2 shows the OSD controls for the 6.5".
