LCD-KIT
Page 38

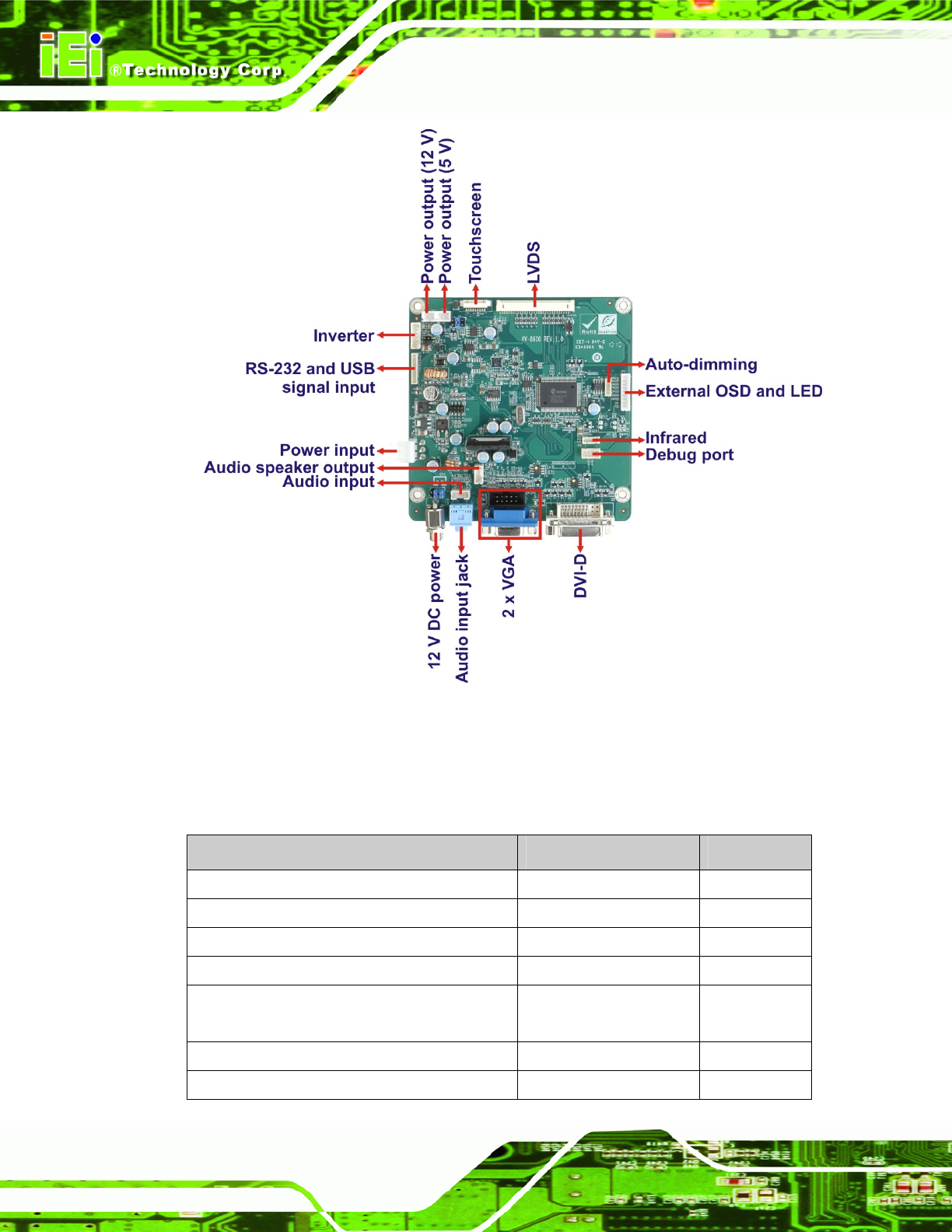

Figure 4-3: AV-6600 AD Board Overview
4.4.1 AV-6600 Peripheral Interface Connectors
Table 4-5 shows a list of the peripheral interface connectors on the AV-6600 AD board.
Connector Type Label
Audio input connector 4-pin wafer connector CN11
Audio speaker output connector 4-pin wafer connector CN12
Auto-dimming connector 6-pin wafer connector CN7
Debug connector 4-pin wafer connector CN9
External OSD and LED indication
connector
9-pin wafer connector CN10
Infrared connector 6-pin wafer connector CN8
Inverter interface connector 6-pin wafer connector CN6
