LCD-KIT
Page 34
4.1 AD Board Overview
The LCD-KIT series industrial monitor AD board provides a wide variety of control
interfaces, receiving and managing interface signals from a CPU card through cabling.
There are three AD boards used for the LCD-KIT series monitors: AV-9650, AV-6650 and
AV-6600. Refer to Section
1.4 for a listing of LCD-KIT series monitors and their
associated AD board. The following sections describe each AD board in detail.
4.2 AV-9650 AD Board Overview

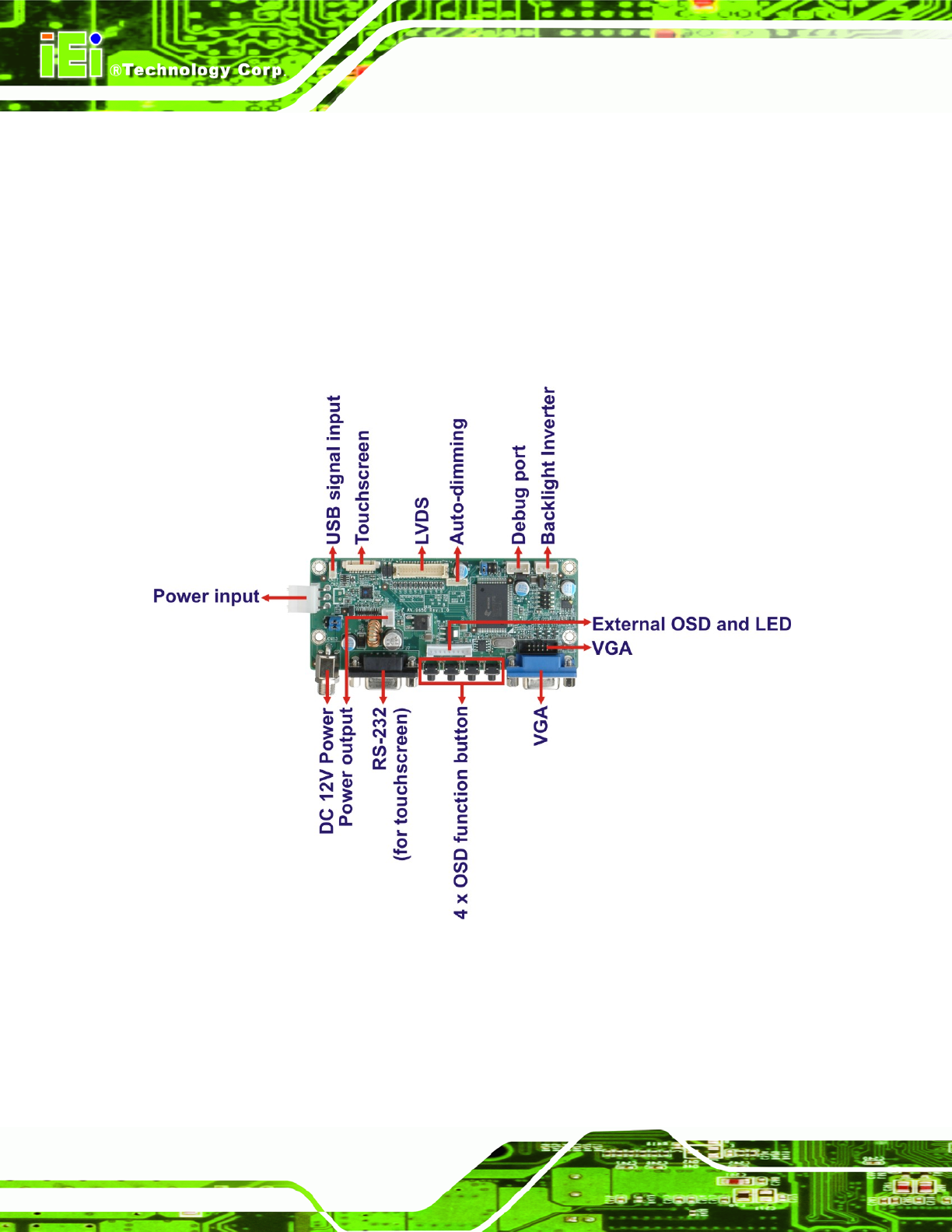

Figure 4-1: AV-9650 AD Board Overview
