Manual

KINO-G410 Mini-ITX Motherboard
Page 31
3.3.2 Keyboard/Mouse Connector
CN Label: KBMS 1
CN Type:
PS/2
CN Location:
See Figure 3-18
CN Pinouts:
See Table 3-17, Figure 3-20
The keyboard and mouse connector is a standard PS/2 connector.

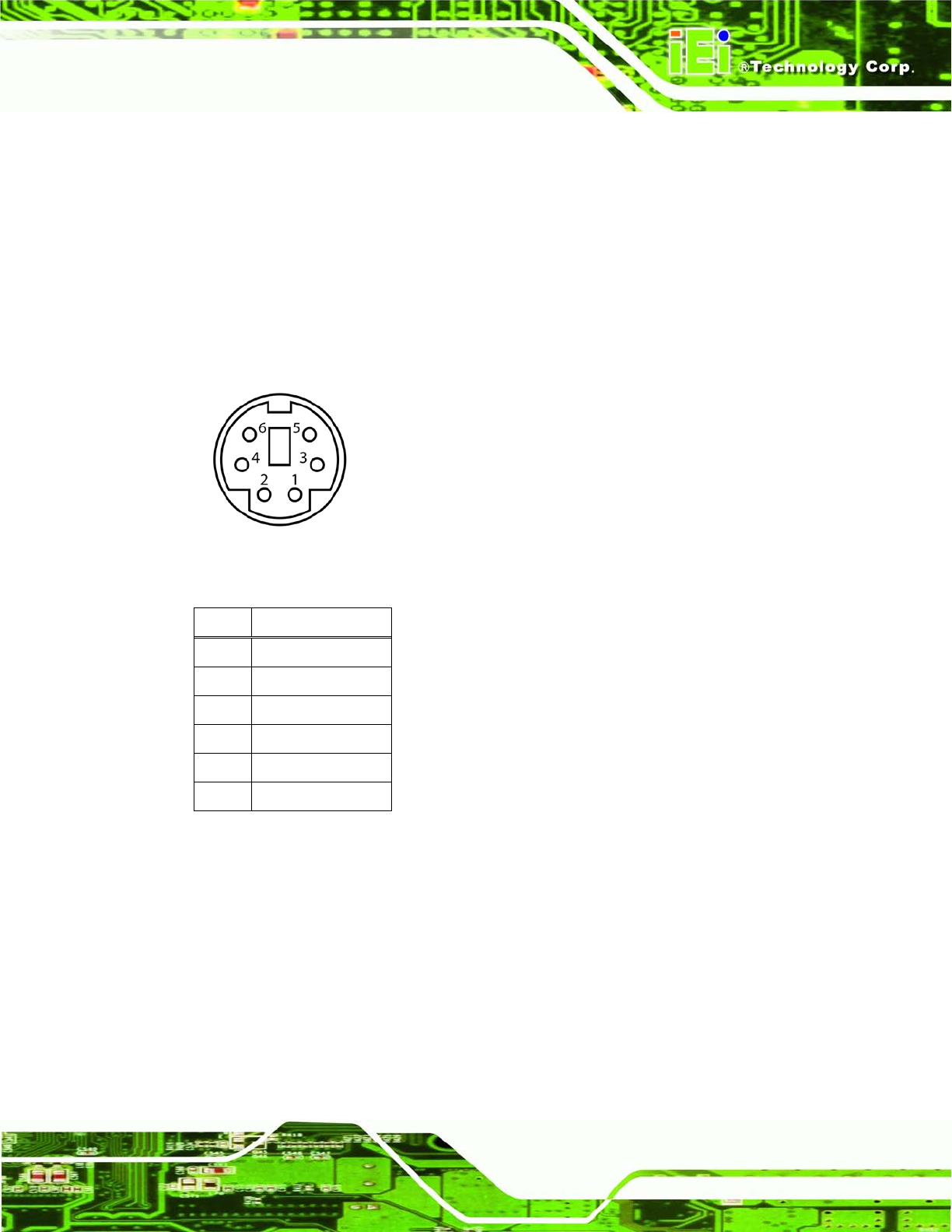

Figure 3-20: PS/2 Pinout and Configuration
Pin Description
1 KB DATA
2 MS DATA
3 GND
4 VCC (+5V)
5 KB CLOCK
6 MS CLOCK
Table 3-17: Keyboard Connector Pinouts
3.3.3 LAN Connector
CN Label: LAN1, LAN2
CN Type:
RJ-45
CN Location:
See Figure 3-18
CN Pinouts:
See Table 3-18
The LAN connector connects to a local network.
