KINO-G410 Mini-ITX Motherboard
Page 28
Pin Description Pin Description
1 +3.3V 2 GND
3 CS# 4 CLOCK
5 SO 6 SI
7 NC 8 NC
Table 3-14: SPI Flash Connector
3.2.15 USB Connectors
CN Label: USB45, USB67
CN Type:
8-pin header
CN Location:
See Figure 3-16
CN Pinouts:
See Table 3-15
The USB connectors connect to USB devices. Each pin header provides two USB ports.

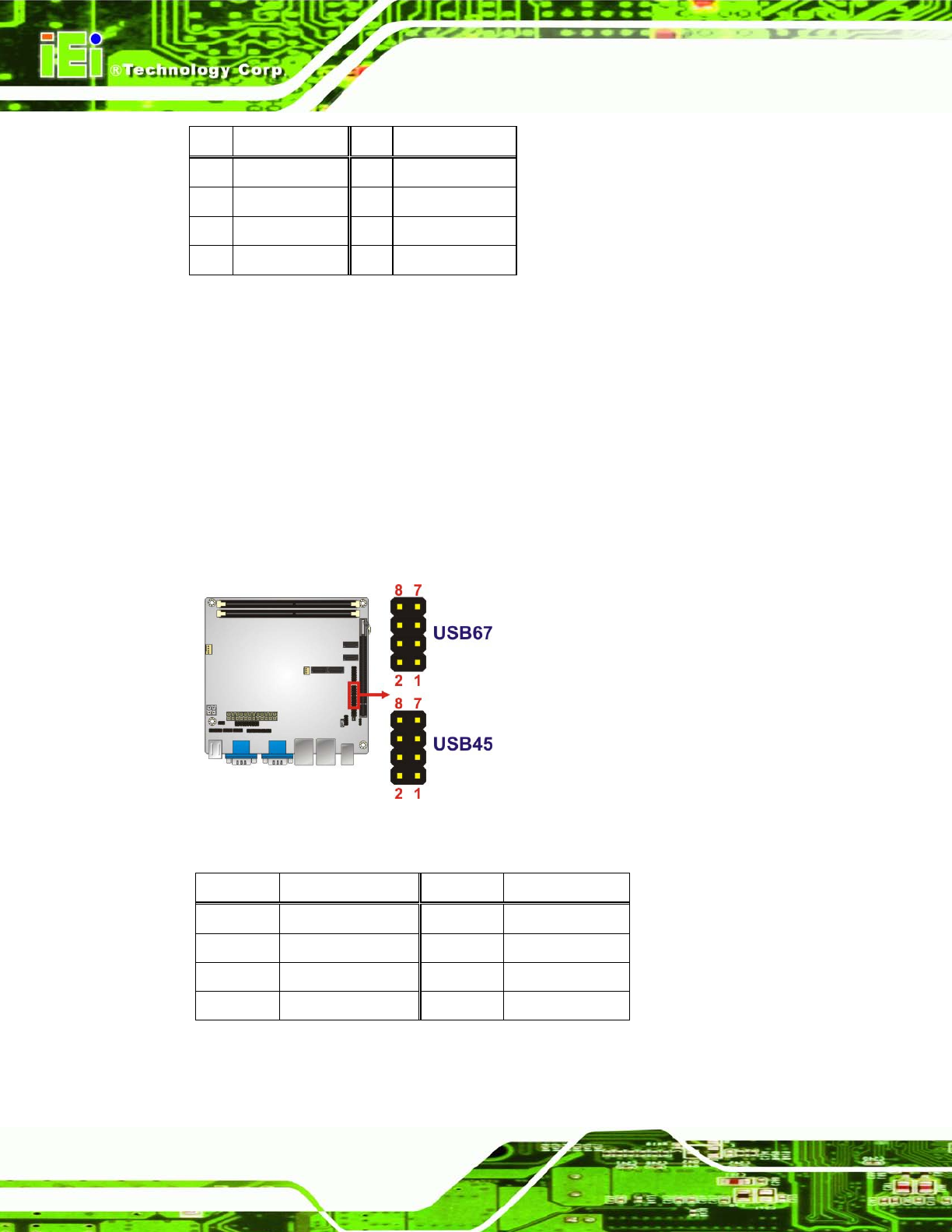

Figure 3-16: USB Connector Pinout Locations
Pin Description Pin Description
1 +5V 2 GND
3 DATA1- 4 DATA2+
5 DATA1+ 6 DATA2-
7 GND 8 +5V
Table 3-15: USB Port Connector Pinouts
