KINO-G410 Mini-ITX Motherboard
Page 25
3.2.11 RS-232/422/485 Serial Port Connector
CN Label: COM6
CN Type:
14-pin header
CN Location:
See Figure 3-12
CN Pinouts:
See Table 3-12
This connector provides RS-232, RS-422 or RS-485 communications.

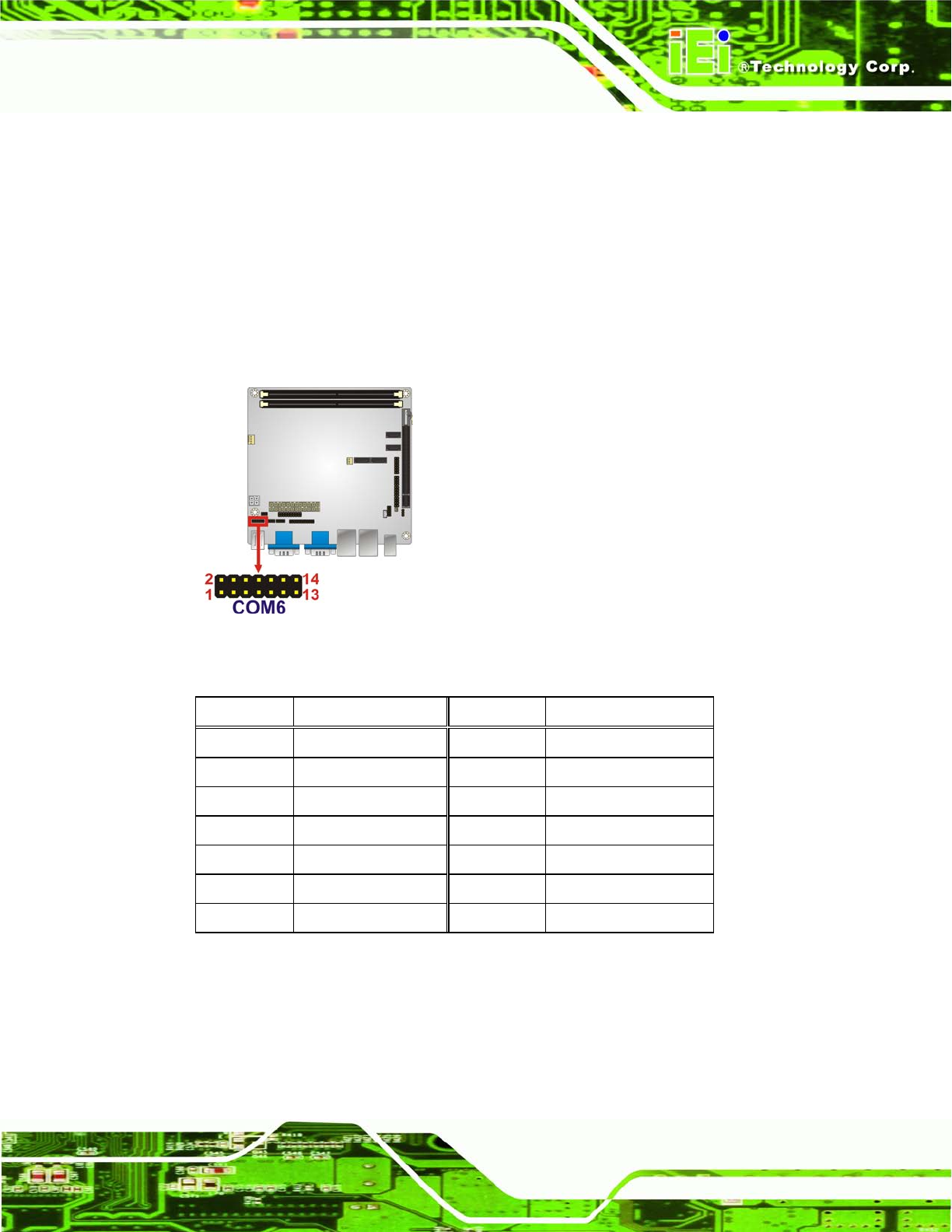

Figure 3-12: RS-232/422/485 Serial Port Connector Location
Pin Description Pin Description
1 DCD 2 DSR
3 RXD 4 RTS
5 TXD 6 CTS
7 DTR 8 RI
9 GND 10 GND
11 RS422 TX2/485 12 RS422 TX2-/485
13 RS422 RX2 14 RS422 RX2-
Table 3-12: RS-232/422/485 Serial Port Connector Pinouts
