KINO-G410 Mini-ITX Motherboard
Page 23
3.2.9 Power Connector
CN Label: ATX1
CN Type:
24-pin connector
CN Location:
See Figure 3-10
CN Pinouts:
See Table 3-10
The power connector connects to an ATX power supply.

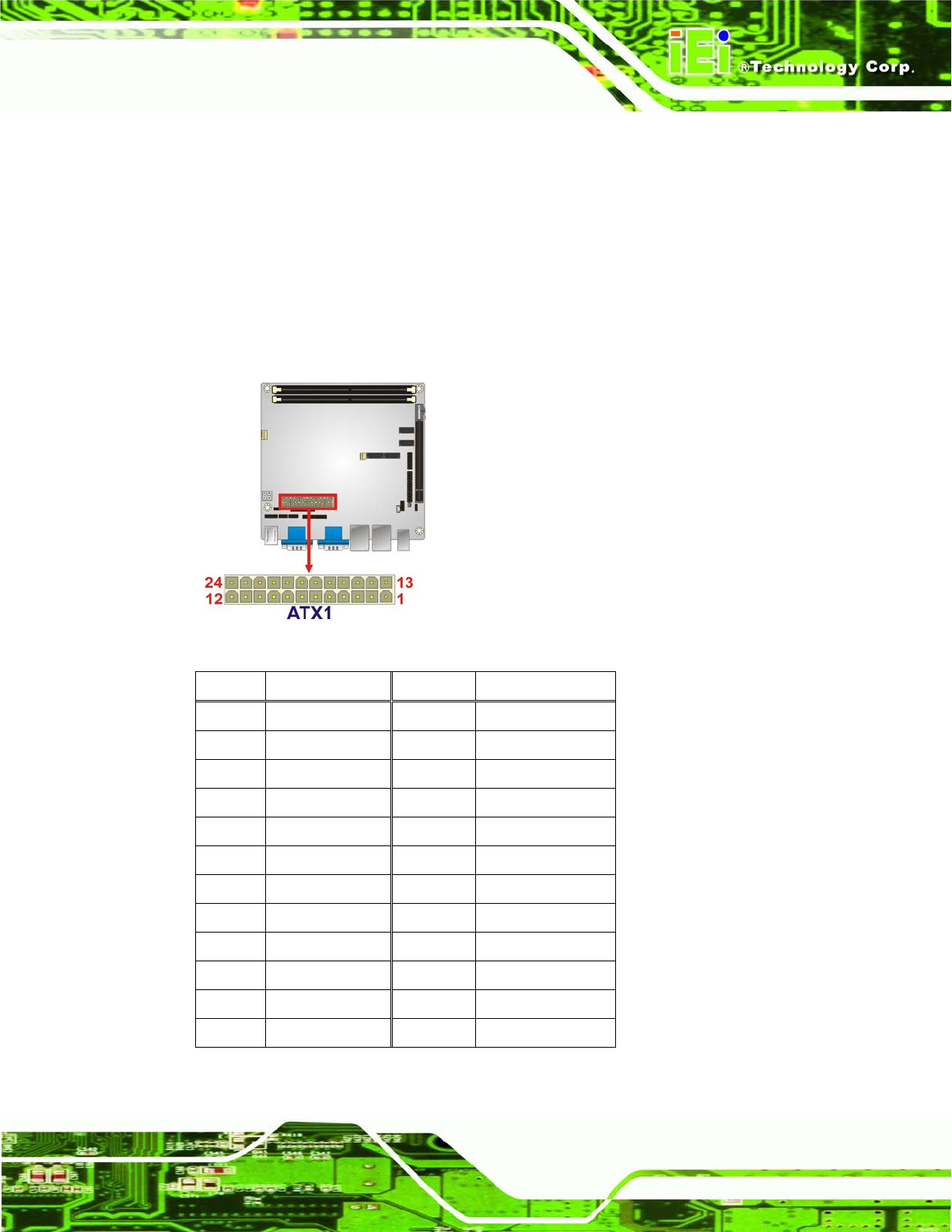

Figure 3-10: Power Connector Location
Pin Description Pin Description
1 3.3V 13 3.3V
2 3.3V 14 -12V
3 GND 15 GND
4 5V 16 PS_ON-
5 GND 17 GND
6 5V 18 GND
7 GND 19 GND
8 ATXPWROK 20 NC
9 5VSB 21 5V
10 12V 22 5V
11 12V 23 5V
12 3.3V 24 GND
Table 3-10: Power Connector Pinouts
