KINO-G410 Mini-ITX Motherboard
Page 22
CN Location:
See Figure 3-9
CN Pinouts:
See Table 3-9
The parallel port connector connects to a parallel port connector interface or some other
parallel port device such as a printer.

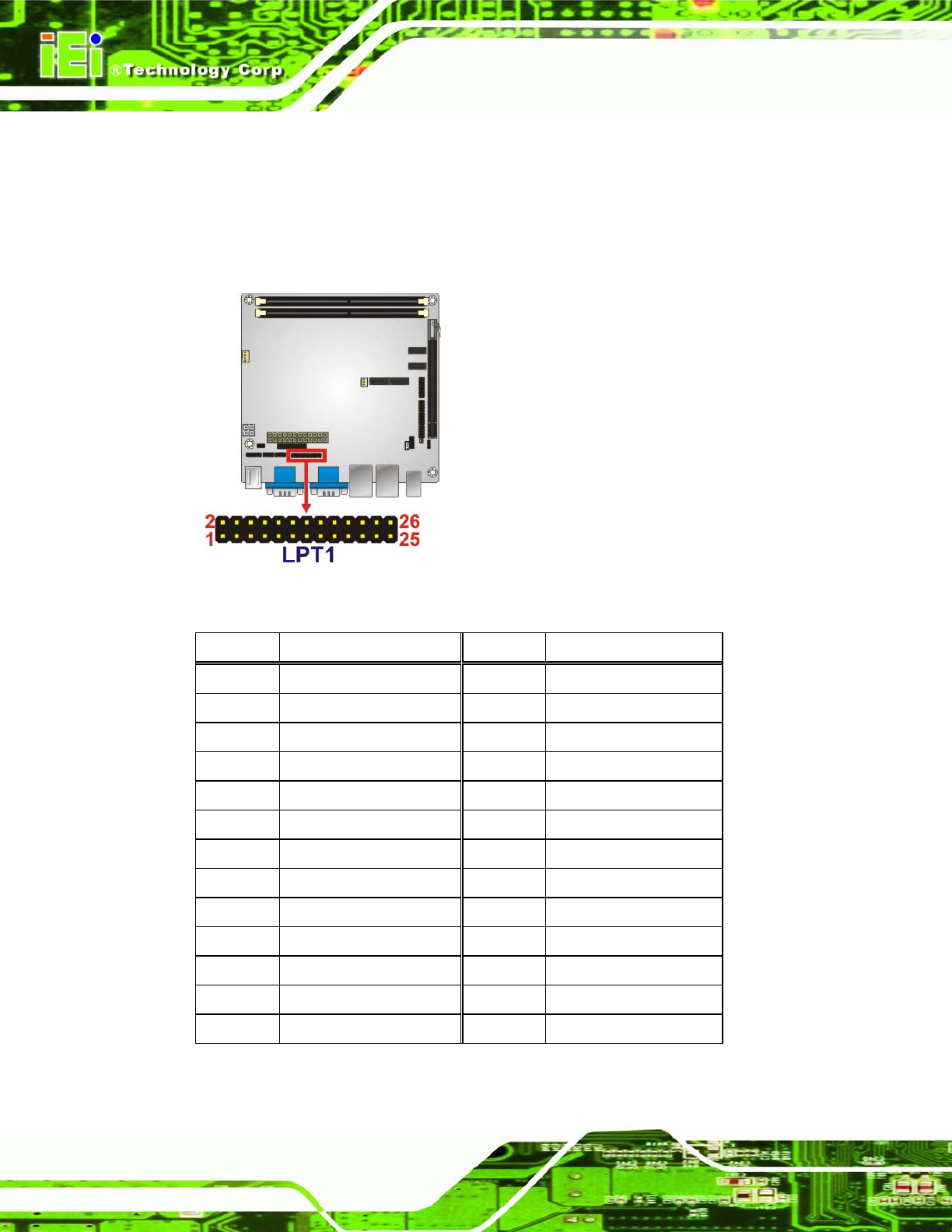

Figure 3-9: Parallel Port Connector Location
Pin Description Pin Description
1 -STB 2 -AFD
3 PTD0 4 -ERR
5 PTD1 6 -INITR
7 PTD2 8 -SLIN
9 PTD3 10 GND
11 PTD4 12 GND
13 PTD5 14 GND
15 PTD6 16 GND
17 PTD7 18 GND
19 -ACK 20 GND
21 BUSY 22 GND
23 PE 24 GND
25 SLCT 26 NC
Table 3-9: Parallel Port Connector Pinouts
