KINO-G410 Mini-ITX Motherboard
Page 21
FUNCTION PIN DESCRIPTION FUNCTION PIN DESCRIPTION
Power LED
1 LED+ Buzzer 2 BEEP_PWR
3 NC 4 NC
5 LED- 6 NC
Power
Button
7 BUTTON1 8 PC_BEEP
9 BUTTON2 -- 10 NC
HDD LED 11 HDD LED+ Reset 12 RESET
13 HDD LED- 14 GND
Table 3-8: Front Panel Connector Pinouts
3.2.7 Me m o ry Slot
CN Label: DIMM1, DIMM2
CN Type:
DIMM slot
CN Location:
See Figure 3-8
The DIMM slots are for DIMM memory modules.

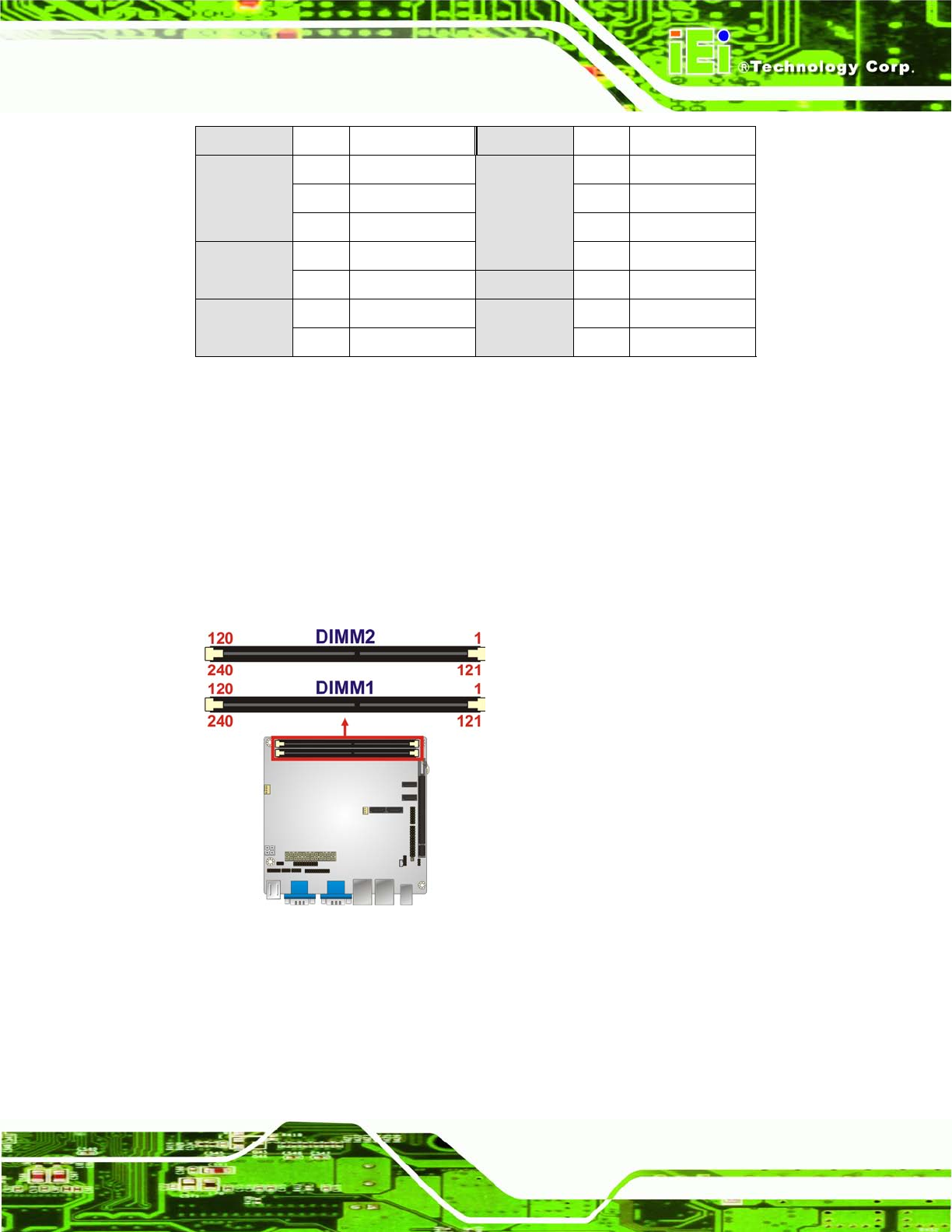

Figure 3-8: Memory Card Slot Location
3.2.8 Parallel Port Connector
CN Label: LPT1
CN Type:
26-pin header
