KINO-G410 Mini-ITX Motherboard
Page 19

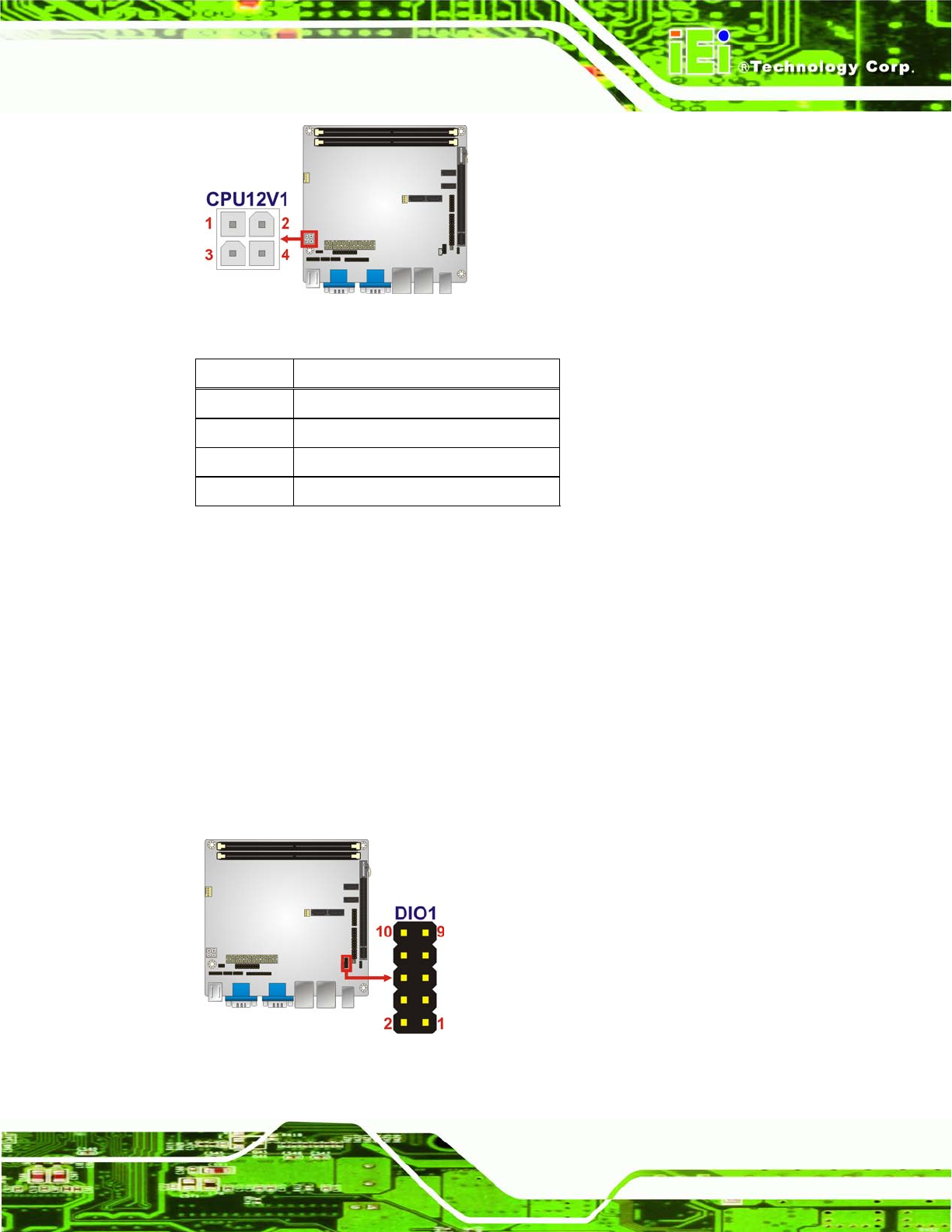

Figure 3-5: CPU Power Input Connector Location
Pin Description
1 GND
2 GND
3 +12 V
4 +12 V
Table 3-6: CPU Power Input Connector Pinouts
3.2.5 Digital I/O Connector
CN Label: DIO1
CN Type:
10-pin header
CN Location:
See Figure 3-6
CN Pinouts:
See Table 3-7
The digital I/O connector provides programmable input and output for external devices.
The digital I/O provides 4-bit output and 4-bit input.
Figure 3-6: Digital I/O Connector Locations
