KINO-G410 Mini-ITX Motherboard
Page 16
Connector Type Label
Audio connector Audio jack AUDIO_CV1
Keyboard/Mouse connector PS/2 KBMS1
LAN connector RJ-45 LAN1, LAN2
Serial port connector DB-9 COM1, COM2,
COM3
USB connector USB port USB01, USB23
VGA connector 15-pin Female VGA1
Table 3–2: External Peripheral Connectors
3.2 Internal Peripheral Connectors
The section describes all of the connectors on the KINO-G410.
3.2.1 Battery Connector
CN Label: BAT1
CN Type:
2-pin wafer
CN Location:
See Figure 3-2
CN Pinouts:
See Table 3-3
This is connected to the system battery. The battery provides power to the system clock to
retain the time when power is turned off.

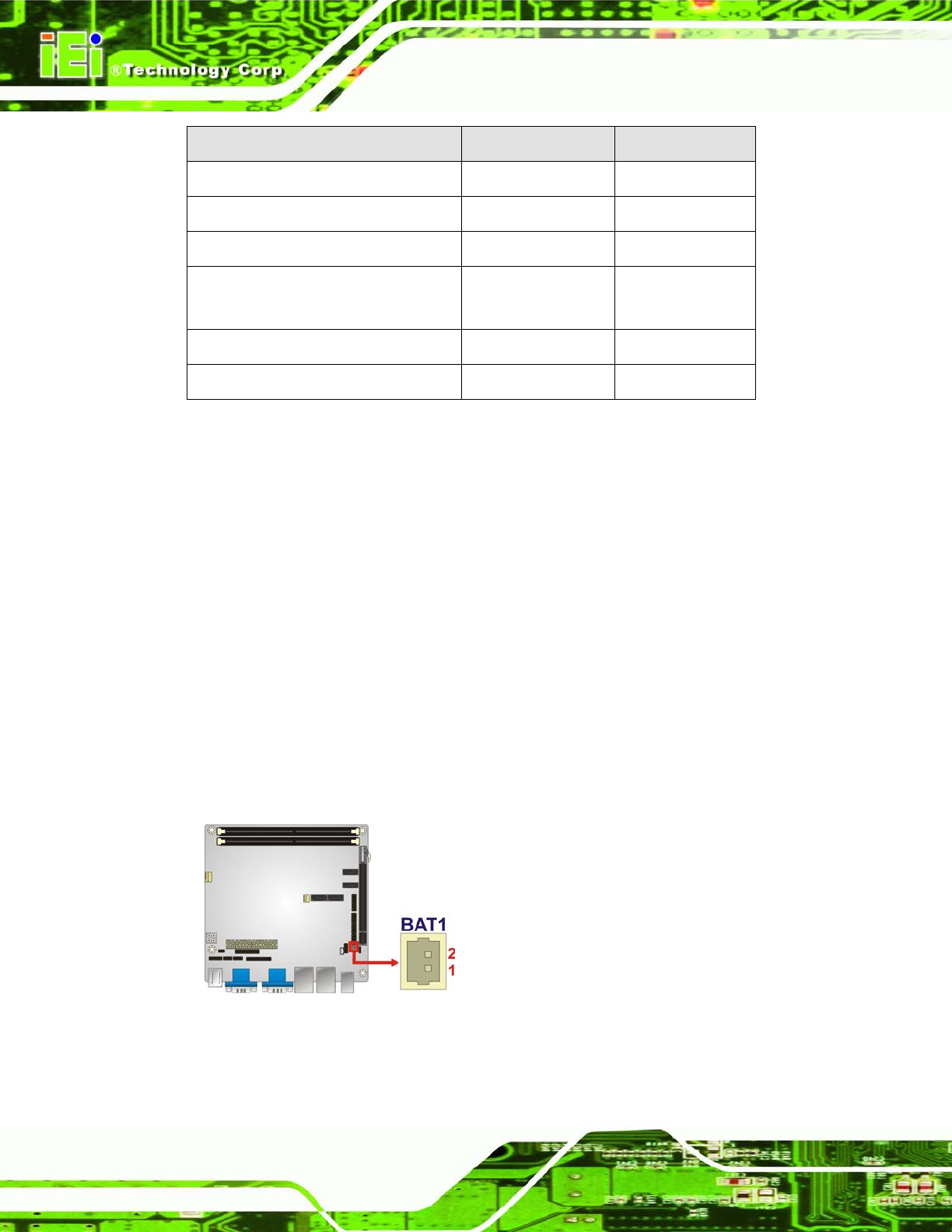

Figure 3-2: Battery Connector Location
