1.1 Introduction

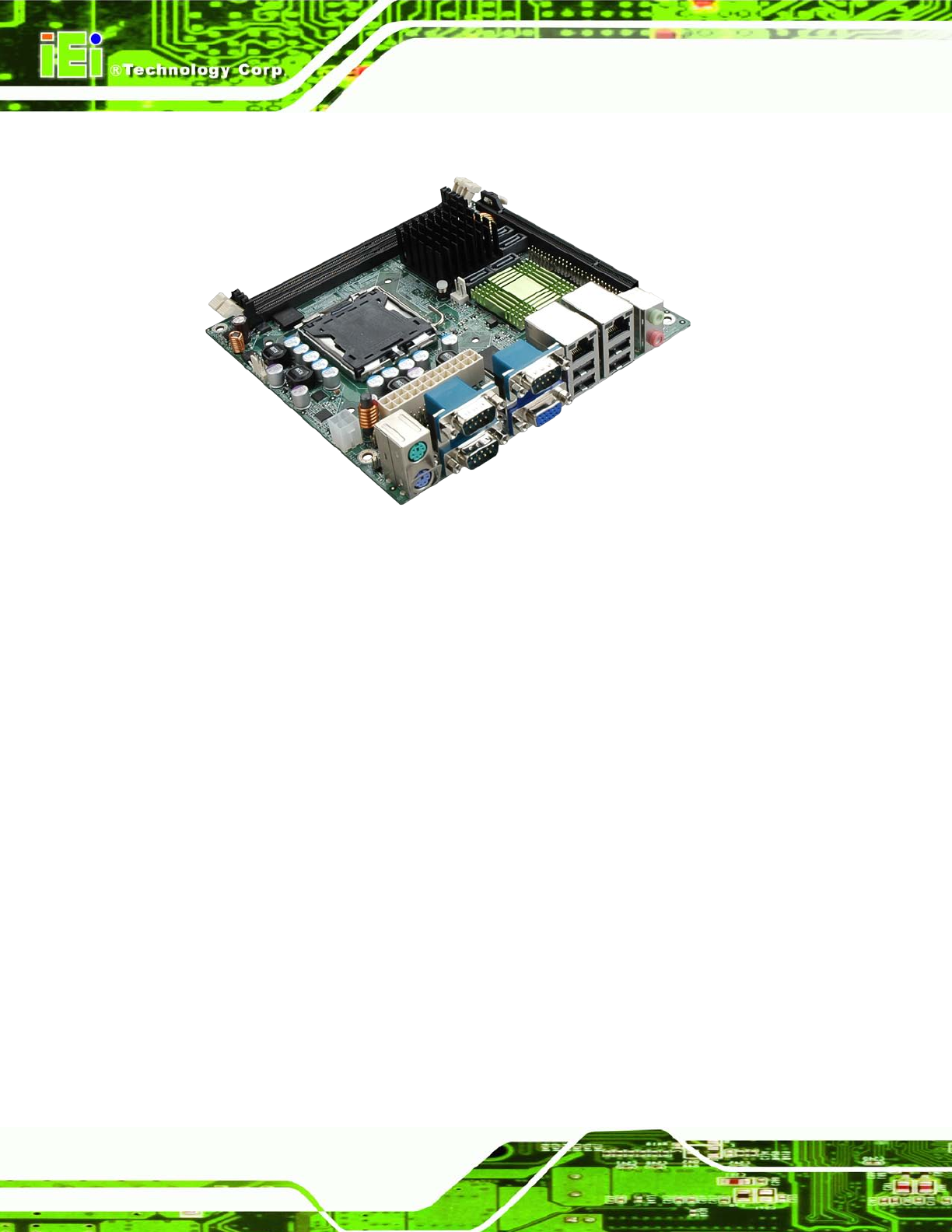

Figure 1-1: KINO-G410
The KINO-G410 is a Mini-ITX motherboard with an 800/1066/1333 MHz front side bus.
The LGA775 socket accepts Intel® Core™2 Duo/Quad/Extreme processors and the card
supports two DDR3 DIMMs up to 2.0 GB each (4.0 GB total). The KINO-G410 includes
VGA output and an optional 24-bit LVDS output. One PCIe x16 expansion card may be
added. Other features include four SATA 3Gb/s, dual Gigabit LAN, digital I/O, five RS-232
serial ports, one RS-232/422/485 serial ports, one parallel port, audio jacks and eight USB
ports.
1.2 Benefits
Some of the KINO-G410 motherboard benefits include:
 Powerful graphics
 Staying connected with both wired LAN connections
 Speedy running of multiple programs and applications
1.3 Features
Some of the KINO-G410 motherboard features are listed below:
 Mini-ITX form factor
