KINO-G410 Mini-ITX Motherboard
Page 124

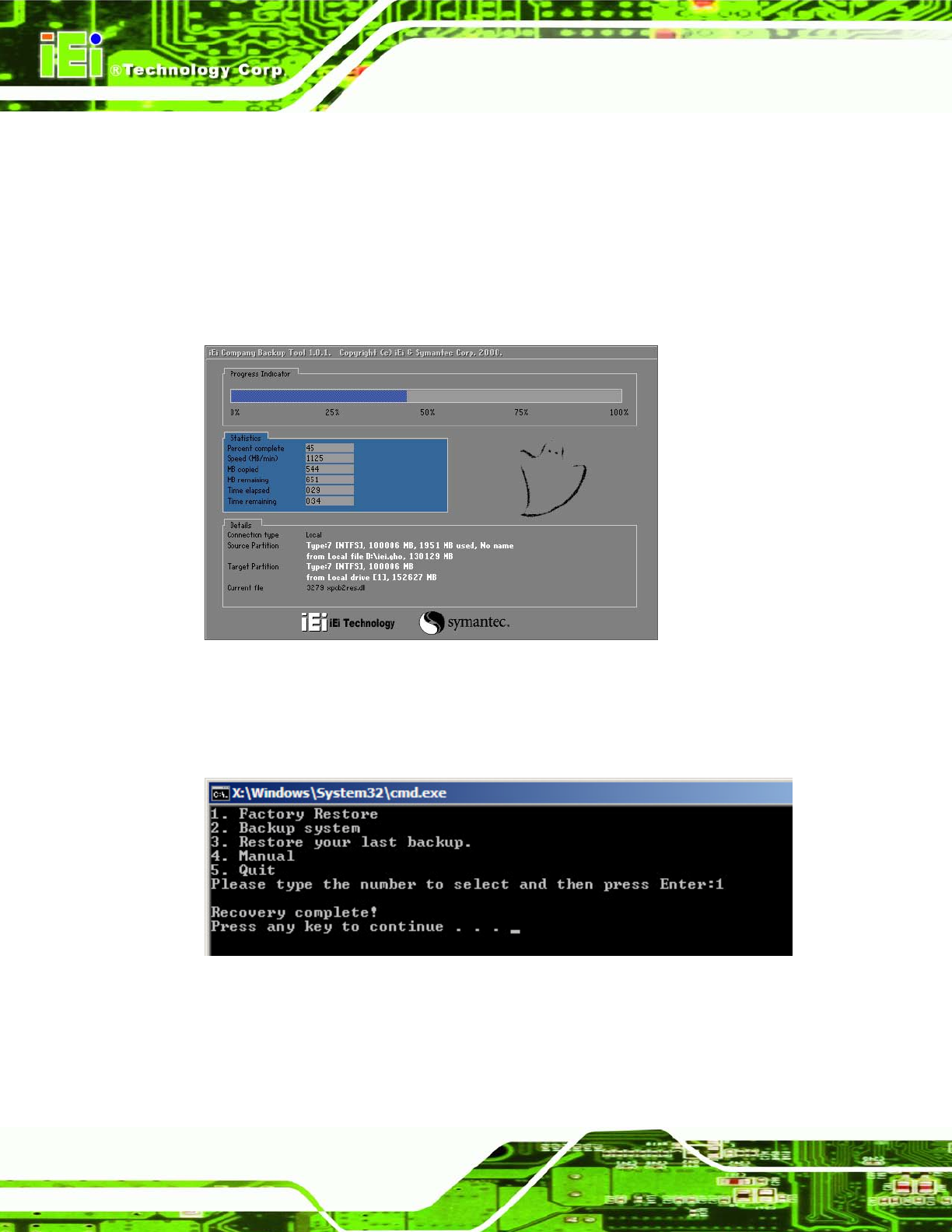

C.4.1 Factory Restore
To restore the factory default image, please follow the steps below.
Step 1: Type <1> and press <Enter> in the main menu.
Step 2: The Symantec Ghost window appears and starts to restore the factory default. A
factory default image called iei.GHO is created in the hidden Recovery partition.
Figure C-27: Restore Factory Default
Step 3: The screen is shown as in Figure C-28 when completed. Press any key to
reboot the system.
Figure C-28: Recovery Complete Window
