KINO-DQM871 Mini-ITX SBC
Page 74

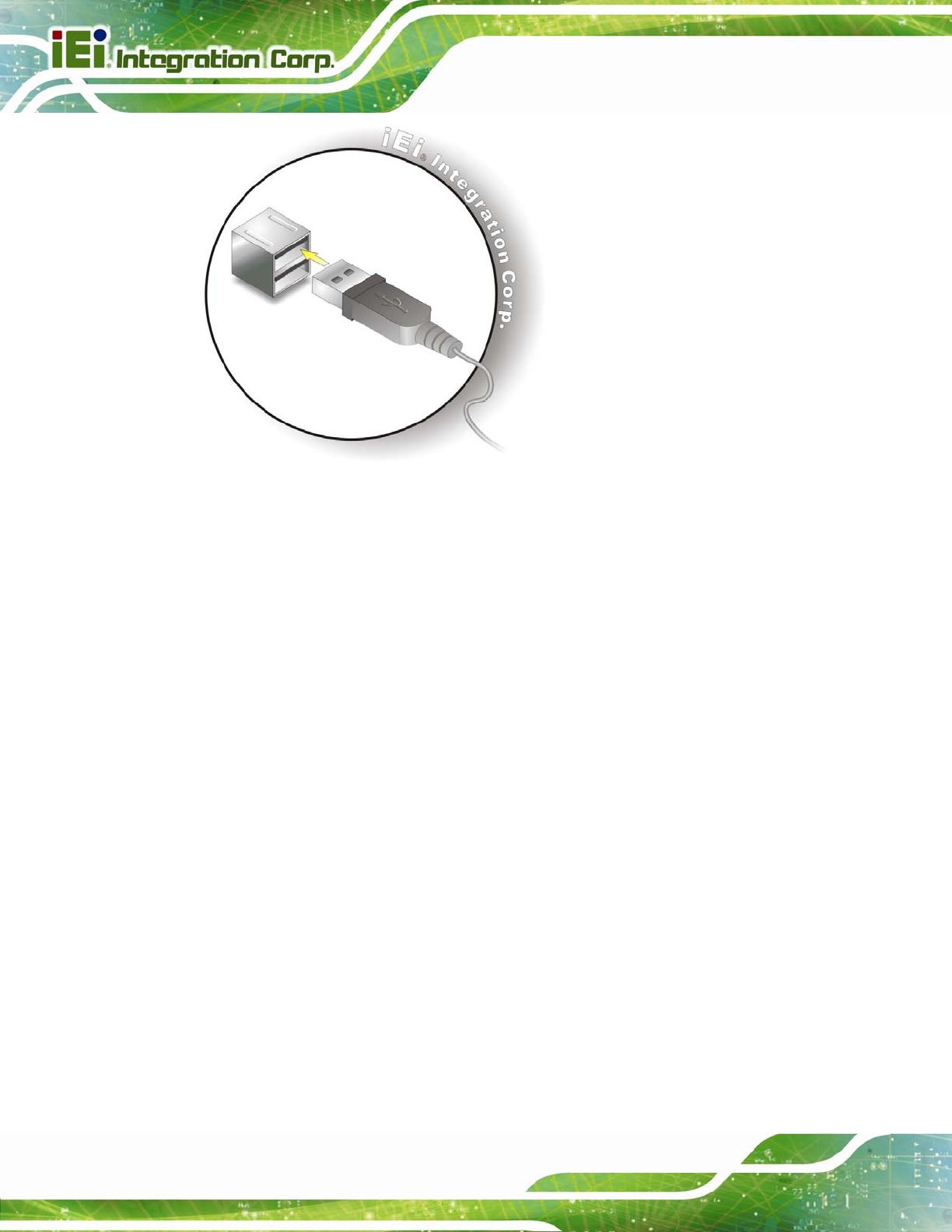

Figure 4-15: USB Connector
4.9.6 VGA Monitor Connection
The KINO-DQM871 has a single female D-sub 15 connector on the external peripheral
interface panel. The D-sub 15 connector is connected to a CRT or VGA monitor. To
connect a monitor to the KINO-DQM871, please follow the instructions below.
Step 1: Locate the female D-sub 15 connector. The location of the female D-sub 15
connector is shown in Chapter 3.
Step 2: Align the VGA connector. Align the male D-sub 15 connector on the VGA
screen cable with the female D-sub 15 connector on the external peripheral
interface.
Step 3: Insert the VGA connector. Once the connectors are properly aligned with the
insert the male connector from the VGA screen into the female connector on the
KINO-DQM871. See
Figure 4-16.
