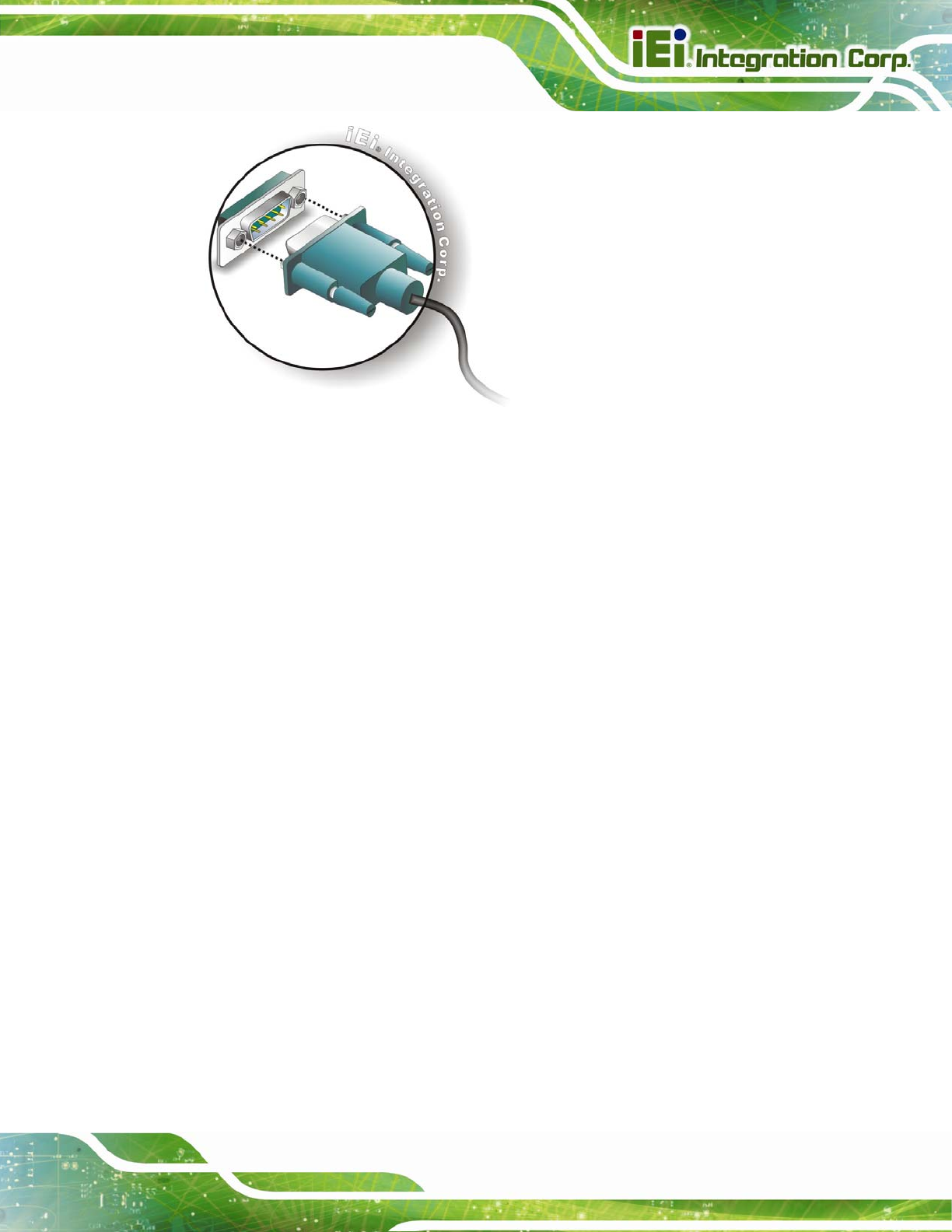

Figure 4-14: Serial Device Connector
Step 3: Secure the connector. Secure the serial device connector to the external
interface by tightening the two retention screws on either side of the connector.
Step 0:
4.9.5 USB Connection (Dual Connector)
The external USB 2.0/USB 3.0 connectors provide easier and quicker access to external
USB devices. Follow the steps below to connect USB devices to the KINO-DQM871.
Step 1: Locate the USB 2.0/USB 3.0 connectors. The locations of the
USB 2.0/USB 3.0 connectors are shown in Chapter 3.
Step 2: Insert a USB 2.0/USB 3.0 plug. Insert the USB 2.0/USB 3.0 plug of a device
into the USB 2.0/3.0 on the external peripheral interface. See
Figure 4-15.
