KINO-DQM871 Mini-ITX SBC
Page 72

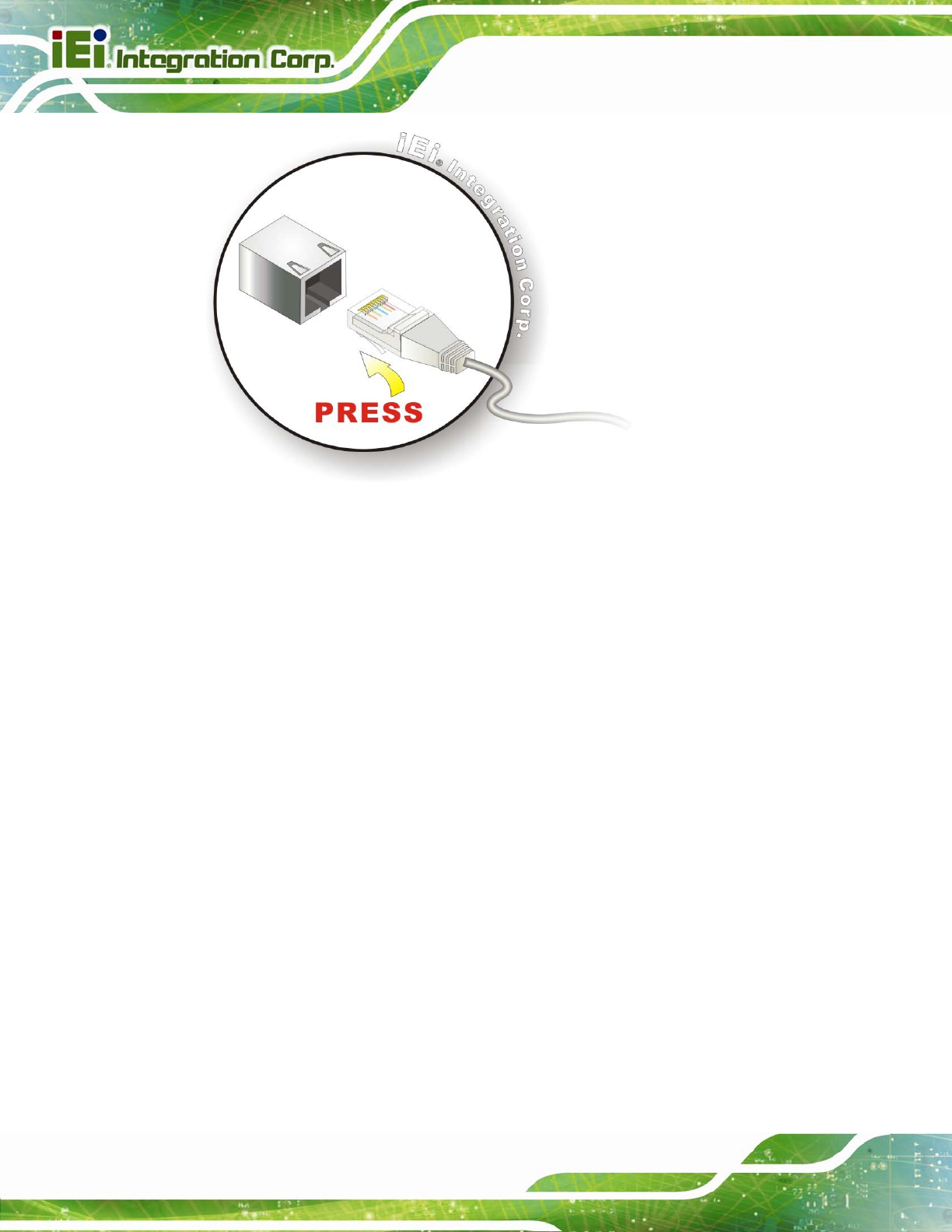

Figure 4-13: LAN Connection
Step 3: Insert the LAN cable RJ-45 connector. Once aligned, gently insert the LAN
cable RJ-45 connector into the on-board RJ-45 connector. Step 0:
4.9.4 Serial Device Connection
The KINO-DQM871 has a single male D-sub 9 connector on the external peripheral
interface panel for a serial device. Follow the steps below to connect a serial device to the
KINO-DQM871.
Step 1: Locate the D-sub 9 connector. The location of the D-sub 9 connector is shown
in Chapter 3.
Step 2: Insert the serial connector. Insert the D-sub 9 connector of a serial device into
the D-sub 9 connector on the external peripheral interface. See
Figure 4-14.
