KINO-DQM871 Mini-ITX SBC
Page 70

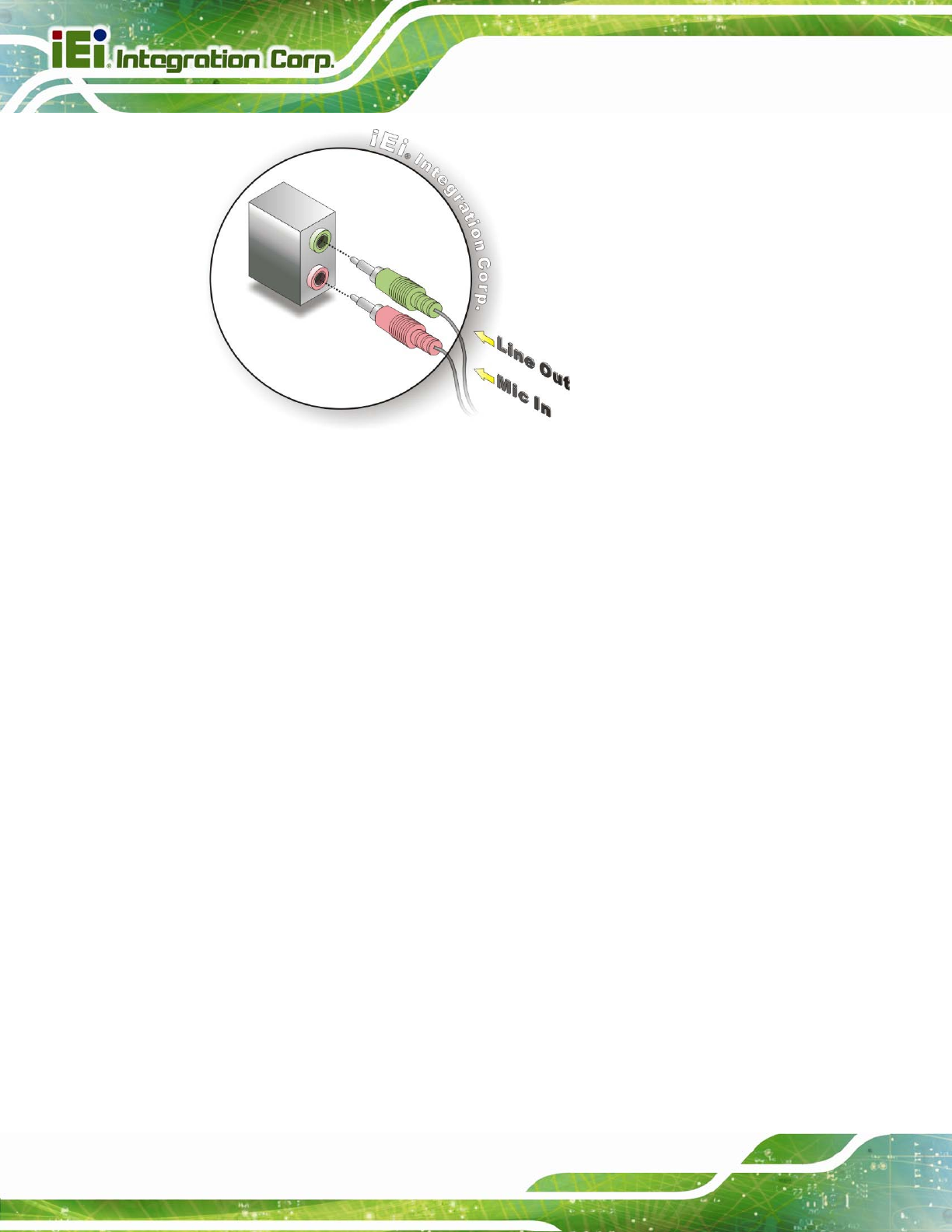

Figure 4-11: Audio Connector
Step 3: Check audio clarity. Check that the sound is coming through the right speakers
by adjusting the balance front to rear and left to right. Step 0:
4.9.2 HDMI Display Device Connection
The HDMI connector transmits a digital signal to compatible HDMI display devices such
as a TV or computer screen. To connect the HDMI cable to the KINO-DQM871, follow the
steps below.
Step 1: Locate the HDMI connector. The location is shown in Chapter 3.
Step 2: Align the connector. Align the HDMI connector with the HDMI port. Make sure
the orientation of the connector is correct.
