4.3 Cooling Kit Installation
An IEI CPU cooling kit can be purchased separately (See Chapter 2). The cooling kit is
comprised of a CPU heat sink and a cooling fan.
WARNING:
Do not wipe off (accidentally or otherwise) the pre-sprayed layer of
thermal paste on the bottom of the heat sink. The thermal paste
between the CPU and the heat sink is important for optimum heat
dissipation.
To install the cooling kit, please follow the steps below.
Step 1: Install the support bracket. Remove the tape from the support bracket. From
the solder side of the board, align the support bracket to the holes on board and
stick in place.

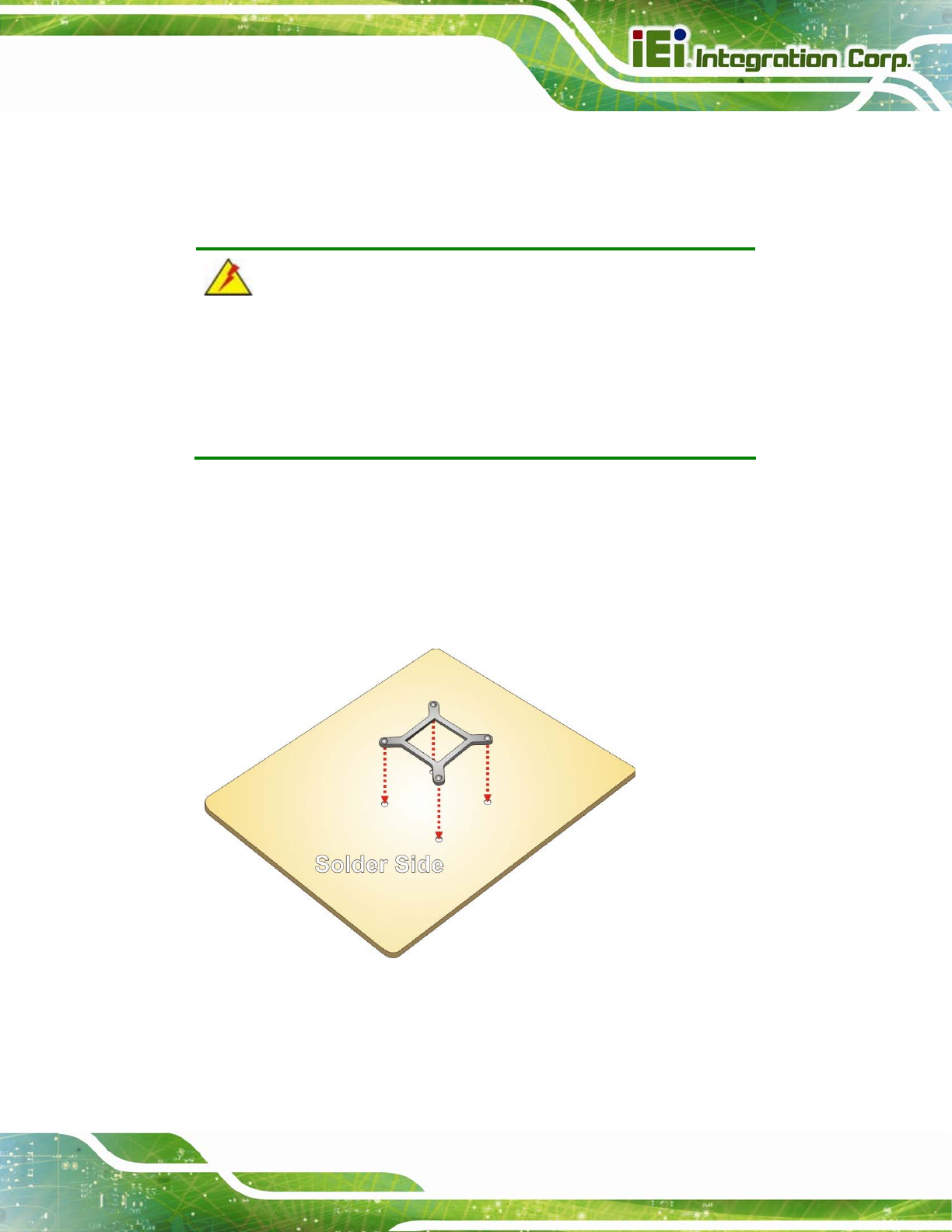

Figure 4-1: Install Support Bracket
