Pin Description Pin Description
1 HDMI_DATA2 11 GND
2 GND 12 HDMI_CLK#
3 HDMI_DATA2# 13 N/C
4 HDMI_DATA1 14 N/C
5 GND 15 HDMI_SCL
6 HDMI_DATA1# 16 HDMI_SDA
7 HDMI_DATA0 17 GND
8 GND 18 +5V
9 HDMI_DATA0# 19 HDMI_HPD
10 HDMI_CLK+

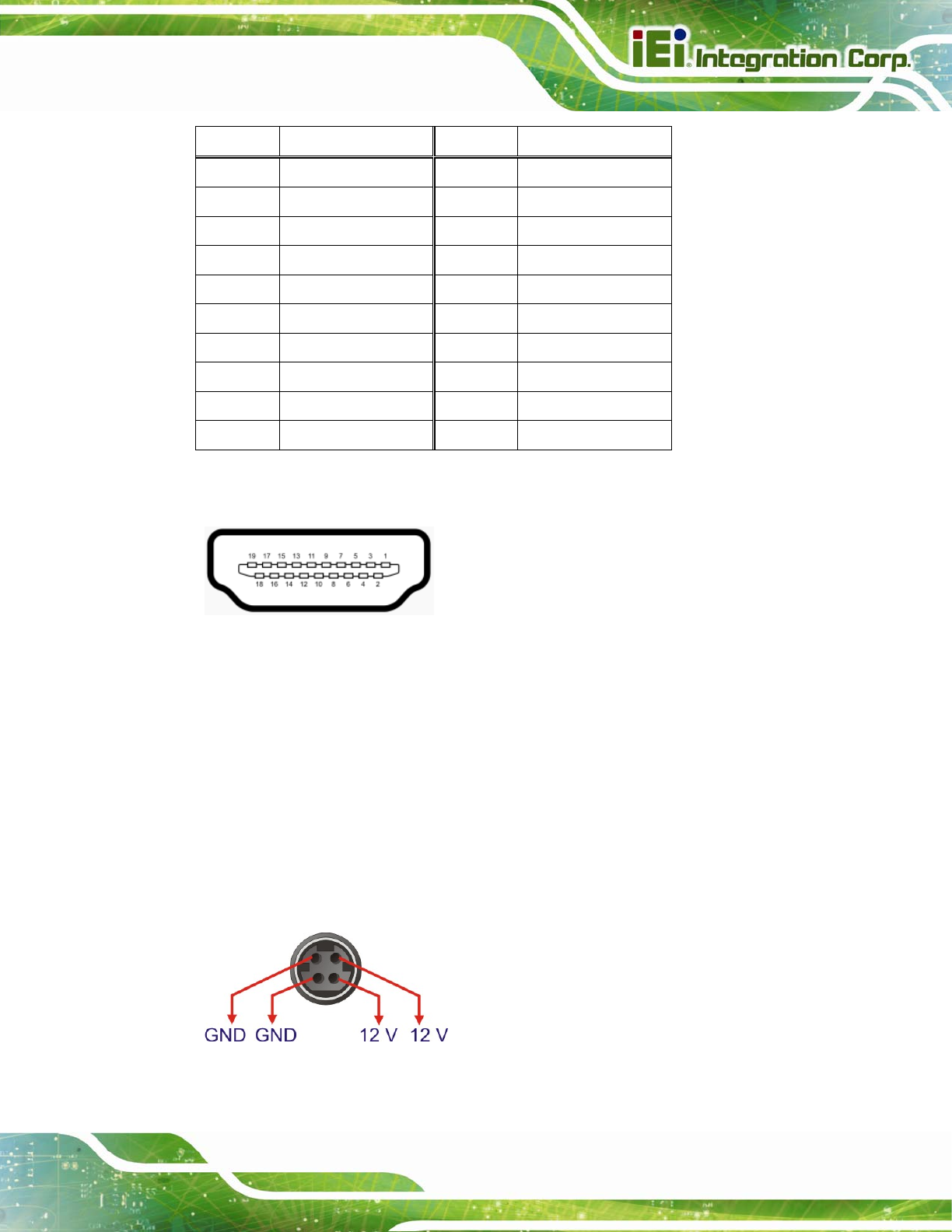

Table 3-38: HDMI Connector Pinouts
Figure 3-35: HDMI Connector
3.3.5 Power Connector (12 V, Power Adapter)
CN Label: PWR1
CN Type:
4-pin Mini-DIN
CN Location:
See Figure 3-31
CN Pinouts:
See Figure 3-36
The connector supports the 12V power adapter.
Figure 3-36: 4-pin Power Mini-DIN Connection
