KINO-DQM871 Mini-ITX SBC
Page 52

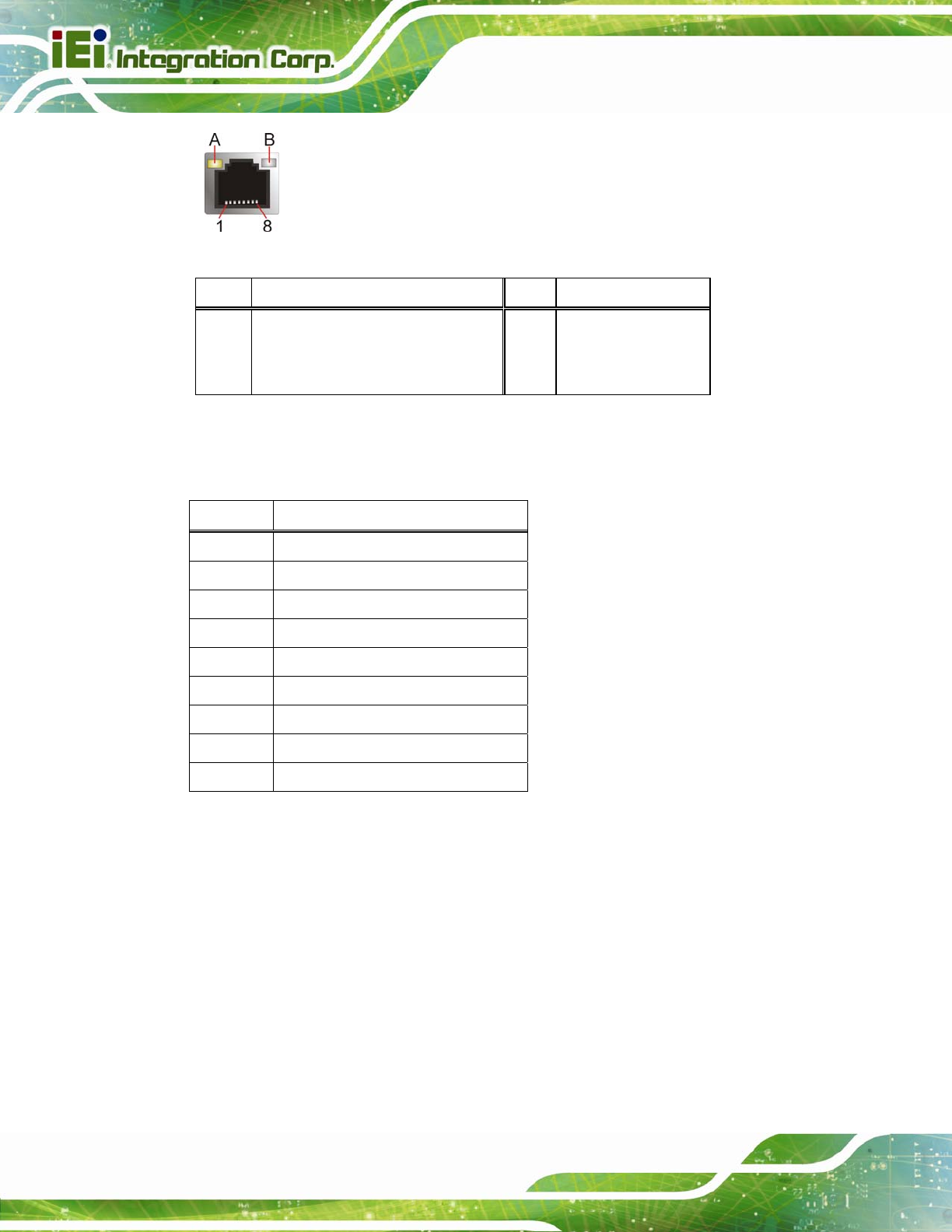

Figure 3-34: Ethernet Connector
LED Description LED Description
A on: linked
blinking: data is being sent/received
B off: 10 Mb/s
green: 100 Mb/s
orange: 1000 Mb/s
Table 3-36: Connector LEDs
The USB 3.0 connector can be connected to a USB device.
Pin Description
1 VBUS
2 D1-
3 D1+
4 GND1
5 STDA_SSRX1_N
6 STDA_SSRX1_P
7 GND_DRAIN
8 STDA_SSTX1_N
9 STDA_SSTX1_P
Table 3-37: External USB 3.0 Port Pinouts
3.3.4 HDMI Connectors
CN Label: HDMI1, HDMI2
CN Type:
HDMI connector
CN Location:
See
Figure 3-31
CN Pinouts:
See
Table 3-38 and Figure 3-35
The HDMI connector connects to a display device with HDMI interface.
