KINO-DQM871 Mini-ITX SBC
Page 50

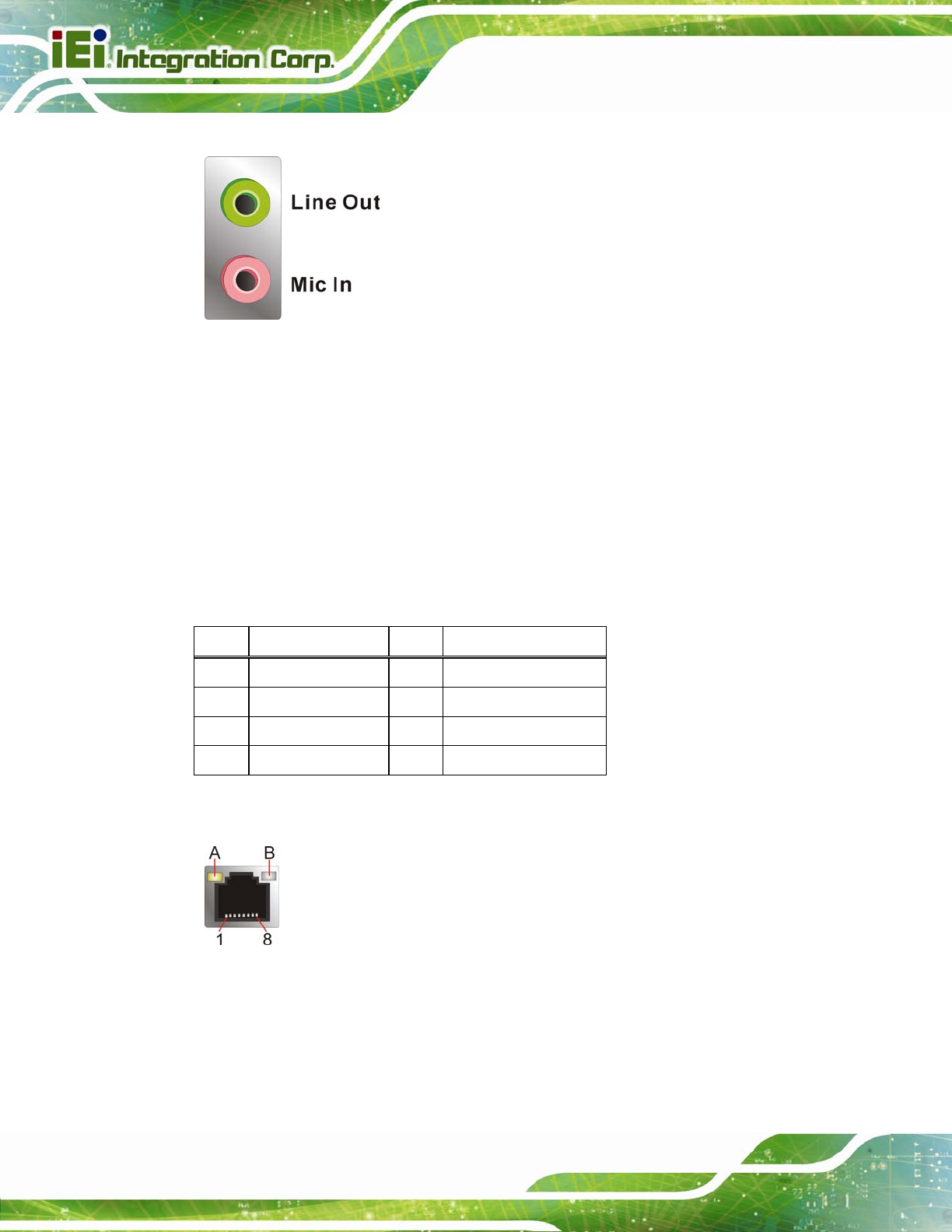

Figure 3-32: Audio Jacks
3.3.2 Ethernet and USB 2.0 Connectors
CN Label: LAN2_USB2
CN Type:
RJ-45 and USB 2.0 combo connector
CN Location:
See Figure 3-31
CN Pinouts:
See Table 3-32 and Table 3-34
The LAN connector connects to a local network.
PIN DESCRIPTION PIN DESCRIPTION
1 MDIA0+ 5 MDIA2-
2 MDIA0- 6 MDIA1-
3 MDIA1+ 7 MDIA3+
4 MDIA2+ 8 MDIA3-
Table 3-32: LAN2 Pinouts
Figure 3-33: Ethernet Connector
