KINO-DQM871 Mini-ITX SBC
Page 49
Pin Description Pin Description
7 GND 17 USB3_RXDP4_C
8 USB2_DN3 18 USB3_RXDN4_C
9 USB2_DP3 19 +5V
10 NC
Table 3-31: USB 3.0/2.0 Connector Pinouts
3.3 External Interface Connectors
Figure 3-31 shows the KINO-DQM871 motherboard external interface connectors. The
KINO-DQM871 on-board external interface connectors are shown in
Figure 3-31.

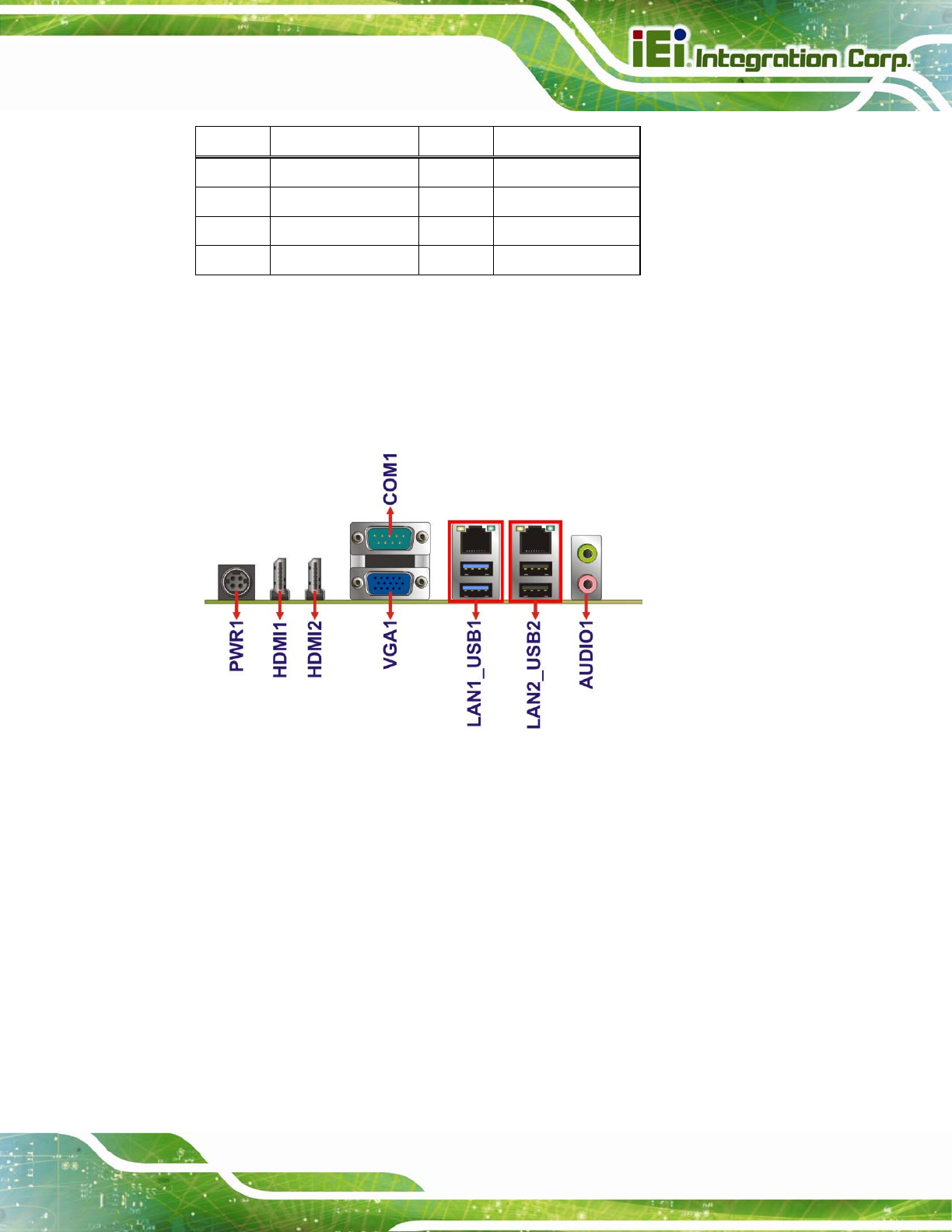

Figure 3-31: External Interface Connectors
3.3.1 Audio Connector
CN Label: AUDIO1
CN Type:
Audio jack
CN Location:
See Figure 3-31
The audio jacks connect to external audio devices.
Line Out port (Lime): Connects to a headphone or a speaker. With
multi-channel configurations, this port can also connect to front speakers.
Microphone (Pink): Connects a microphone.
