KINO-DQM871 Mini-ITX SBC
Page 48
Pin Description Pin Description
3 DATA- 4 DATA+
5 DATA+ 6 DATA-
7 GND 8 VCC
Table 3-30: USB Port Connector Pinouts
3.2.29 USB 3.0/2.0 Connector
CN Label: CN1
CN Type:
20-pin box header
CN Location:
See
Figure 3-30
CN Pinouts:
See
Table 3-31
The connector supports two USB 3.0 ports and two USB 2.0 ports connection.

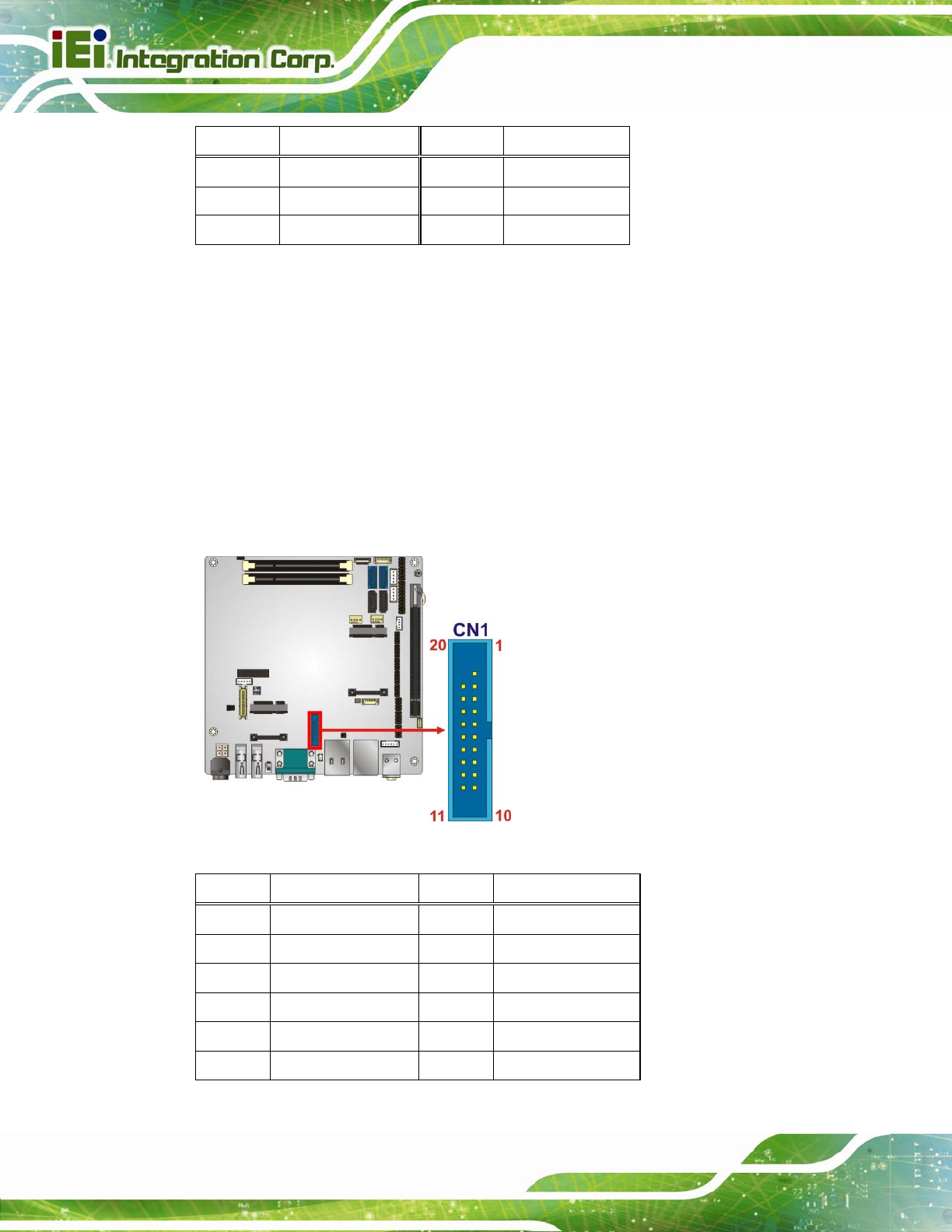

Figure 3-30: USB 3.0/2.0 Connector Location
Pin Description Pin Description
1 +5V 11 USB2_DP2
2 USB3_RXDN5_C 12 USB2_DN2
3 USB3_RXDP5_C 13 GND
4 GND 14 USB3_TXDP4_C
5 USB3_TXDN5_C 15 USB3_TXDN4_C
6 USB3_TXDP5_C 16 GND
