KINO-DQM871 Mini-ITX SBC
Page 47
Pin Description Pin Description
5 LRERST# 6 +5V
7 LAD3 8 LAD2
9 +3V 10 LAD1
11 LAD0 12 GND
13 SCL 14 SDA
15 SB3V 16 SERIRQ
17 GND 18 GLKRUN#
19 LPCPD# 20 LDRQ#
Table 3-29: TPM Connector Pinouts
3.2.28 USB 2.0 Connectors
CN Label: USB1, USB2, USB3
CN Type:
8-pin header
CN Location:
See
Figure 3-29
CN Pinouts:
See
Table 3-30
The USB header can connect to two USB devices.

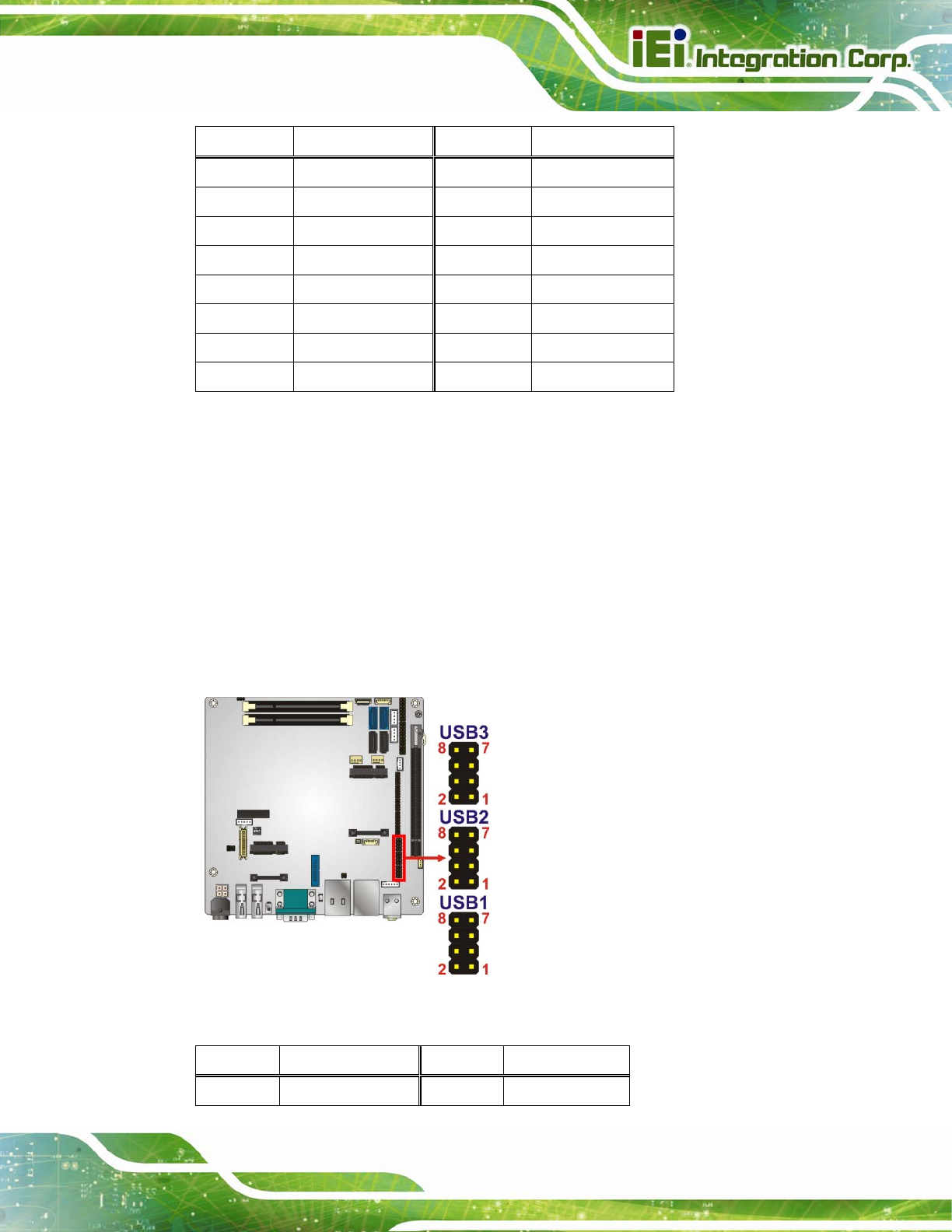

Figure 3-29: USB Connector Locations
Pin Description Pin Description
1 VCC 2 GND
