KINO-DQM871 Mini-ITX SBC
Page 46
Pin Description
1 +V3.3M_SPI_CON_EC
2 SPI_CS#0_CN_EC
3 SPI_SO_SW_EC
4 SPI_CLK_SW_EC
5 SPI_SI_SW_EC
6 GND
Table 3-28: EC SPI Flash Connector Pinouts
3.2.27 TPM Connector
CN Label: TPM1
CN Type:
20-pin header
CN Location:
See
Figure 3-28
CN Pinouts:
See
Table 3-29
The Trusted Platform Module (TPM) connector secures the system on bootup.

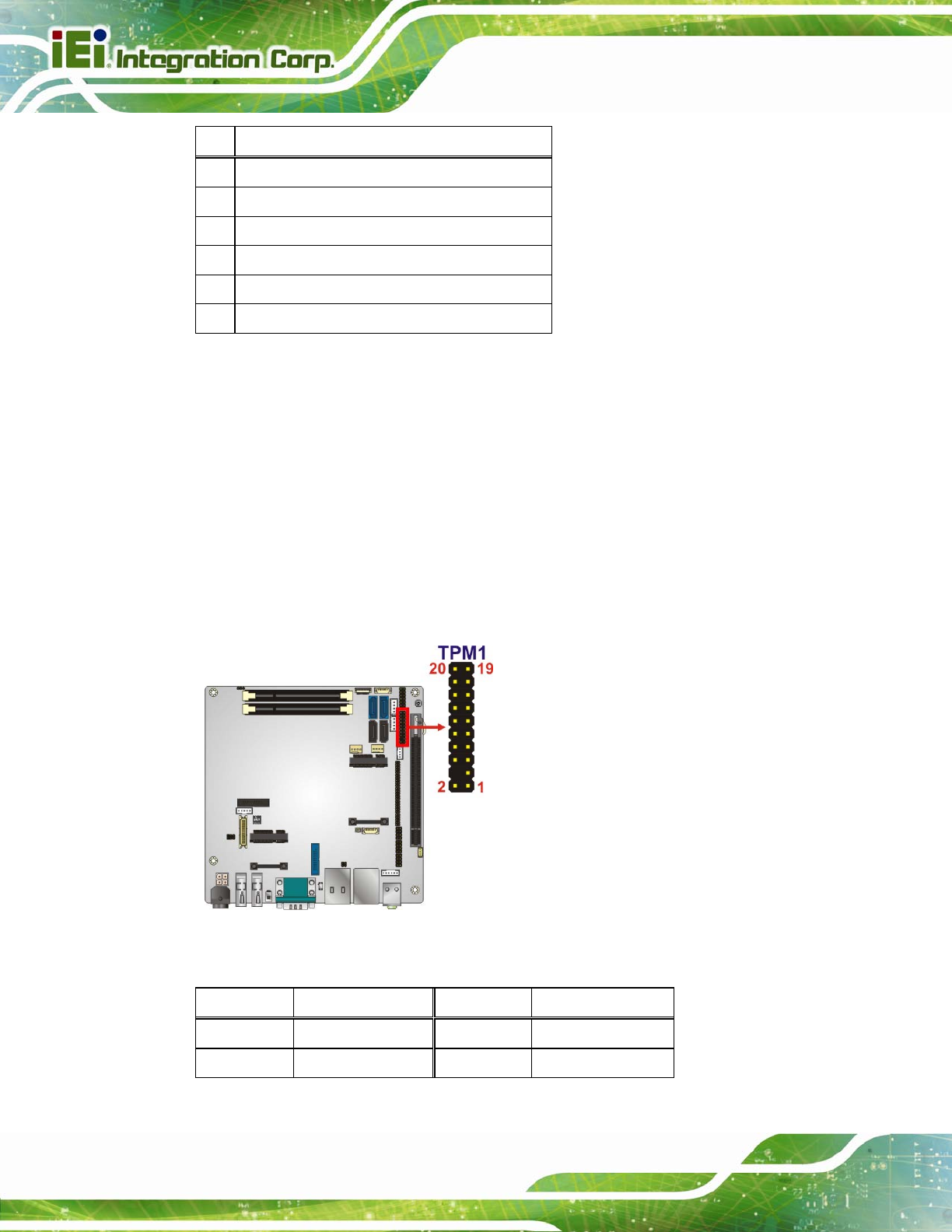

Figure 3-28: TPM Connector Location
Pin Description Pin Description
1 LCLK 2 GND
3 LFRAME# 4 KEY
