KINO-DQM871 Mini-ITX SBC
Page 45
Pin Description
1 +V3.3M_SPI_CON
2 SPI_CS#0_CN
3 SPI_SO_SW
4 SPI_CLK_SW
5 SPI_SI_SW
6 GND
Table 3-27: SPI Flash Connector Pinouts
3.2.26 SPI Flash Connector (EC)
CN Label: JSPI1
CN Type:
6-pin wafer
CN Location:
See
Figure 3-27
CN Pinouts:
See
Table 3-28
The 6-pin EC SPI Flash connector is used to flash the BIOS.

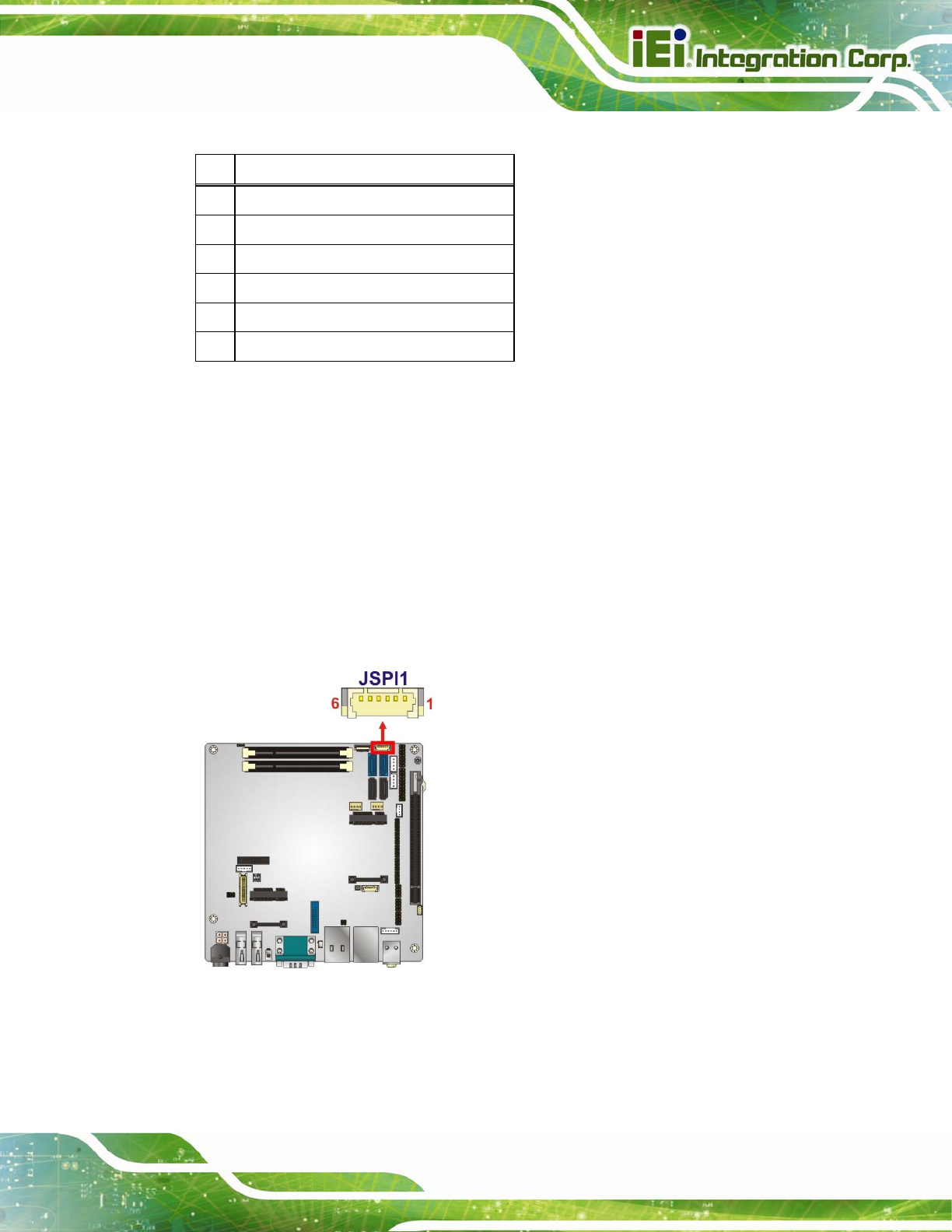

Figure 3-27: EC SPI Flash Connector Location
