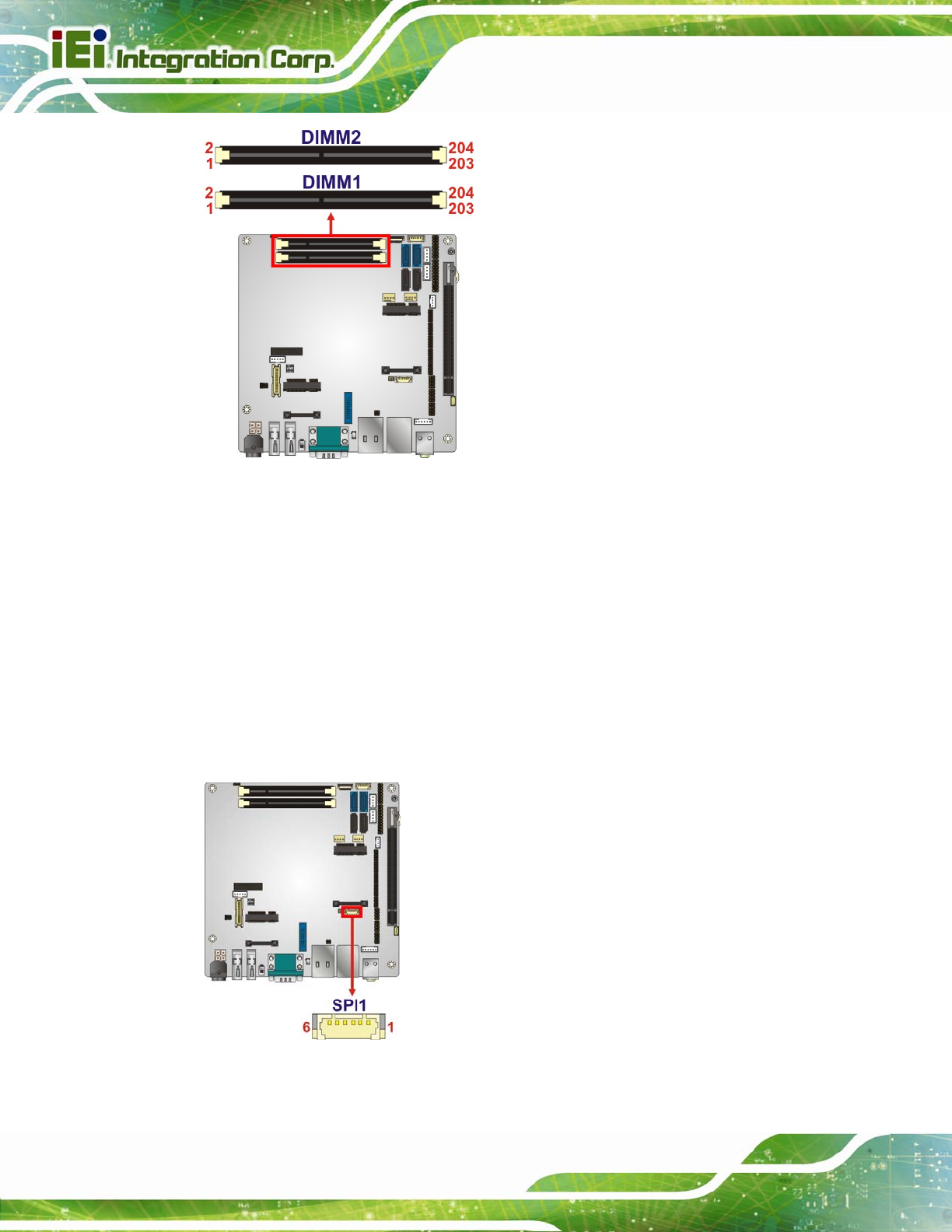

Figure 3-25: SO-DIMM Connector Locations
3.2.25 SPI Flash Connector
CN Label: SPI1
CN Type:
6-pin wafer
CN Location:
See
Figure 3-26
CN Pinouts:
See
Table 3-27
The 6-pin SPI Flash connector is used to flash the BIOS.
Figure 3-26: SPI Flash Connector Location
