KINO-DQM871 Mini-ITX SBC
Page 43

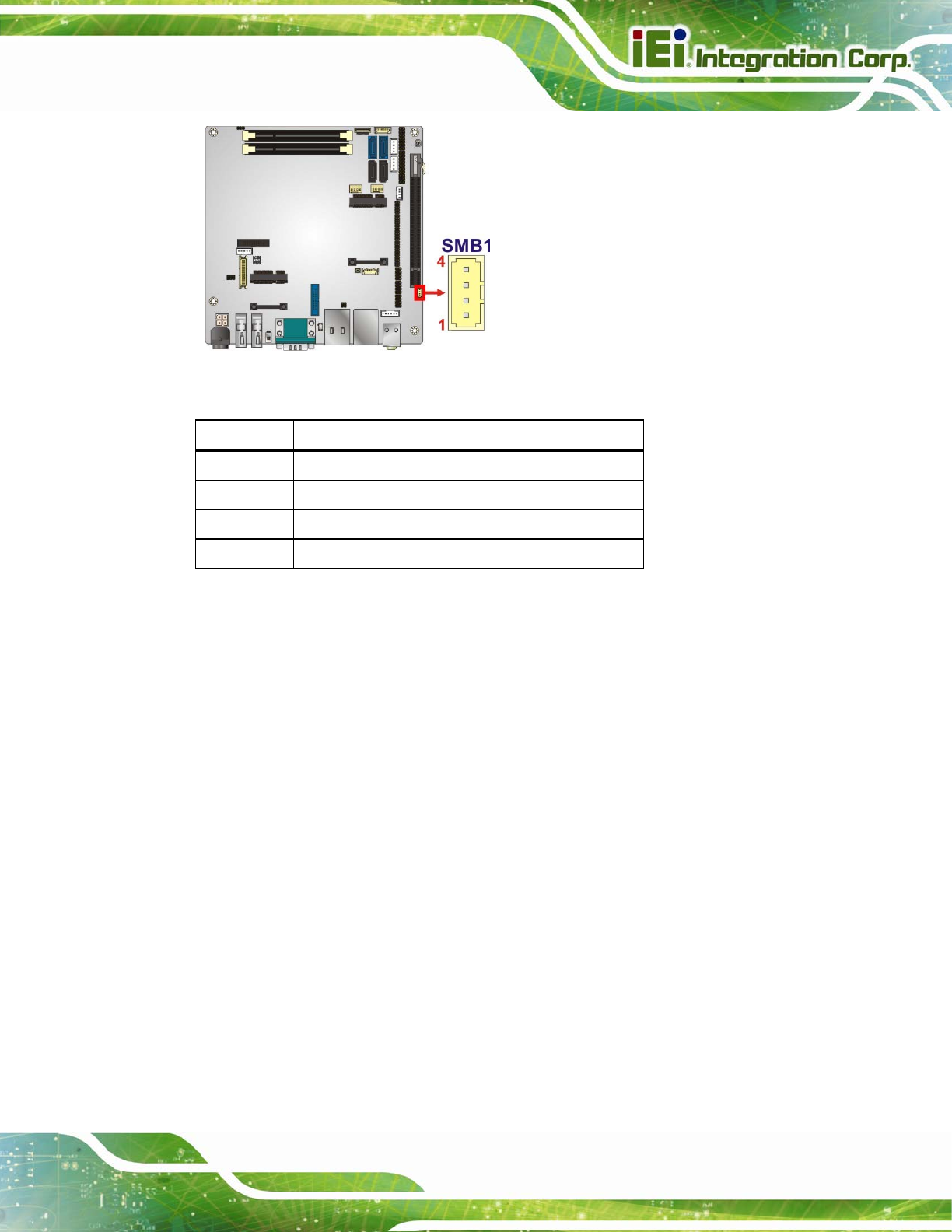

Figure 3-24: SMBus Connector Location
Pin Description
1 GND
2 SMB_DATA
3 SMB_CLK
4 +V5S
Table 3-26: SMBus Connector Pinouts
3.2.24 SO-DIMM Connectors
CN Label: DIMM1, DIMM2
CN Type:
204-pin DDR3 SO-DIMM connector
CN Location:
See
Figure 3-25
The SO-DIMM connector is for installing memory on the system.
