KINO-DQM871 Mini-ITX SBC
Page 41
The SATA connectors connect to SATA hard drives or optical drives with data transfer
speeds as high as 3Gb/s.

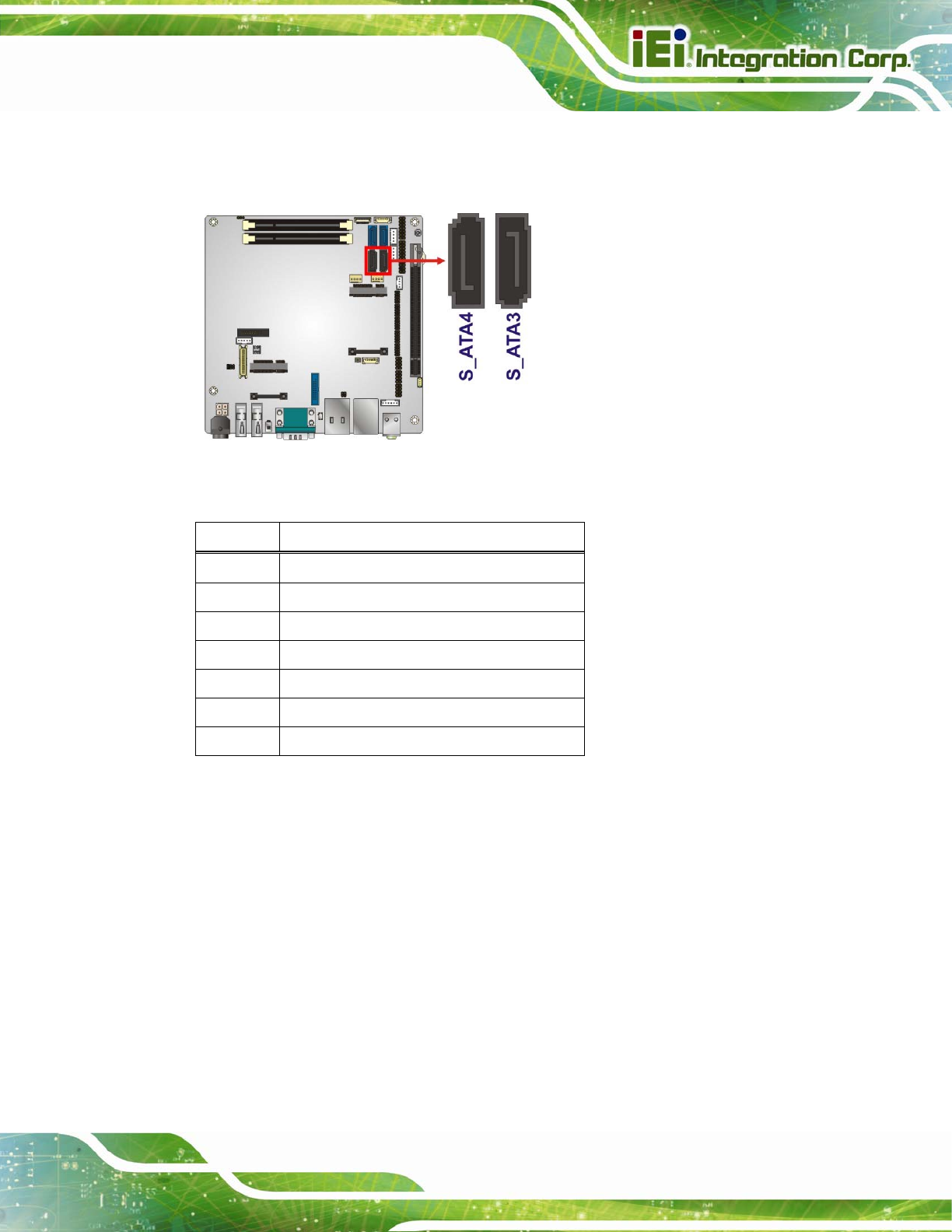

Figure 3-22: SATA 3Gb/s Drive Connector Locations
Pin Description
1 GND
2 TX+
3 TX-
4 GND
5 RX-
6 RX+
7 GND
Table 3-24: SATA 3Gb/s Drive Connector Pinouts
3.2.22 SATA Power Connectors
CN Label: SATA_PWR1, SATA_PWR2
CN Type:
4-pin wafer
CN Location:
See
Figure 3-23
CN Pinouts:
See
Table 3-25
Use the SATA Power Connector to connect to SATA device power connections.
