KINO-DQM871 Mini-ITX SBC
Page 40
CN Pinouts:
See
Table 3-23
The SATA connectors connect to SATA hard drives or optical drives with data transfer
speeds as high as 6Gb/s.

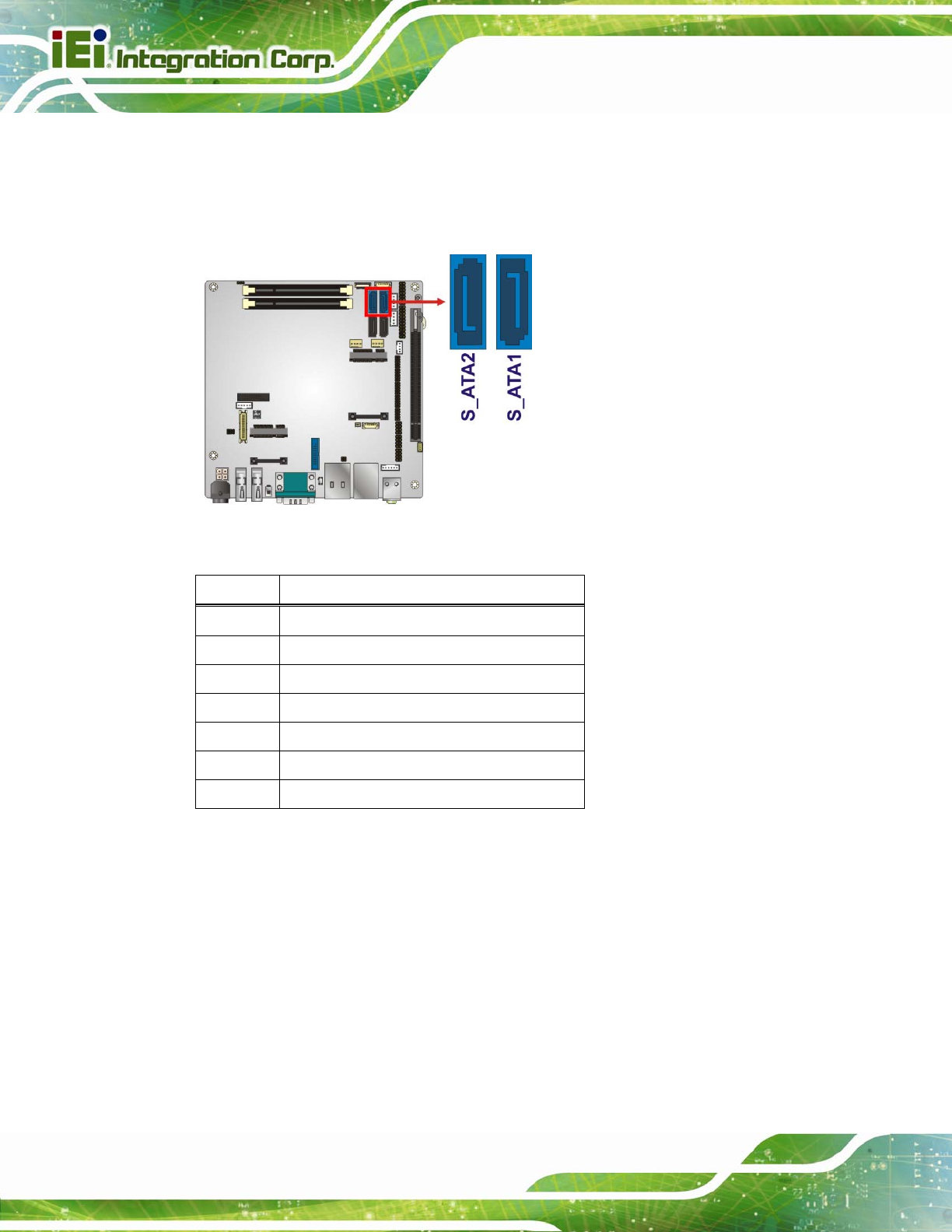

Figure 3-21: SATA 6Gb/s Drive Connector Locations
Pin Description
1 GND
2 TX+
3 TX-
4 GND
5 RX-
6 RX+
7 GND
Table 3-23: SATA 6Gb/s Drive Connector Pinouts
3.2.21 SATA 3Gb/s Drive Connectors
CN Label: S_ATA3, S_ATA4
CN Type:
7-pin SATA drive connectors
CN Location:
See
Figure 3-22
CN Pinouts:
See
Table 3-24
