KINO-DQM871 Mini-ITX SBC
Page 39

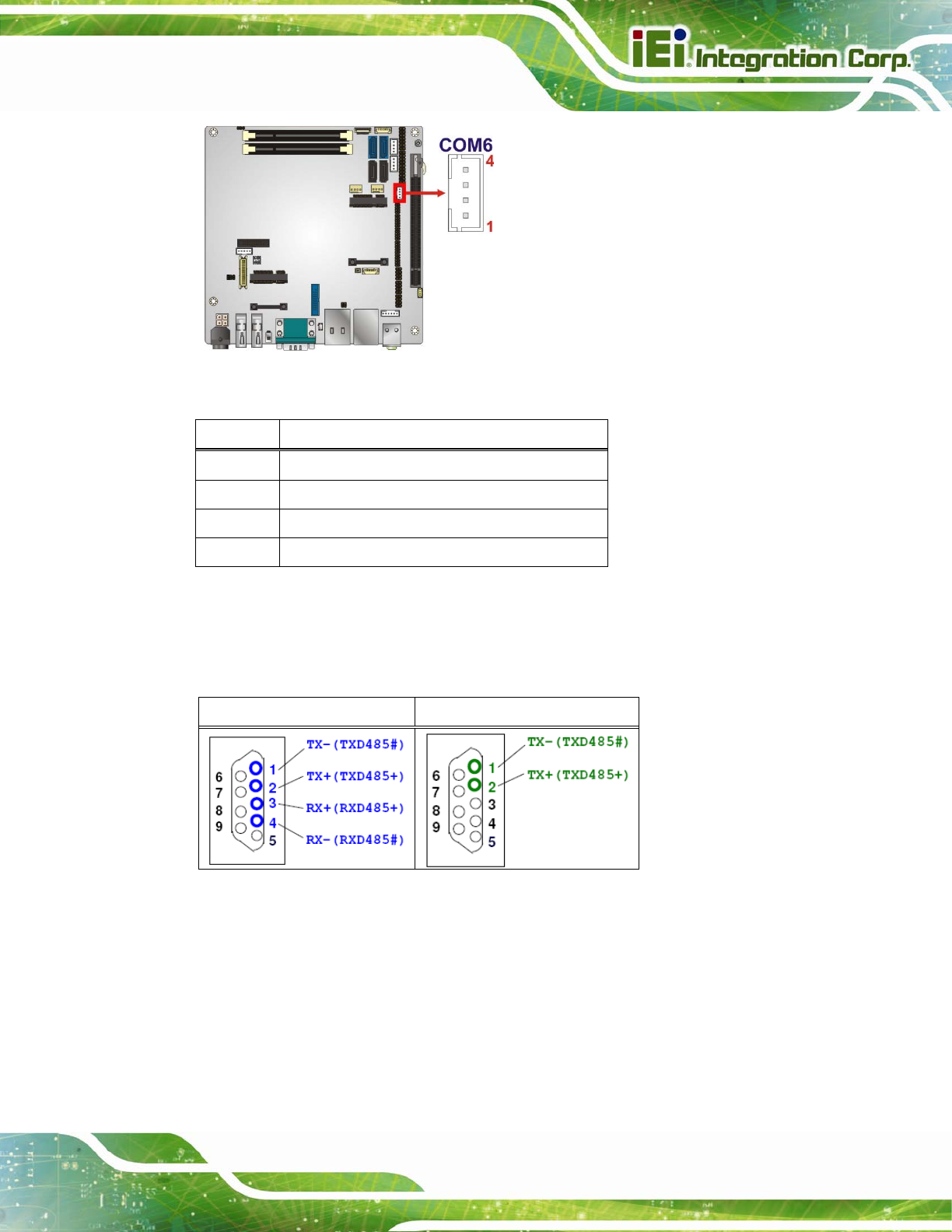

Figure 3-20: RS-422/485 Serial Port Connector Location
Pin Description
1 RXD422-
2 RXD422+
3 TXD422+/TXD485+
4 TXD422-/TXD485-
Table 3-21: RS-422/485 Serial Port Connector Pinouts
Use the optional RS-422/485 cable to connect to a serial device. The pinouts of the
D-sub 9 connector are listed below.
RS-422 Pinouts RS-485 Pinouts
Table 3-22: D-sub 9 RS-422/485 Pinouts
3.2.20 SATA 6Gb/s Drive Connectors
CN Label: S_ATA1, S_ATA2
CN Type:
7-pin SATA drive connectors
CN Location:
See
Figure 3-21
