KINO-DQM871 Mini-ITX SBC
Page 38

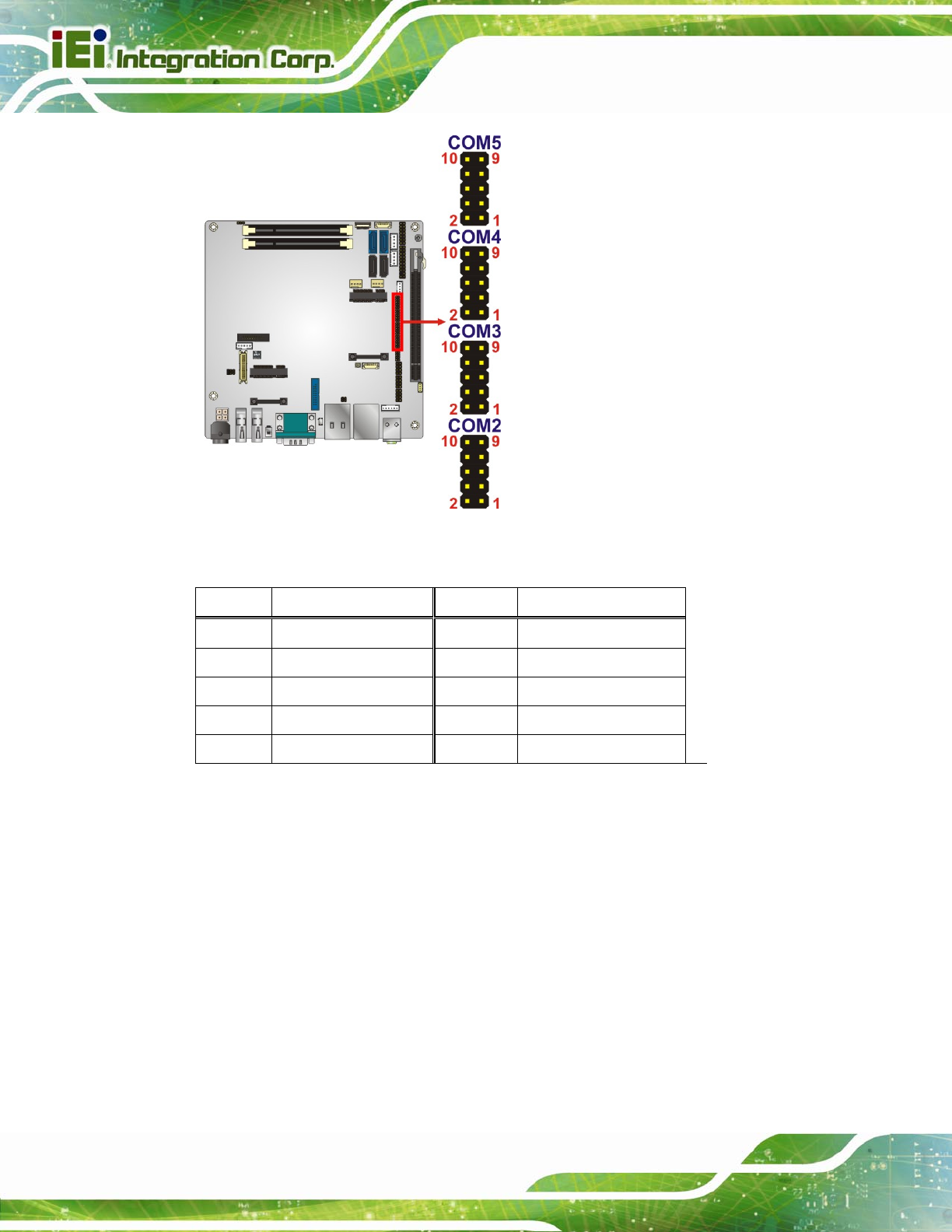

Figure 3-19: RS-232 Serial Port Connector Location
Pin Description Pin Description
1 -NDCD 2 -NDSR
3 NSIN 4 -NRTS
5 NSOUT 6 -NCTS
7 -NDTR 8 -XRI
9 GND 10 GND
Table 3-20: Serial Port Connector Pinouts
3.2.19 RS-422/485 Serial Port Connector (COM6)
CN Label: COM6
CN Type:
4-pin wafer
CN Location:
See
Figure 3-20
CN Pinouts:
See
Table 3-21
This connector provides RS-422 or RS-485 communications.
