KINO-DQM871 Mini-ITX SBC
Page 36
Pin Description Pin Description
Pin Description Pin Description
B21 GND B42 HSOn(6) B63 HSOn(11)
Table 3-18: PCIe x16 Side B Pinouts
3.2.16 Power Button (On-board)
CN Label: PWR_SW1
CN Type:
Push button
CN Location:
See
Figure 3-17
Push the on-board power button to power on the KINO-DQM871.

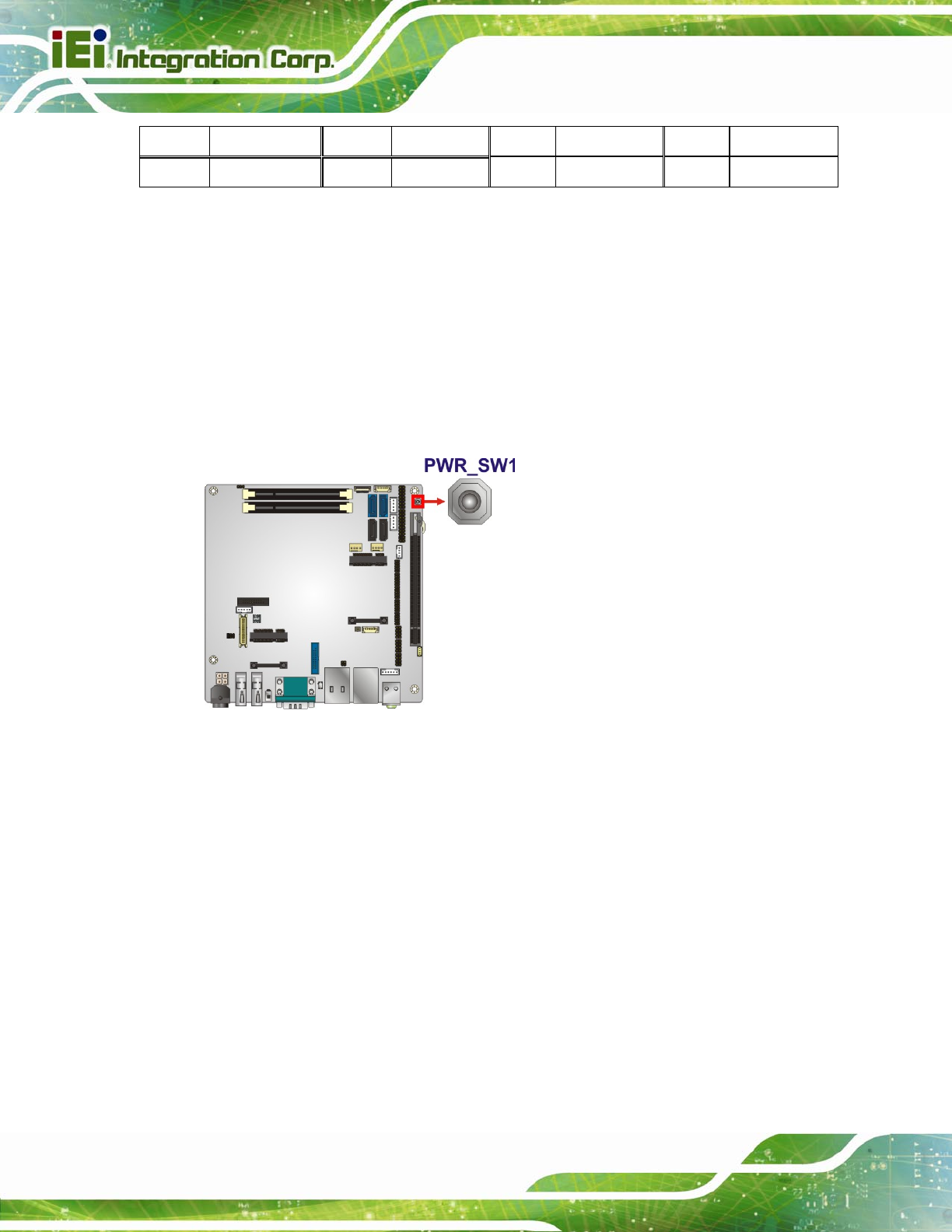

Figure 3-17: On-board Power Button Location
3.2.17 Power Connector (12V)
CN Label: PWR2
CN Type:
4-pin connector
CN Location:
See
Figure 3-18
CN Pinouts:
See
Table 3-19
The power connector is connected to an external power supply and supports 12V power
input. Power is provided to the system, from the power supply through this connector.
